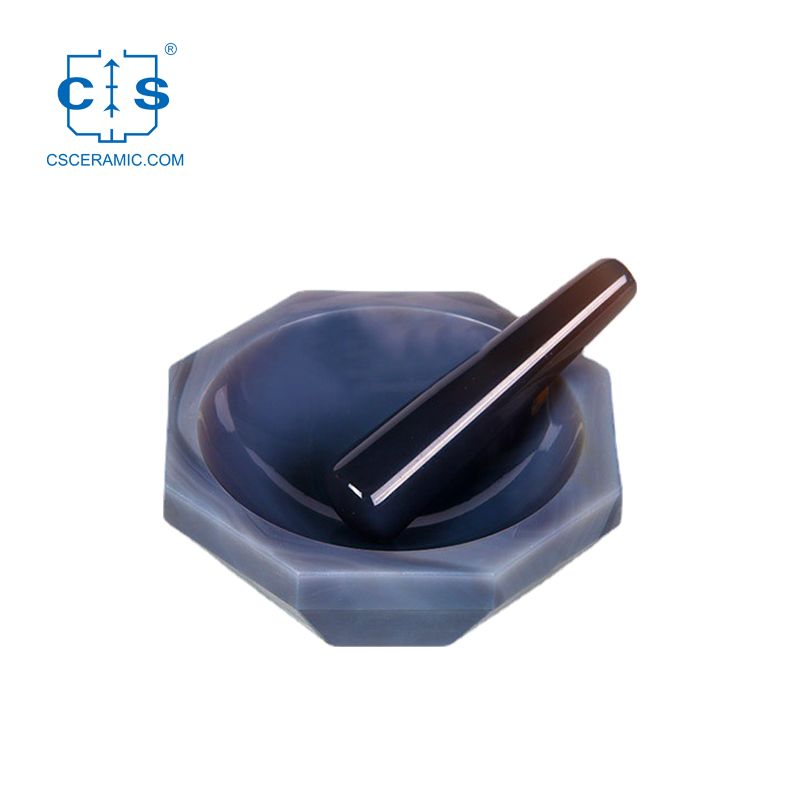

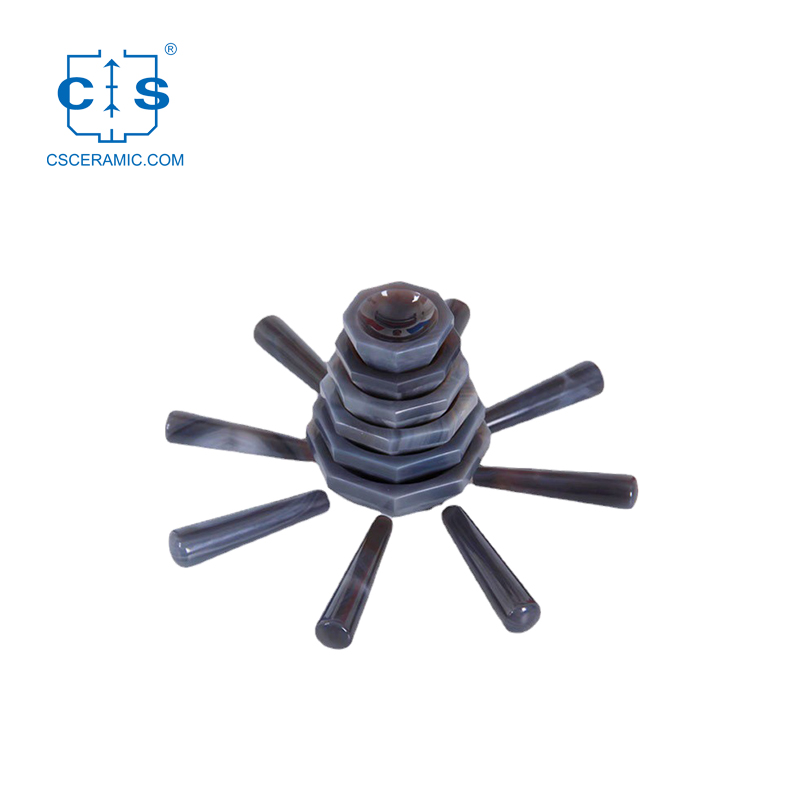

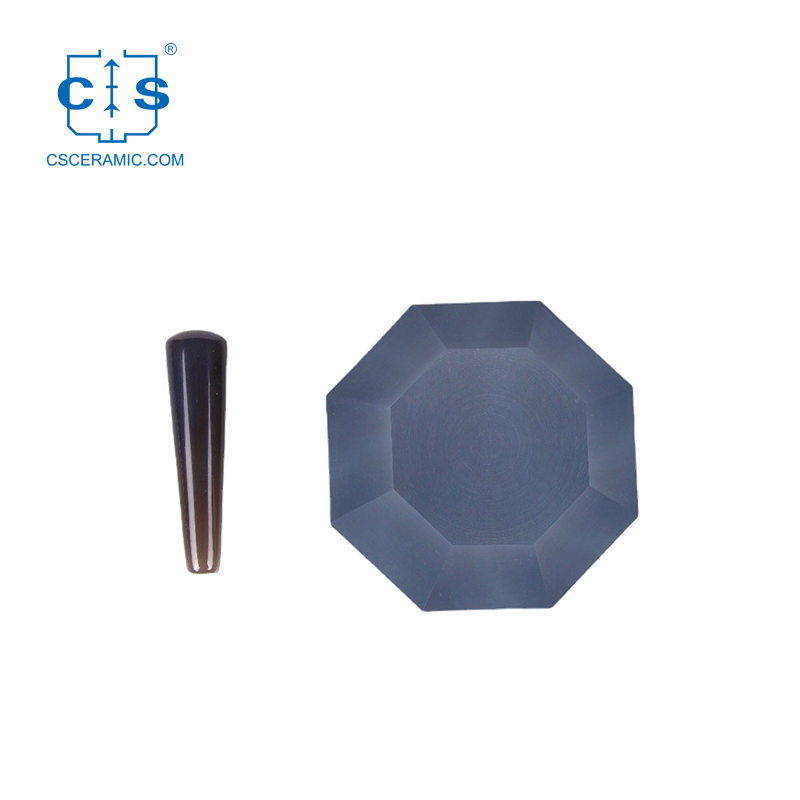

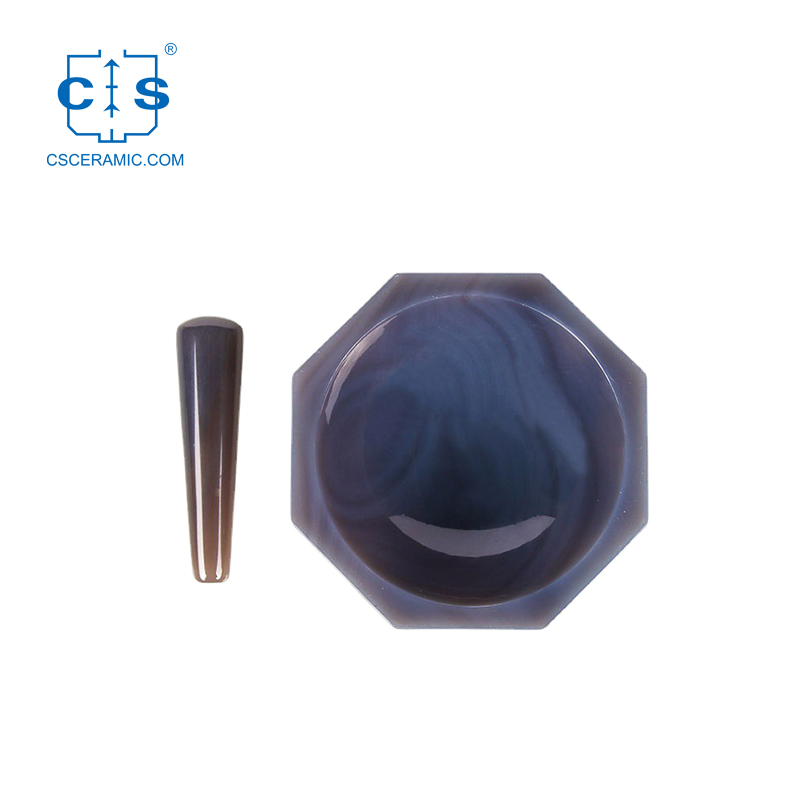

Agate Mortars & Pestles(>99.9% SiO2) are ideal for grinding and crushing solid samples into fine powders. These mortars and pestles can be utilized in a wide variety of laboratory environments.
item no. :
CS-MN-64Size : Full size
Material : SiO2
Product Item: Agate Mortars with Pestle, Diameter 40 to 270 mm
CS Supplies guarantees high quality and the best price on the market. And provide both standard and custom-made products and solutions to meet customer-specific requirements.
Features:
1. Mohs Hardness: ~7
2. High density increases general cleanliness and decreases the risk of cross-contamination of materials
3. Highly resistant to all solvents and acids (with the exception of HF)
4. Highly polished material, smooth surface, and easy to clean
5. Highly cost-effective, low wear and long lifetime
6. High specific gravity, high grinding efficiency
Application:
1. Laboratory environments
2. Biological research
3. Chemical industry
4. Pharmaceutical industry
Description:
| Item |
Agate Mortars & Pestle Set |
|
Material |
>99.9% SiO2 |
|
Business Type |
Manufacturer |
|
Notes for Using |
* The temperature limit of ±100°C to prevent sudden cooling and heating. * Prohibited to contact with hydrofluoric acid. * Prohibited to heat and do not dry in an oven. * The large crystal samples must be crushed and knocked to be small one before put it into an agate mortar for grinding. * The substances with excessive hardness and coarse particles, it is better not to grind them in agate to avoid scratching the surface. * The bowl should be placed on an object that is not easy to slide When grinding and the pestle remains vertical. * It's dangous to grind explosive substances which only can be crushed lightly. * To the corrosive sibstances, a thick paper or plastic sheet should be covered on the surface of the bowl, and then a pestle should be inserted into the central hole before grinding. * The weight of solids contained does not exceed 1/3 of its volume. * The mortar should be washed with water after use, or it can be washed with dilute hydrochloric acid first, and then rinsed with water. Grind with a pinch of salt and wash. |
|
Brand |
CSCERAMIC |
|
Shipping |
Express via DHL/EMS/FEDEX/ARAMEX |
|
Shipping time |
3-15 days |
|
Origin |
Liling city, Hunan province, China |
Available size details:
|
Specifications for Agate mortar |
|||||||
|
Item No. |
OD (mm) |
ID (mm) |
Depth (mm) |
Item No. |
OD (mm) |
ID (mm) |
Depth (mm) |
|
CS-MN-01 |
40 |
30 |
12 |
CS-MN-33 |
125 |
110 |
32 |
|
CS-MN-02 |
55 |
40 |
13 |
CS-MN-34 |
130 |
110 |
32 |
|
CS-MN-03 |
60 |
40 |
12 |
CS-MN-35 |
130 |
108 |
45 |
|
CS-MN-04 |
60 |
50 |
20 |
CS-MN-36 |
133 |
107 |
114 |
|
CS-MN-05 |
64 |
45 |
37 |
CS-MN-37 |
136 |
120 |
34 |
|
CS-MN-06 |
65 |
50 |
15 |
CS-MN-38 |
140 |
120 |
34 |
|
CS-MN-07 |
70 |
50 |
15 |
CS-MN-39 |
140 |
120 |
48 |
|
CS-MN-08 |
70 |
60 |
25 |
CS-MN-40 |
150 |
130 |
40 |
|
CS-MN-09 |
70 |
55 |
40 |
CS-MN-41 |
150 |
125 |
55 |
|
CS-MN-10 |
74 |
50 |
52 |
CS-MN-42 |
156 |
130 |
40 |
|
CS-MN-11 |
75 |
60 |
18 |
CS-MN-43 |
156 |
130 |
155 |
|
CS-MN-12 |
80 |
60 |
18 |
CS-MN-44 |
160 |
140 |
45 |
|
CS-MN-13 |
80 |
65 |
30 |
CS-MN-45 |
160 |
140 |
45 |
|
CS-MN-14 |
80 |
65 |
40 |
CS-MN-46 |
165 |
140 |
180 |
|
CS-MN-15 |
85 |
70 |
21 |
CS-MN-47 |
167 |
137 |
103 |
|
CS-MN-16 |
90 |
70 |
22 |
CS-MN-48 |
170 |
150 |
50 |
|
CS-MN-17 |
90 |
75 |
33 |
CS-MN-49 |
170 |
150 |
50 |
|
CS-MN-18 |
90 |
55 |
42 |
CS-MN-50 |
180 |
160 |
55 |
|
CS-MN-19 |
90 |
62 |
55 |
CS-MN-51 |
180 |
160 |
55 |
|
CS-MN-20 |
92 |
71 |
70 |
CS-MN-52 |
190 |
170 |
55 |
|
CS-MN-21 |
95 |
80 |
24 |
CS-MN-53 |
190 |
170 |
55 |
|
CS-MN-22 |
100 |
80 |
24 |
CS-MN-54 |
200 |
180 |
60 |
|
CS-MN-23 |
100 |
80 |
37 |
CS-MN-55 |
200 |
180 |
60 |
|
CS-MN-24 |
100 |
75 |
70 |
CS-MN-56 |
210 |
190 |
60 |
|
CS-MN-25 |
104 |
82 |
80 |
CS-MN-57 |
210 |
190 |
65 |
|
CS-MN-26 |
104 |
83 |
90 |
CS-MN-58 |
220 |
200 |
65 |
|
CS-MN-27 |
105 |
90 |
27 |
CS-MN-59 |
220 |
200 |
70 |
|
CS-MN-28 |
110 |
90 |
28 |
CS-MN-60 |
230 |
210 |
65 |
|
CS-MN-29 |
110 |
90 |
40 |
CS-MN-61 |
240 |
220 |
68 |
|
CS-MN-30 |
115 |
100 |
30 |
CS-MN-62 |
250 |
230 |
70 |
|
CS-MN-31 |
120 |
100 |
30 |
CS-MN-63 |
260 |
240 |
73 |
|
CS-MN-32 |
120 |
100 |
42 |
CS-MN-64 |
270 |
250 |
75 |
|

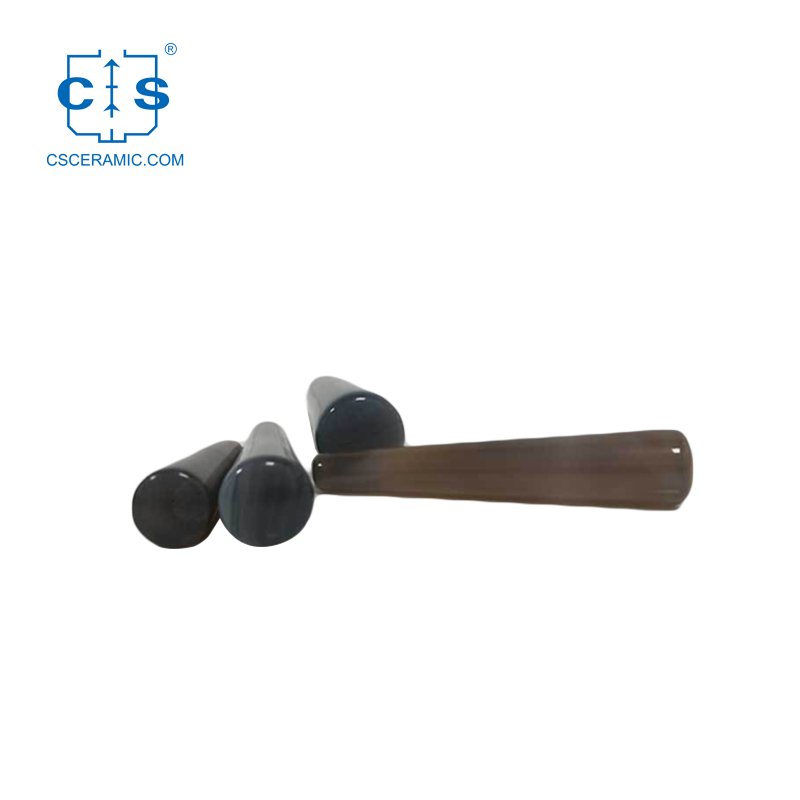

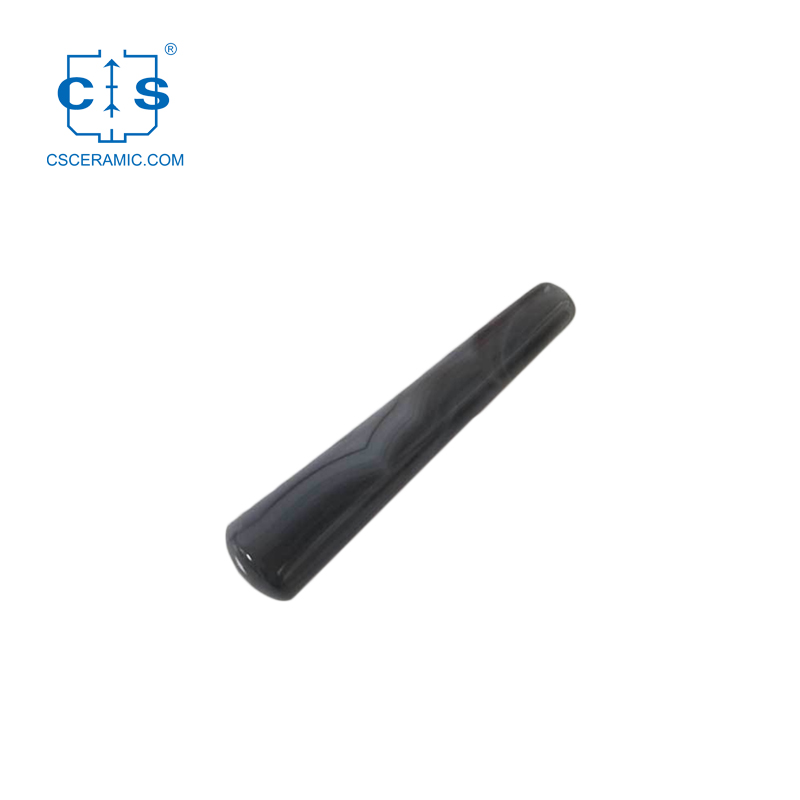

Specifications for Agate Pestle |
|||||||
|
Item No. |
ID for matching mortar (mm) |
Length (mm) |
Diameter (mm) |
Item No. |
ID for matching mortar (mm) |
Length (mm) |
Diameter (mm) |
|
CS-MP-Φ4cm |
30 |
40 |
18 |
CS-MP-Φ13cm |
130 |
130 |
27 |
|
CS-MP-Φ4cm |
30 |
40 |
18 |
CS-MP-Φ14cm |
130 |
140 |
27 |
|
CS-MP-Φ4cm |
40 |
40 |
18 |
CS-MP-Φ14cm |
140 |
140 |
27 |
|
CS-MP-Φ5cm |
40 |
50 |
18 |
CS-MP-Φ15cm |
140 |
150 |
28 |
|
CS-MP-Φ5cm |
50 |
50 |
18 |
CS-MP-Φ15cm |
150 |
150 |
28 |
|
CS-MP-Φ6cm |
50 |
60 |
19 |
CS-MP-Φ16cm |
150 |
160 |
30 |
|
CS-MP-Φ6cm |
60 |
60 |
19 |
CS-MP-Φ16cm |
160 |
160 |
30 |
|
CS-MP-Φ7cm |
60 |
70 |
20 |
CS-MP-Φ17cm |
160 |
170 |
30 |
|
CS-MP-Φ7cm |
70 |
70 |
20 |
CS-MP-Φ17cm |
170 |
170 |
30 |
|
CS-MP-Φ8cm |
70 |
80 |
22 |
CS-MP-Φ18cm |
170 |
180 |
32 |
|
CS-MP-Φ8cm |
80 |
80 |
22 |
CS-MP-Φ18cm |
180 |
180 |
32 |
|
CS-MP-Φ9cm |
80 |
90 |
22 |
CS-MP-Φ19cm |
180 |
190 |
35 |
|
CS-MP-Φ9cm |
90 |
90 |
22 |
CS-MP-Φ19cm |
190 |
190 |
35 |
|
CS-MP-Φ10cm |
90 |
100 |
24 |
CS-MP-Φ20cm |
190 |
200 |
38 |
|
CS-MP-Φ10cm |
100 |
100 |
24 |
CS-MP-Φ20cm |
200 |
200 |
38 |
|
CS-MP-Φ11cm |
100 |
110 |
25 |
CS-MP-Φ20cm |
210 |
200 |
38 |
|
CS-MP-Φ11cm |
110 |
110 |
25 |
CS-MP-Φ20cm |
220 |
200 |
38 |
|
CS-MP-Φ12cm |
110 |
120 |
27 |
CS-MP-Φ20cm |
230 |
200 |
38 |
|
CS-MP-Φ12cm |
120 |
120 |
27 |
CS-MP-Φ20cm |
240 |
200 |
38 |
|
CS-MP-Φ13cm |
120 |
130 |
27 |
CS-MP-Φ20cm |
250 |
200 |
38 |
Special offer: Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
