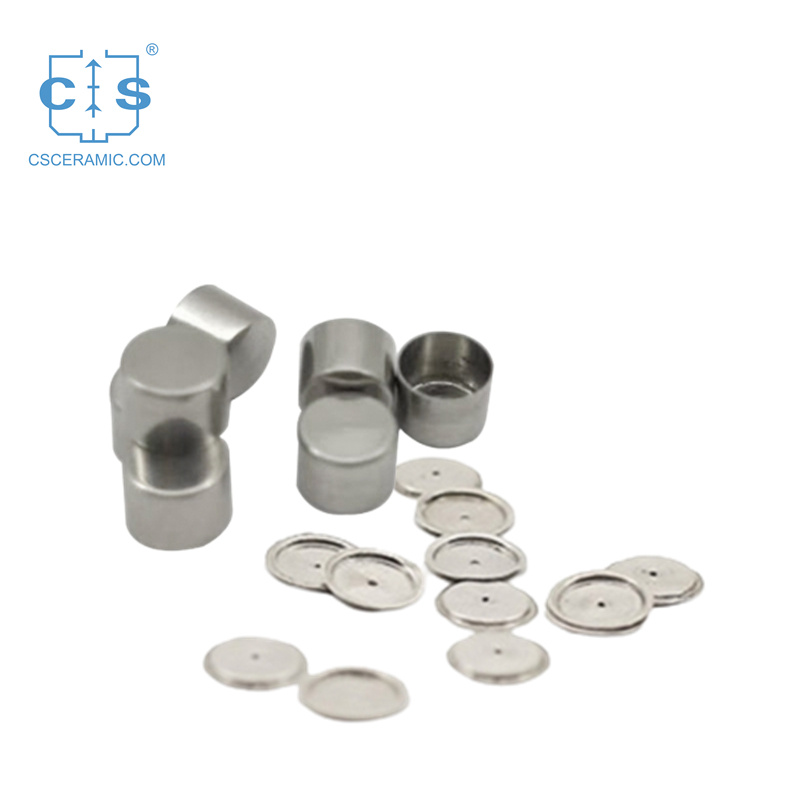

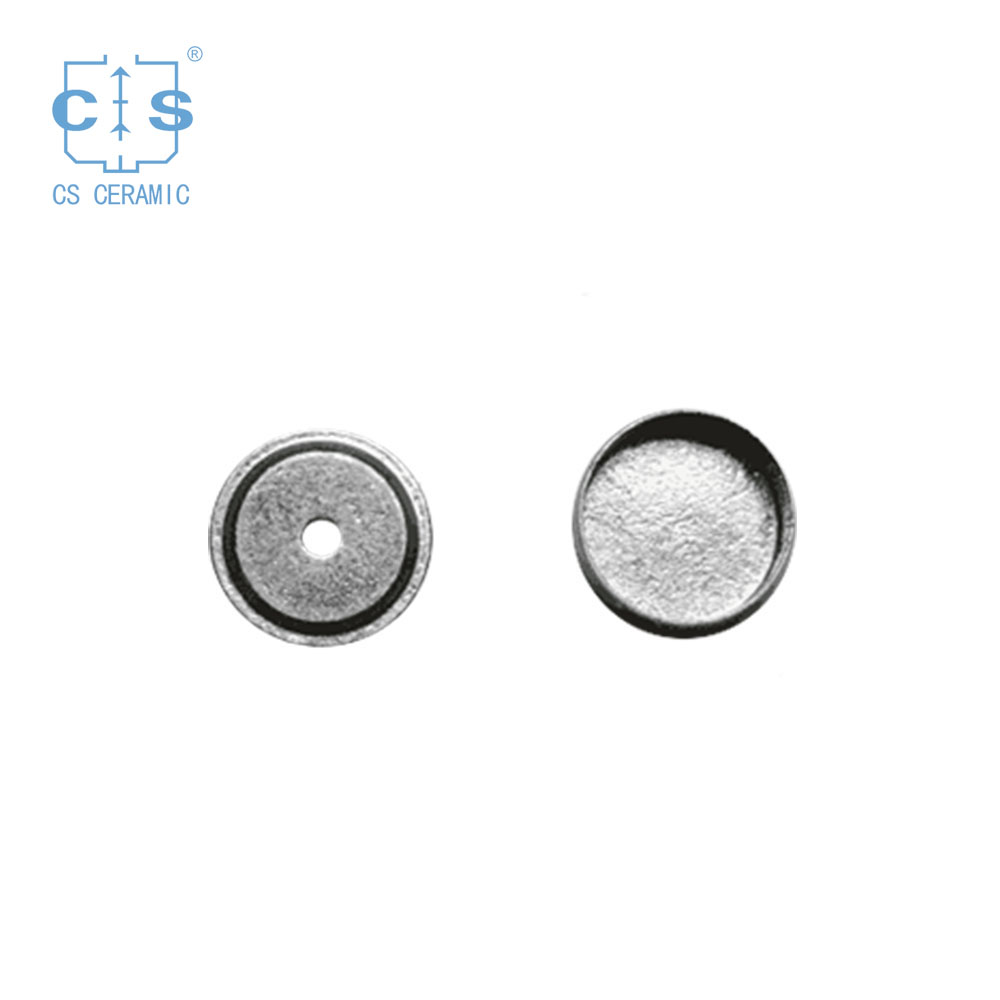

30ul Platinum crucible small with lid equivalent to ME-51140842 for Mettler toledo

ME-51140842 30ul Platinum crucible for Mettler DSC and TGA measurements. Manufacturer for Mettler Toledo crucibles and sample pans..More THERMAL ANALYSIS CONSUMABLES, DSC crucibles are supplied.

item no. :
CS-MB-021-1
Suitable for : Mettler
Material : Platinum
Part NO : ME-51140842

contact now catalogue

description

Product Item: 30ul Platinum crucible small with lid equivalent to ME-51140842 for Mettler toledo

Item info :

Type	PT Crucible for DSC/TGA/sample robot
Suitable for	Mettler ME-51140842
Size	30ul other Capacity are available : 70ul Platinum crucible medium with lid ME-51119654 ；150 ul Platinum crucible Large without pin with lid ME-00024126 ； 900 ul Platinum crucible Large without pin with lid CS-MB-021-5
Material	Platinum other Material are available : 30ul Alumina crucible with lid ME-51140843 ， 30ul Zirconia crucible with lid CS-MA-013-4 ， 30ul Graphite Sample Pan with lid CS-MASM-004-1， 30ul Sapphire crucible with lid CS-MM-023； Copper pan with lid，Gold crucible with lid
QTY/PKG	4PCS/BOX
Matching disk	sapphire disk (00017759)
Original	MADE IN CHINA

Application:

Platinum crucibles are mainly used for TGA or DSC measurements at temperatures above 640 °C. SDTA and DSC curves measured with platinum crucibles are usually better than those obtained using crucibles made of alumina, which has a poorer thermal conductivity.

Usage:

They can also be reused. After mechanical cleaning store them, if need be, in water (oreven in 10% hydrochloric acid) because many salts are soluble in water. Oxides form chlorides in hydrochloric acid, which can then be removed by rinsing. After drying, heat the crucibles to red heat to ensure that no weight loss occurs when they are used.

Warning:

Molten metals form alloys with platinum very easily, which can result in a hole being formed in the bottom of the crucible. And soot (or carbon black) is a so-called platinum poison in a non-oxidizing atmosphere. In the 1600 °C furnace, a crucible can stick to the crucible holder, which is also made of platinum. This can be prevented by placing a sapphire disk (00017759) on the crucible holder.

Shipping: We do international shipping for clients.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
