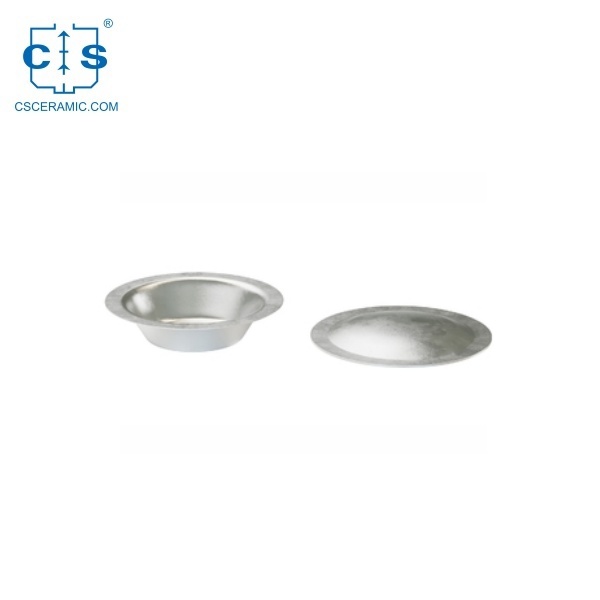

Mettler Aluminum crucible sample pans ME-30085850

25μl Aluminum pan with lid for Mettler Toledo ME 30085850

ME-30085850 Aluminum crucibles sample pans for Mettler DSC and TGA measurements. Thermal Analyzer Sample Pan for

thermogravimetric analyzer. Manufacturer for Mettler Toledo crucibles and sample pans.

item no. :
CS-MA-011-3
Suitable for : Mettler
Material : Aluminum
Part NO : ME-30085850

contact now catalogue

description

25μl Aluminum pan with lid for Mettler Toledo ME 30085850

Item info

Type	Sample pan /crucible with lid
Suitable for	Mettler
Part NO	ME-30085850
Volume μL	25 μL (The 25 μL pan is the only crucible with a conical shape. Its contact area is smaller than that of the standard 40 uL crucibles.)
Plunger and Die SET	A2(Crucible sealing press) ME-119410
Lid	With Standard lids（Three lid types can be combined with the 40 μL pans: standard lids, lids for piercing by the robot, and lids with a prepierced 50 μm hole ME-51140832.）
Material	Aluminum
Max range	Room temperature to 640℃，Maximum Pressure 0.2 MPa
QTY/PKG	100PCS/BOX ; 400 PCS/BOX (Both available)
Brand	CS CERAMIC
Original	MADE IN CHINA

Features

The 25 uL aluminum crucible is optimized for enthalpy measurements which aim to achieve the best possible reproducibility. The flat base with a diameter of 4 mm and the crucible height of 1.6 mm ensure that the temperature gradients are kept as low as possible.

The crucible can be hermetically sealed to suppress endothermic evaporation, vaporization or sublimation when carrying out DSC measurements on volatile substances. The maximum permissible pressure is 0.2 MPa.

Notice

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.

Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.

Shipping

We do international shipping for clients.

Special offer

Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
