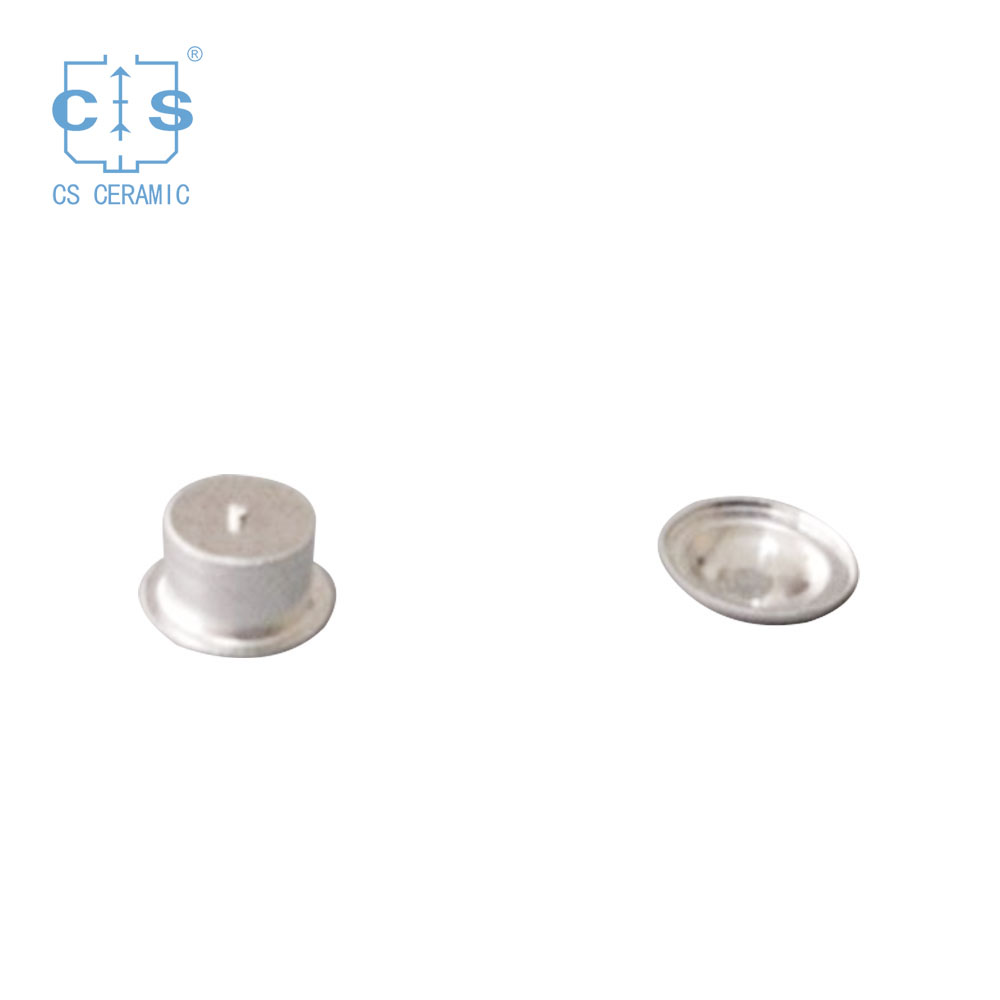

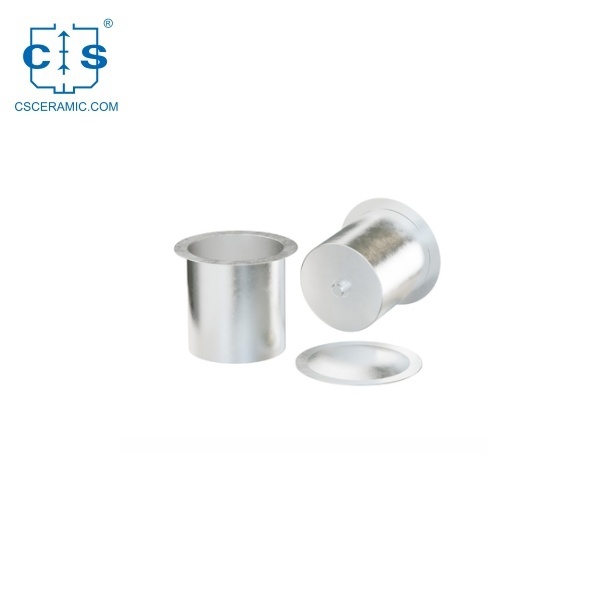

Mettler Aluminum crucible sample pans ME-00027811

160μl Aluminum crucible large with pin equivalent to ME-00027811 for Mettler Toledo DSC measurements

ME-00027811, a very large crucible, which is used for DSC measurements of samples that exhibit very weak effects.

item no. :
CS-MM-018-1
Suitable for : Mettler
Material : Aluminum
Part NO : ME-00027811

contact now catalogue

description

Product Item: 160μl Aluminum crucible large with pin equivalent to ME-00027811 for Mettler Toledo DSC measurements

Item info :

Type	Sample pan /crucible
Suitable for	Mettler DSC
Part NO	ME-00027811
Volume μL	160 μL
Pin/lid	With
Sealing tool	Crucible sealing press ME-0011941 (Die and plunger. A2)
Material	Aluminum
Temperature range	Room temperature to 600℃
QTY/PKG	100PCS/BOX ; 400 PCS/BOX (Both available)
Function Introduction	The perfect aluminum crucible for samples with a weak signal that require a high sample mass. Excellent Thermal Conductivity The flat base ensures perfect thermal contact. Pans with pin are recommended if reproducibility is critical. They cannot be used with a robot. No usage of furnace expander required The crucible can be used without furnace expander if the lid is reversed (maximum volume reduced to approx. 150 μL).
Original	MADE IN CHINA

Usage :

This large crucible is used for DSC measurements of samples that exhibit very weak effects. Temperature gradients within the sample are to be expected because of the height of the crucible, which is the reason why measurement peaks are somewhat broader. For the same reason, heating rates of more than 10 K/min should not be used.

Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.

Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.

Shipping: We do international shipping for clients.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
