item no. :
CS-ZVO-001Material : ZrO2

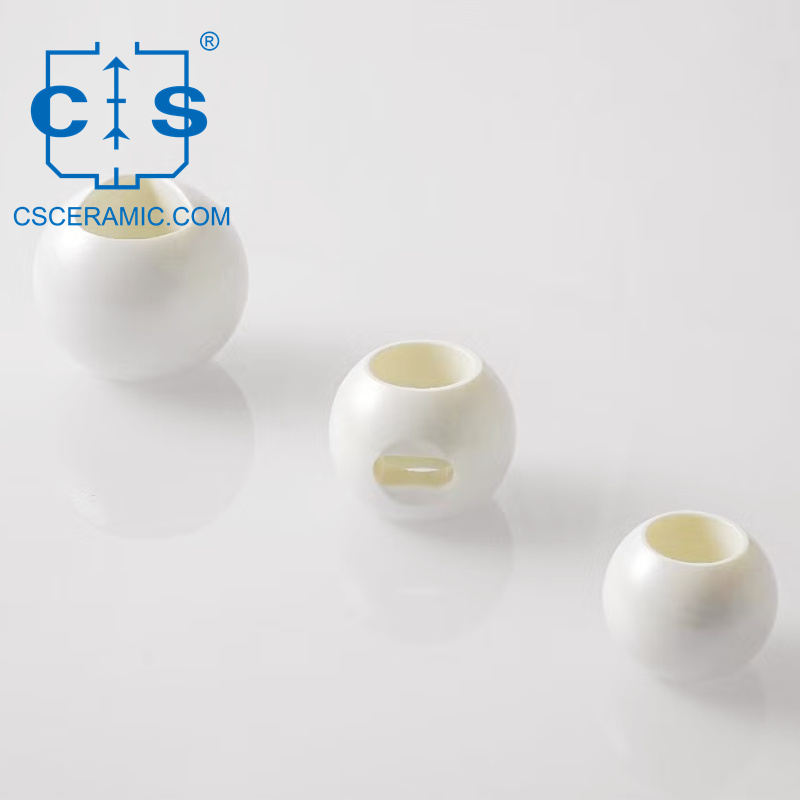

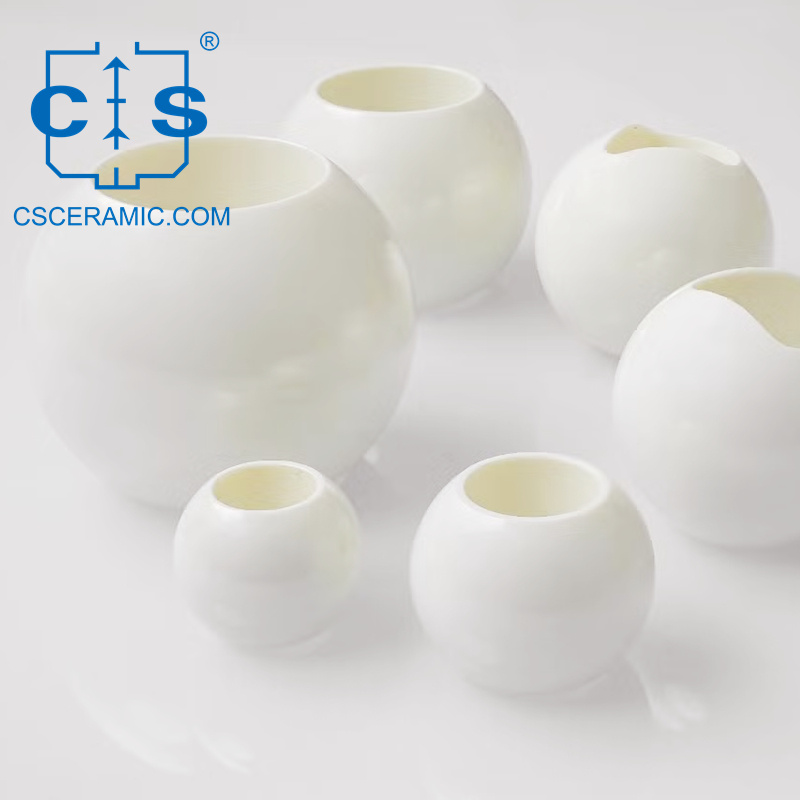

ZrO2 lining offers high hardness (HRA88+), excellent wear resistance, and chemical stability against most acids and alkalis. The ceramic material's self-cleaning and self-lubricating properties ensure leak-free sealing and smooth switching, reducing valve stem torque. With a simple structure, small size, and low fluid resistance, it's easy to operate and control, rotating 90 degrees from fully open to fully closed.
Suitable for diameters from mm to meters and pressures from vacuum to high, zirconia ceramic ball valves are widely used in machinery, petrochemicals, pharmaceuticals, food processing, power plants, water supply, and metal smelting.
Specification of Zirconium Oxide Lined Ball Valve
1. Blocking ball material: Zirconia ceramic
2. Valve size: DN15-DN300
3. Working temperature: -40~450℃
4. Max. working pressure: 1.6MPa
5. Connection: Flange
6. Driving force: pneumatic or manual driving
*Note: For more information please contact CSCERAMIC
Zirconia Ceramic Lined O Type Ball Valve
Item NO.
DN
PH (Mpa)
D (mm)
D1 (mm)
D2 (mm)
C (mm)
H (mm)
n-d
CS-ZVO-001
15
1.6
130
95
45
14
180
4-∅14
CS-ZVO-002
20
1.6
140
105
55
16
190
4-∅14
CS-ZVO-003
25
1.6
150
115
65
16
220
4-∅14
CS-ZVO-004
32
1.6
165
135
75
18
235
4-∅18
CS-ZVO-005
40
1.6
180
145
85
18
255
4-∅18
CS-ZVO-006
50
1.6
203
160
100
20
270
4-∅18
CS-ZVO-007
65
1.6
220
180
120
20
310
4-∅18
CS-ZVO-008
80
1.6
250
195
135
20
370
8-∅18
CS-ZVO-009
100
1.6
280
215
155
22
430
8-∅18
CS-ZVO-010
125
1.6
320
245
185
22
510
8-∅18
CS-ZVO-011
150
1.6
394
280
210
24
590
8-∅23
CS-ZVO-012
200
1.6
457
335
265
24
750
8-∅23
CS-ZVO-013
250
1.6
533
506
320
26
850
12-∅23
CS-ZVO-014
300
1.6
610
460
375
30
920
12-∅25
| Zirconia Ceramic Lined Eccentric Half Ball Valve | ||||||||||
| Item NO. | DN | PN (Mpa) | H (mm) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | n-d | C (mm) | F (mm) |
| CS-CVP-001 | 50 | 1.6 | 230 | 124 | 165 | 125 | 100 | 4-∅18 | 16 | 3 |
| CS-CVP-002 | 65 | 1.6 | 237 | 145 | 185 | 145 | 120 | 4-∅18 | 18 | 3 |
| CS-CVP-003 | 80 | 1.6 | 260 | 165 | 200 | 160 | 135 | 8-∅18 | 20 | 3 |
| CS-CVP-004 | 100 | 1.6 | 270 | 194 | 220 | 180 | 156 | 8-∅18 | 20 | 3 |
| CS-CVP-005 | 125 | 1.6 | 320 | 210 | 250 | 210 | 185 | 8-∅22 | 22 | 3 |
| CS-CVP-006 | 150 | 1.6 | 340 | 229 | 285 | 240 | 211 | 8-∅22 | 26 | 3 |
| CS-CVP-007 | 200 | 1.6 | 390 | 243 | 340 | 295 | 265 | 8-∅23 | 26 | 3 |
| CS-CVP-008 | 250 | 1.6 | 420 | 297 | 405 | 355 | 319 | 8-∅26 | 30 | 3 |
| CS-CVP-009 | 300 | 1.6 | 510 | 338 | 460 | 410 | 375 | 8-∅26 | 30 | 4 |
| Zirconia Ceramic Lined V Ball Control Valve | ||||||||||
| Item No. | DN | NPS | H (mm) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | n-d | b (mm) | f (mm) |
| CS-CVV-001 | 15 | 1 2" | 170 | 108 | 90 | 60.3 | 34.9 | 4-M12 | 11.6 | 2 |
| CS-CVV-002 | 20 | 3 /4" | 180 | 117 | 100 | 69.9 | 42.9 | 4-M12 | 13.2 | 2 |
| CS-CVV-003 | 25 | 1" | 185 | 127 | 110 | 79.4 | 50.8 | 4-M12 | 14.7 | 2 |
| CS-CVV-004 | 32 | 1-1/4" | 220 | 140 | 115 | 88.9 | 63.5 | 4-M12 | 16.3 | 2 |
| CS-CVV-005 | 40 | 1-1/2" | 230 | 165 | 125 | 98.4 | 73 | 4-M12 | 17.9 | 2 |
| CS-CVV-006 | 50 | 2" | 247 | 178 | 150 | 120.7 | 92.1 | 4-M16 | 19.5 | 2 |
| CS-CVV-007 | 65 | 2-1/2" | 270 | 190 | 180 | 139.7 | 104.8 | 4-M16 | 22.7 | 2 |
| CS-CVV-008 | 80 | 3" | 310 | 203 | 190 | 152.4 | 127 | 4-M16 | 24.3 | 2 |
| CS-CVV-009 | 100 | 4" | 355 | 229 | 230 | 190.5 | 139.7 | 4-M16 | 24.3 | 2 |
| CS-CVV-010 | 125 | 5" | 430 | 356 | 255 | 215.9 | 157.2 | 4-M20 | 24.3 | 2 |
| CS-CVV-011 | 150 | 6" | 490 | 394 | 280 | 241.3 | 185.7 | 4-M21 | 25.9 | 2 |
| CS-CVV-012 | 200 | 8" | 590 | 457 | 345 | 298.5 | 215.9 | 4-M22 | 29 | 2 |
Premium Zirconia Sleeve Corrosion Resistant for Chemical & Industrial Use
Designed for a wide range of industrial applications, zirconia ceramic sleeves are ideal for use in chemical engineering, metallurgy, pharmaceutical production, and power generation.
High Precision Zirconia Ceramic Mold Positioning Block
The Premium Zirconia Ceramic Locating Block is primarily utilized in mold positioning, enabling the swift and accurate establishment of positional relationships between workpieces, thereby ensuring precise and efficient mold processing.
High Strength Zirconia Ceramic Grinding Mortar & Pestle
Zirconia Mortars & Pestles are renowned for their exceptional strength, outstanding resistance to high temperatures, and unparalleled wear resistance. Thanks to these qualities, zirconia mortars and pestles are perfect for grinding solid substances into fine powders or crushing them into smaller particles.
High-Temp Y&Ca-Stabilized Zirconia Ceramic Refractory Plates
zirconia ceramic refractory plates come in two distinct series: yttrium-stabilized and calcium-stabilized, tailored to meet the specific needs of your application. Both series exhibit exceptional high-temperature resistance, withstanding temperatures up to 1600°C, and offering unmatched thermal shock resistance.
High-Temp Zirconia Ceramic Rollers for Flattening & Crushing
zirconia ceramic rollers are also suitable for roll crushers in the fragmentation of ore. Their robust construction and superior performance make them a trusted choice for industries that demand precision, durability, and reliability.
High-Temp Zirconia Ceramic Piston for Piston Pumps & Industrial Use
Primarily used in piston pumps, Zirconia ceramic pistons regulate the pressure and flow rate of fluids through efficient reciprocating motion.
ZrO2 Ceramic Shaft For Motors & Pumps
Featuring high hardness, wear resistance, mechanical strength, heat tolerance, corrosion resistance, and electrical insulation, ZrO2 ceramic shaft is ideal for motors, pumps, precision tools, medical devices, and chemical equipment.
ZrO2 Ceramic Fiber Ferrule - High Precision For Optical Connectors
ZrO2 ceramic fiber ferrule is a precision-crafted optical component made from hard, dimensionally accurate zirconia ceramic. It's primarily used in optical fiber connectors, attenuators, and stubs for precise positioning and connection in communication networks.
