laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :
CS-YHG-C1001Material : ZrO2
Extreme Heat Resistance: Zirconia ceramic refractory plates are engineered to withstand temperatures up to 1600°C, making them ideal for high-temperature applications. Their exceptional thermal shock resistance ensures durability and reliability in demanding environments.
Chemical Corrosion Resistance: These plates exhibit superior resistance to chemical corrosion, withstanding erosion from various metal oxides and non-metal oxide melts. They do not undergo chemical reactions or adhesion with sintered ceramic components, preserving their integrity and performance.
High Mechanical Strength: Zirconia ceramic refractory plates boast high mechanical strength and load-bearing capacity, allowing for reduced plate size and increased single-batch capacity in furnaces. This efficiency makes them a valuable asset in production processes.
Zirconia refractory plates are widely used as sintering plates for dielectric ceramics, powder metallurgy, chip capacitors, and ferrite magnetic materials. Their ability to prevent adhesion during the sintering process ensures product stability and high qualification rates, making them an essential component in manufacturing high-quality products.
Please provide drawings and parametric specifications for customization.
Machining Tolerance: ±0.1mm
| Zirconia Ceramic Refractory Flat Plate | |||
| Item no. |
Length x Width (mm) |
Thickness (mm) |
Remark |
| CS-YHG-C1001 | 75×75±0.8 | 3.5±0.2 | Suitable for sintering circular ceramic capacitors and magnetic materials. |
| CS-YHG-C1002 | 90×72±0.8 | 3.5±0.2 | |
| CS-YHG-C1003 | 98×85±0.8 | 3.5±0.2 | |
| CS-YHG-C1004 | 98×98±0.8 | 3.5±0.2 | |
| CS-YHG-C1005 | 100×75±0.8 | 3.5±0.2 | |
| CS-YHG-C1006 | 100×100±0.8 | 3.5 or 4.0±0.2 | |
| CS-YHG-C1007 | 106×75±0.8 | 3.5 or 4.0±0.2 | |
| CS-YHG-C1008 | 115×60±0.8 | 3.5 or 4.0±0.2 | |
| CS-YHG-C1009 | 140×140±1.0 | 4.0±0.3 | |
| CS-YHG-C1010 | 150×150±1.0 | 4.0±0.3 | |
| CS-YHG-C1011 | Φ95±0.8 | 3.5±0.2 | |
| CS-YHG-C1012 | Φ115±0.8 | 3.5±0.2 | |

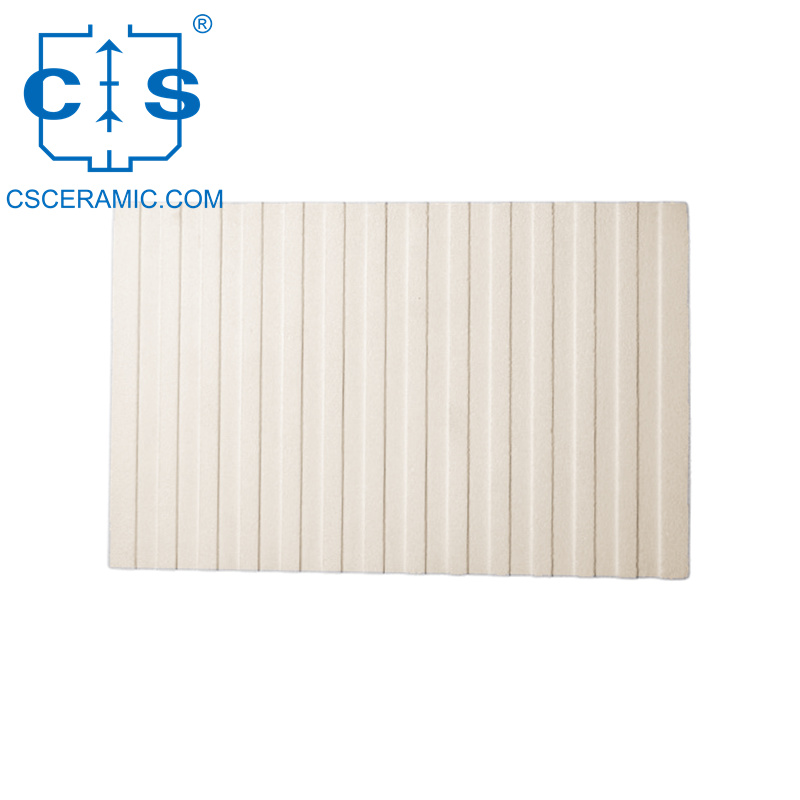

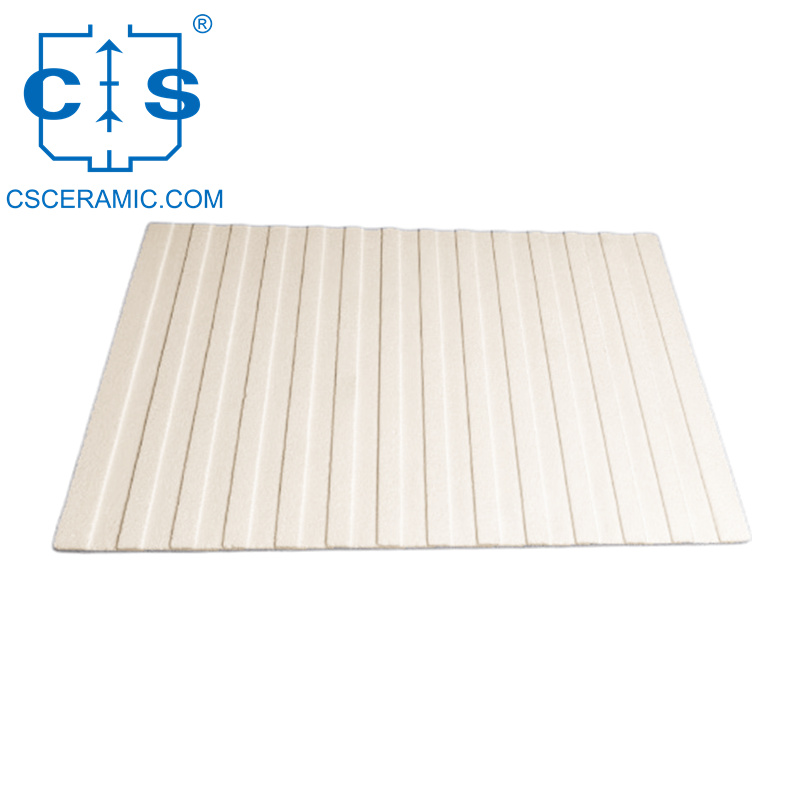

| Zirconia Ceramic Refractory Trough Plate | ||||
| Item no. |
Length x Width (mm) |
Thickness (mm) |
Height of Trough (mm) |
Remark |
| CS-YHG-C1013 | 75×75±0.8 | 3.5±0.3 | 4.5±0.3 | Smooth Zirconia Trough Plate: With a smooth surface, small pore diameter, high strength, and excellent thermal stability, it resists deformation at high temperatures. The trough structure facilitates airflow, making it suitable for high-temperature sintering of various ceramic capacitors, chip inductors, and other electronic components. |
| CS-YHG-C1014 | 100×100±0.8 | 5.0±0.3 | 10±0.3 | |
| CS-YHG-C1015 | 115×60±0.8 | 4.0±0.3 | 4.5±0.3 | |
| CS-YHG-C1016 | 115×60±0.8 | 4.0±0.3 | 5.5±0.3 | Rough Zirconia Trough Plate: Characterized by coarse particles, high porosity, and easy slurry absorption, it ensures a sufficient atmosphere for the sintering of low-frequency ceramic capacitors (MLCC). Its excellent thermal shock resistance and chemical stability guarantee a long service life. |
| CS-YHG-C1017 | 115×60±0.8 | 4.5±0.3 | 6.0±0.3 | |
| CS-YHG-C1018 | 140×70±1.0 | 5.0±0.3 | 8.0±0.3 | |
| CS-YHG-C1019 | 150×150±1.0 | 5.5±0.3 | 13±0.3 | |
Premium Zirconia Sleeve Corrosion Resistant for Chemical & Industrial Use
Designed for a wide range of industrial applications, zirconia ceramic sleeves are ideal for use in chemical engineering, metallurgy, pharmaceutical production, and power generation.
High Precision Zirconia Ceramic Mold Positioning Block
The Premium Zirconia Ceramic Locating Block is primarily utilized in mold positioning, enabling the swift and accurate establishment of positional relationships between workpieces, thereby ensuring precise and efficient mold processing.
High Strength Zirconia Ceramic Grinding Mortar & Pestle
Zirconia Mortars & Pestles are renowned for their exceptional strength, outstanding resistance to high temperatures, and unparalleled wear resistance. Thanks to these qualities, zirconia mortars and pestles are perfect for grinding solid substances into fine powders or crushing them into smaller particles.
High-Temp Zirconia Ceramic Rollers for Flattening & Crushing
zirconia ceramic rollers are also suitable for roll crushers in the fragmentation of ore. Their robust construction and superior performance make them a trusted choice for industries that demand precision, durability, and reliability.
High-Temp Zirconia Ceramic Piston for Piston Pumps & Industrial Use
Primarily used in piston pumps, Zirconia ceramic pistons regulate the pressure and flow rate of fluids through efficient reciprocating motion.
ZrO2 Ceramic Shaft For Motors & Pumps
Featuring high hardness, wear resistance, mechanical strength, heat tolerance, corrosion resistance, and electrical insulation, ZrO2 ceramic shaft is ideal for motors, pumps, precision tools, medical devices, and chemical equipment.
ZrO2 Ceramic Fiber Ferrule - High Precision For Optical Connectors
ZrO2 ceramic fiber ferrule is a precision-crafted optical component made from hard, dimensionally accurate zirconia ceramic. It's primarily used in optical fiber connectors, attenuators, and stubs for precise positioning and connection in communication networks.
ZrO2 Zirconia Bearing Balls High-Speed Ceramic Non-Magnetic Ball
ZrO2 zirconia ceramic bearing balls offer high strength, toughness, temperature resistance, corrosion resistance, and non-magnetic properties. Their self-lubricating capabilities make them ideal for environments requiring no lubricating medium pollution.
