High-Temp Zirconia Ceramic Bolts & Screws Premium Fasteners

Categories
Hot Products

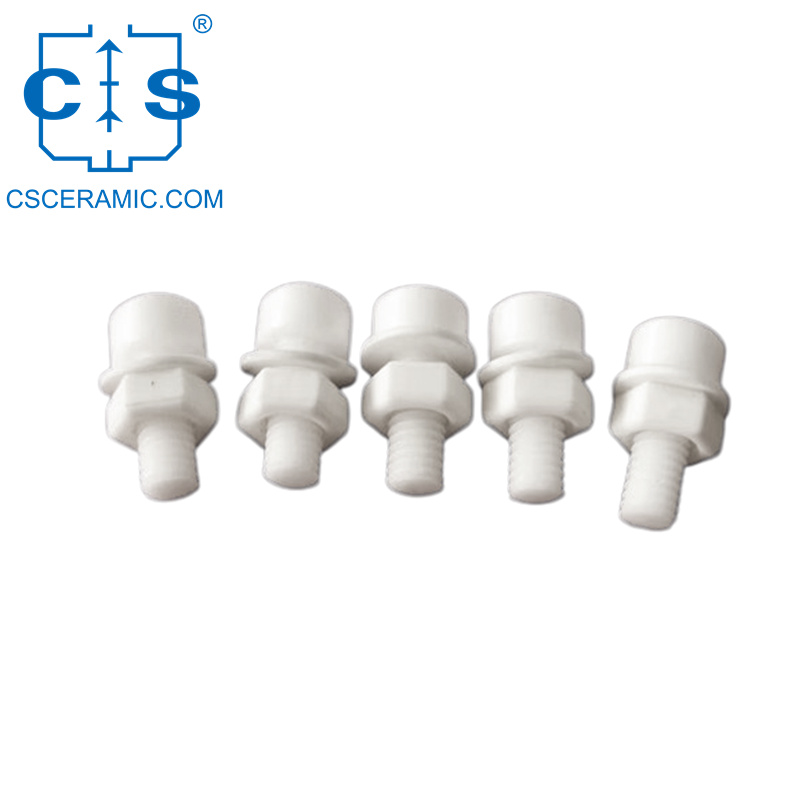

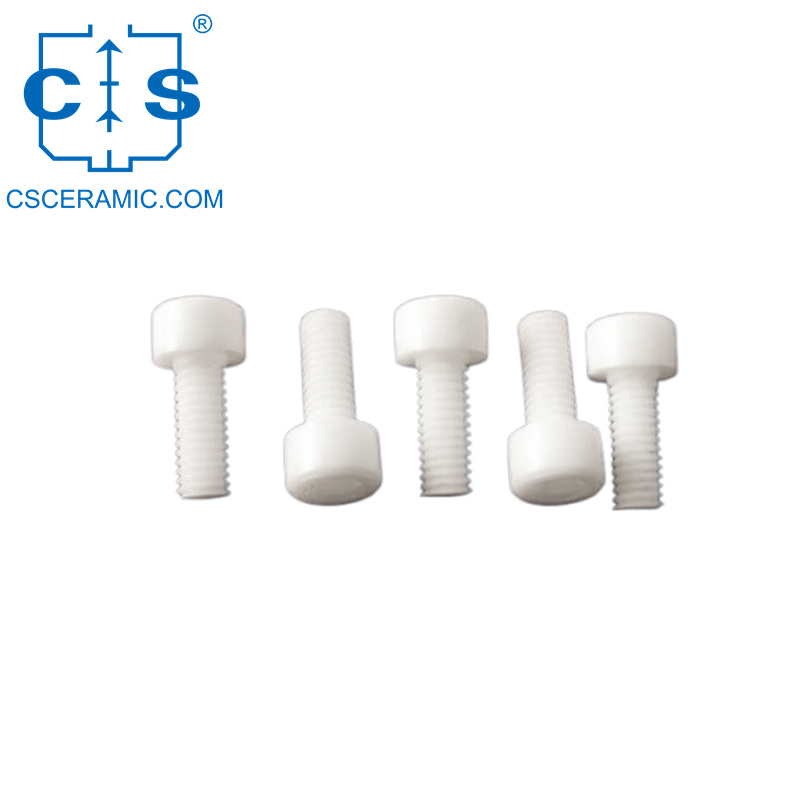

zirconia bolt and screw
High-Temp Zirconia Ceramic Bolts & Screws Premium Fasteners High-Temp Zirconia Ceramic Bolts & Screws Premium Fasteners High-Temp Zirconia Ceramic Bolts & Screws Premium Fasteners

High-Temp Zirconia Ceramic Bolts & Screws Premium Fasteners

Through meticulous shaping and rigorous high-temperature sintering processes, Zirconia bolts and screws are engineered to deliver exceptional mechanical strength, hardness, and wear resistance. Their high-temperature endurance and corrosion resistance make them stand out in the most demanding environments.

  • item no. :

    CS-YHG-LS001

  • Material : ZrO2

contact now catalogue
  • description

Properties of Zirconia Ceramic Bolt and Screw


  1. Exceptional Strength and Wear Resistance:
    • Zirconia ceramic bolts and screws exhibit remarkable tensile and torsional strength, combined with high hardness and excellent wear resistance.
    • Their wear capacity surpasses manganese steel by over 200 times, significantly extending their service life.
    • With a large elastic modulus, zirconia bolts undergo minimal deformation under stress compared to steel bolts.
  2. High-Temperature Resistance:
    • Zirconia bolts maintain high strength and hardness even at temperatures exceeding 1000°C, making them ideal for applications in high-temperature environments.
  3. Corrosion Resistance:
    • These bolts are highly corrosion-resistant, capable of enduring contact with various acids, bases, and chemical reagents.
    • They can operate for extended periods in high-humidity environments without rusting, ensuring reliability and durability.
  4. Electrical Insulation and Non-Magnetic Properties:
    • Zirconia ceramic bolts possess excellent electrical insulation, making them non-conductive and non-magnetic.
    • These properties meet the specific requirements of electrical, communication, and other devices, enhancing their versatility and applicability.






Applications of Zirconia Bolt and Screw


  • Zirconia ceramic bolts and screws find significant applications as fasteners in industries such as petrochemicals, marine equipment, electronics, aerospace, and communications.
  • Their excellent wear resistance, high-temperature endurance, corrosion resistance, electrical insulation, and non-magnetic properties make them the perfect choice for demanding applications requiring reliability and performance.







Size Chart of Zirconia Ceramic Bolt and Screw

Please provide drawings and parametric specifications for customization.

Item NO. M2 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS001 Flat Head with Single Slot Half-thread 22 1.4 3.8
CS-YHG-LS002 Internal Hexagon 14 1.9 3.8
CS-YHG-LS003 Flat Head with Single Slot 10 1.4 3.8
CS-YHG-LS004 Cross-head Self-tapping Thread 8 1.6 3.5
CS-YHG-LS005 Round Head with Cross-slot 8 1.5 3.5
CS-YHG-LS006 External hHexagon 6 1.6 3.9
CS-YHG-LS007 Countersunk Head with Cross-slot 6 / 4.2

Item NO. M3 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS008 External hHexagon 10 3 5.5
CS-YHG-LS009 Internal Hexagon 330 3 5.4
CS-YHG-LS010 Internal Hexagon 20/25 3 5.4
CS-YHG-LS011 Internal Hexagon 15 3 5.4
CS-YHG-LS012 Internal Hexagon 10 3 5.4
CS-YHG-LS013 Internal Hexagon 8 3 5.4
CS-YHG-LS014 Countersunk Head with Cross-slot 15 / 5.2
CS-YHG-LS015 Countersunk Head with Cross-slot 6 / 5.6
CS-YHG-LS016 Round Head with Cross-slot 6.5 2.7 5.5

Item NO. M4 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS017 External hHexagon 20 3.2 6.8
CS-YHG-LS018 External hHexagon 15 3.3 6.8
CS-YHG-LS019 External hHexagon 10 3.2 6.8
CS-YHG-LS020 Internal Hexagon 30/40/50 / /
CS-YHG-LS021 Internal Hexagon 25 4 7
CS-YHG-LS022 Internal Hexagon 20 4.1 6.9
CS-YHG-LS023 Internal Hexagon 15 4.1 6.8
CS-YHG-LS024 Internal Hexagon 10 3.2 6.8
CS-YHG-LS025 Countersunk Head with Internal Hexagon 25 / 8.5
CS-YHG-LS026 Countersunk Head with Cross-slot 12 / 8.4
CS-YHG-LS027 Round Head with Cross-slot 8 2.9 7
CS-YHG-LS028 Round Head with Cross-slot 5 2.1 9.3
CS-YHG-LS029 Round Head with Single Slot and Hole 3 4.5 8.9

Item NO. M5 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS029 External hHexagon 25 3.5 8
CS-YHG-LS030 External hHexagon 20 3.6 8
CS-YHG-LS031 External hHexagon 15 3.6 8
CS-YHG-LS032 External hHexagon 10/12 3.6 7.6
CS-YHG-LS033 External hHexagon 5 3.6 8
CS-YHG-LS034 Internal Hexagon 35 4.7 7.8
CS-YHG-LS035 Internal Hexagon 25 4.9 8.1
CS-YHG-LS036 Internal Hexagon 20 4.9 8.1
CS-YHG-LS037 Internal Hexagon 15 4.9 8.1
CS-YHG-LS038 Internal Hexagon 10/12 4.9 8.1
CS-YHG-LS039 Internal Hexagon 5 4.9 8.1
CS-YHG-LS040 Round Head with Cross-slot 25 / 8.6
CS-YHG-LS041 Round Head with Cross-slot 20 / 8.5
CS-YHG-LS042 Round Head with Cross-slot 12 / 8.5
CS-YHG-LS043 Round Head with Internal Hexagon 25 2.6 9.3
CS-YHG-LS044 Round Head with Internal Hexagon 20 2.8 9.4
CS-YHG-LS045 Round Head with Internal Hexagon 12 2.8 8.6
CS-YHG-LS046 Round Head with Single Slot 10 3.4 7.9
CS-YHG-LS047 Countersunk Head with Cross-slot 10 / 8.9
CS-YHG-LS048 Round Head with Single Slot and Hole 6/15 3 10
CS-YHG-LS049 Blind Head with Internal Hexagon 10 / /
CS-YHG-LS050 Blind Head with Internal Hexagon 6 / /

Item NO. M6 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS051 External hHexagon 55 5.2 9.7
CS-YHG-LS052 External hHexagon 40 4.3 9.6
CS-YHG-LS053 Internal Hexagon 40 5.8 9.8
CS-YHG-LS054 Internal Hexagon 25 5.9 10
CS-YHG-LS055 Internal Hexagon 16 5.9 10
CS-YHG-LS056 Countersunk Head with Cross-slot 40 / 12
CS-YHG-LS057 External Hexagon with Single Slot 25 3.9 9.8
CS-YHG-LS058 Round Head with Single Slot and Hole 20 4.8 10
CS-YHG-LS059 Countersunk Head with Internal Hexagon 15 / 9.8

Item NO. M8 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS060 External hHexagon 70 5.6 14
CS-YHG-LS061 External hHexagon 50 4.5 11.7
CS-YHG-LS062 External hHexagon 35 5.3 12.9
CS-YHG-LS063 External hHexagon 25 5.3 12.9
CS-YHG-LS064 Internal Hexagon 50 7.6 12.3
CS-YHG-LS065 Internal Hexagon 35 7.9 12.3
CS-YHG-LS066 Flat Head with Internal Hexagon 30 / 13.8
CS-YHG-LS067 Countersunk Head with Cross-slot 20 / 14.2

Item NO. M10 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS068 External hHexagon 70 7 16.8
CS-YHG-LS069 External hHexagon 35 6.6 16.6
CS-YHG-LS070 Internal Hexagon 50 9 14.8
CS-YHG-LS071 Internal Hexagon 35 9.1 14.8

Item NO. M12 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS072 External hHexagon 75 8.1 18.8
CS-YHG-LS073 External hHexagon 50 10.2 18.8
CS-YHG-LS074 External hHexagon 35 10.1 18.4
CS-YHG-LS075 External hHexagon 25 10.3 18.4
CS-YHG-LS076 External hHexagon 15 10 21.2
CS-YHG-LS077 Internal Hexagon 50 10.5 17.2
CS-YHG-LS078 Internal Hexagon 35/25 10.4 17.1
CS-YHG-LS079 Internal Hexagon 15 12.2 18.1
CS-YHG-LS080 Internal Hexagon 14 12.2 18

Item NO. M14 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS081 External hHexagon 80 10 22
CS-YHG-LS082 External hHexagon 50 7.6 21.9
CS-YHG-LS083 External hHexagon 40 9.9 21

Item NO. M16 L - Thread Length
(mm) 		K - Head Thickness
(mm) 		S - Opposite Side Length
(mm)
CS-YHG-LS084 External hHexagon 100 9.2 24.2
CS-YHG-LS085 External hHexagon 70 9.2 24.2
CS-YHG-LS086 External hHexagon 40 9.2 24.2


Tags : zirconia ceramic bolt and screw ceramic bolt and screw zirconum oxide bolt and screw
