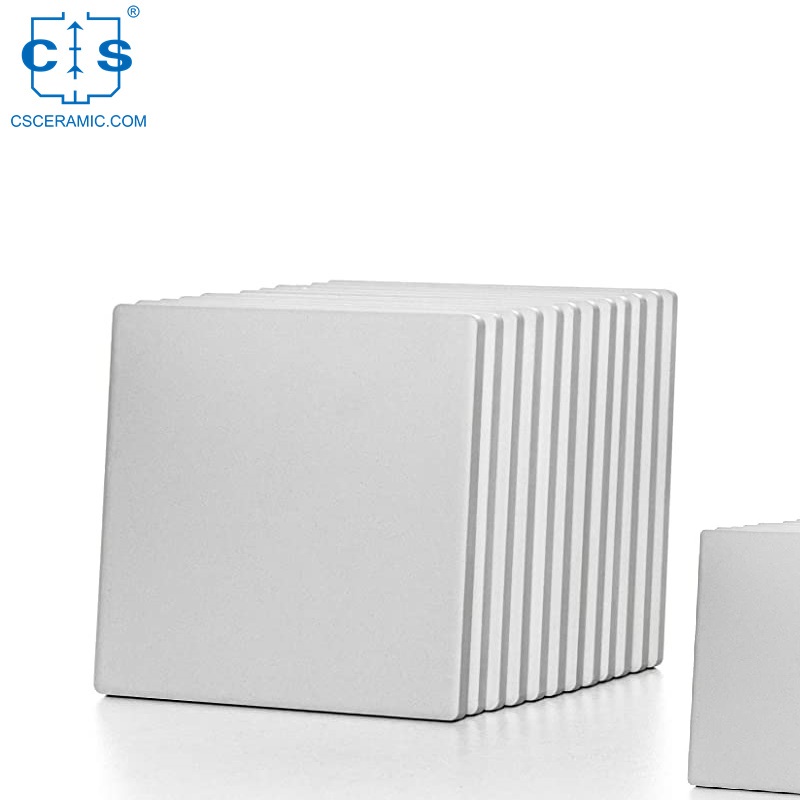

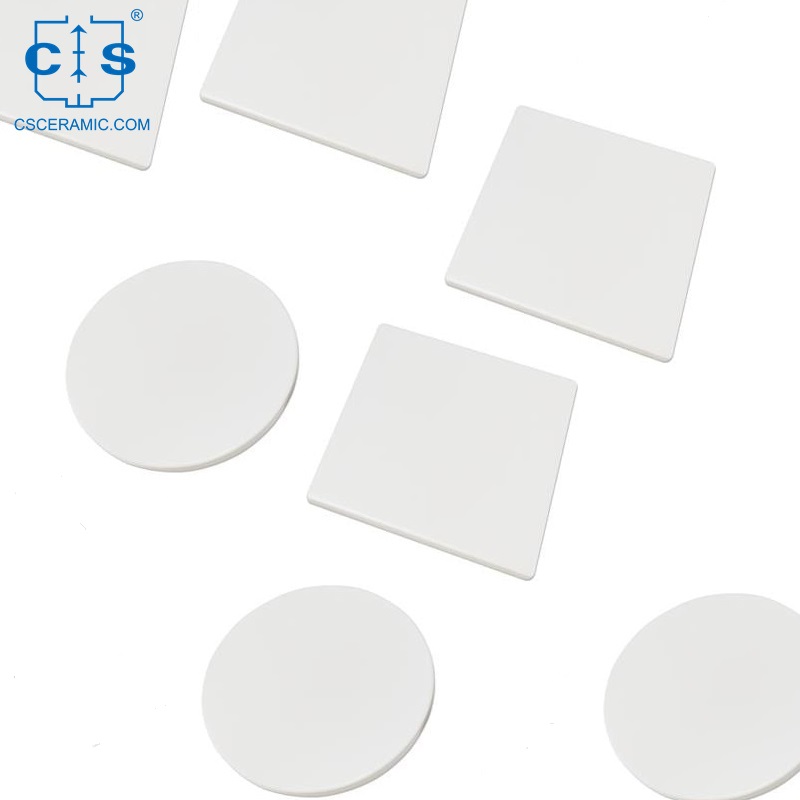

YSZ Yttrium Stabilized Square / Round Zirconia Ceramic Plate

YSZ Yttrium Stabilized Square / Round Zirconia Ceramic Plate

Zirconia plates are ceramic plates made from zirconium oxide, a material with a high strength-to-weight ratio and high temperature resistance.

item no. :
CS-YHG-B1001
:
China
Color :
White
Port :
Any ports of China
lead date :
1-7 days
Material : Zirconia ceramic
Purity : 95%
Shape : Customize

contact now catalogue

description

YSZ Yttrium Stabilized Square / Round Zirconia Ceramic Plate

ZrO2 Ceramic Plate's Feature 1.Highly resistant to wear and tear, as well as corrosion.

2. Highly resistant to temperatures up to 1,200°C (2,192°F).

3. Extremely hard and rigid, making them ideal for applications where strength and durability are important.

4. Non-magnetic and non-conductive, making them ideal for applications where electrical and magnetic interference is a concern.

5. Low thermal conductivity, which makes them an ideal choice for applications requiring thermal insulation.

6. Low coefficient of friction, making them a good choice for use in bearings and other moving parts.

7. Highly resistant to chemical attack and corrosion, making them a good choice for use in chemical processing applications.

Zirconia Plate's Applications

1. Used as an electrical insulator.

2. Used as a wear-resistant part in engines, pumps, and valves.

3. Used as a bearing in medical and scientific instruments.

4. Used as a substrate in the production of integrated circuits.

5. Used to create components for microelectromechanical systems (MEMS).

6. Used in the production of dental prostheses and restorations.

7. Used as a substrate for printed circuit boards (PCBs). 8. Used in jewelry production as an alternative to diamonds.

Zirconium Oxide Plate's Technical Parameters

Property	Value
Color	White
Density	6.0g/cm3
Flexural strength	1150MPa
Compressive strength	2500MPa
Max use temperature	1500℃
Thermal conductivity	2.5W/(m·K)
Thermal expansion coefficient	(8~10)×10-6℃
Specific heat	500J/(Kg·K)
Dielectric strength	5KV/mm
Dielectric constant	12Er

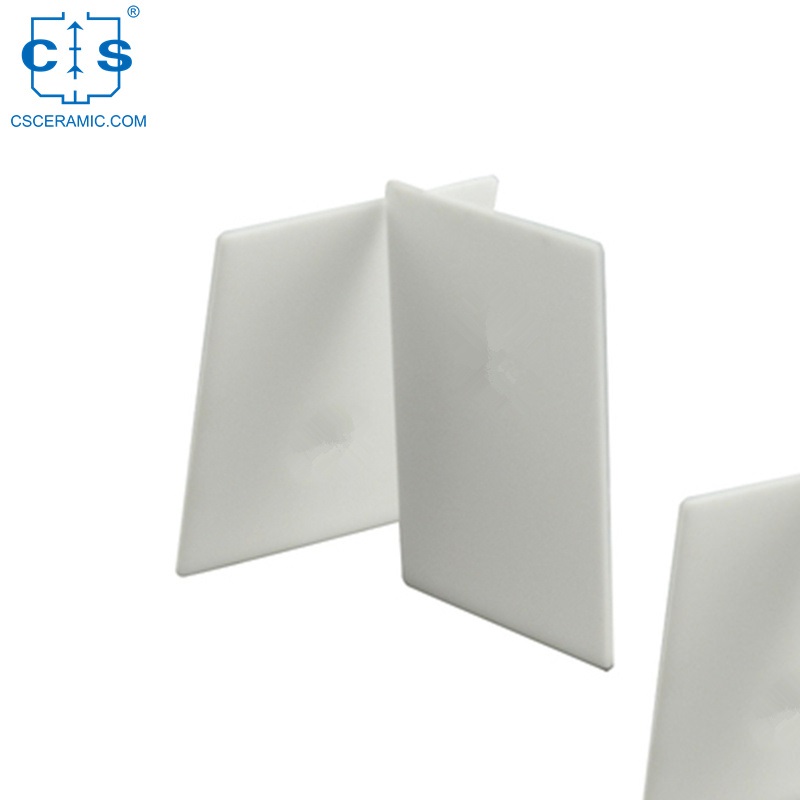

Zirconia Square Plate's Specifications

*Item*	*Length / mm*	*Width / mm*	*Thickness / mm*	*Purity*
CS-YHG-B1001	115	115	0.12	95%
CS-YHG-B1002	115	115	0.12	95%
CS-YHG-B1003	65	74	0.2	95%
CS-YHG-B1004	10	10	0.25	95%
CS-YHG-B1005	120	120	0.25	95%
CS-YHG-B1006	138	190	0.25	95%
CS-YHG-B1007	100	100	0.25	95%
CS-YHG-B1008	100	100	0.25	95%
CS-YHG-B1009	120	120	0.25	95%
CS-YHG-B1010	65	74	0.28	95%
CS-YHG-B1011	100	100	0.3	95%
CS-YHG-B1014	138	190	0.32	95%
CS-YHG-B1015	100	100	0.35	95%
CS-YHG-B1016	120	120	0.38	95%
CS-YHG-B1017	114	114	0.38	95%
CS-YHG-B1018	138	190	0.38	95%
CS-YHG-B1019	138	190	0.38	95%
CS-YHG-B1012	100	100	0.5	95%
CS-YHG-B1020	10	10	0.5	95%
CS-YHG-B1021	50	50	0.5	95%
CS-YHG-B1022	100	100	0.5	95%
CS-YHG-B1023	120	120	0.5	95%
CS-YHG-B1024	138	190	0.5	95%
CS-YHG-B1025	114	114	0.5	95%
CS-YHG-B1026	138	190	0.5	95%
CS-YHG-B1027	100	100	0.5	95%
CS-YHG-B1028	100	100	0.6	95%
CS-YHG-B1029	10	10	0.64	95%
CS-YHG-B1030	30	30	0.64	95%
CS-YHG-B1031	50	50	0.64	95%
CS-YHG-B1032	100	100	0.64	95%
CS-YHG-B1033	120	120	0.64	95%
CS-YHG-B1034	152	152	0.64	95%
CS-YHG-B1035	138	190	0.64	95%
CS-YHG-B1036	114	114	0.65	95%
CS-YHG-B1037	138	190	0.65	95%
CS-YHG-B1038	100	100	0.7	95%
CS-YHG-B1039	76.2	76.2	0.75	95%
CS-YHG-B1040	84	84	0.8	95%
CS-YHG-B1041	120	120	0.8	95%
CS-YHG-B1042	138	190	0.8	95%
CS-YHG-B1013	100	100	1	95%
CS-YHG-B1043	10	10	1	95%
CS-YHG-B1044	20	20	1	95%
CS-YHG-B1045	25	25	1	95%
CS-YHG-B1046	30	30	1	95%
CS-YHG-B1047	35	35	1	95%
CS-YHG-B1048	40	40	1	95%
CS-YHG-B1049	50	50	1	95%
CS-YHG-B1050	56	90	1	95%
CS-YHG-B1051	60	60	1	95%
CS-YHG-B1052	100	100	1	95%
CS-YHG-B1053	109	109	1	95%
CS-YHG-B1054	114	114	1	95%
CS-YHG-B1055	127	127	1	95%
CS-YHG-B1056	150	150	1	95%
CS-YHG-B1057	100	100	1	95%
CS-YHG-B1058	138	190	1	95%
CS-YHG-B1059	138	190	1	95%
CS-YHG-B1060	120	120	1	95%
CS-YHG-B1061	150	150	1	95%
CS-YHG-B1062	100	100	1.5	95%
CS-YHG-B1063	127	127	1.5	95%
CS-YHG-B1064	100	100	1.5	95%
CS-YHG-B1065	150	150	1.5	95%
CS-YHG-B1066	20	20	2	95%
CS-YHG-B1067	30	30	2	95%
CS-YHG-B1068	70	70	2	95%
CS-YHG-B1069	100	100	2	95%
CS-YHG-B1070	125	125	2	95%
CS-YHG-B1071	100	100	2	95%
CS-YHG-B1072	150	150	2	95%
CS-YHG-B1073	180	180	2	95%
CS-YHG-B1074	200	200	2	95%
CS-YHG-B1075	220	220	2	95%
CS-YHG-B1076	100	100	2.5	95%
CS-YHG-B1077	100	100	2.5	95%
CS-YHG-B1078	160	170	2.5	95%
CS-YHG-B1079	70	70	3	95%
CS-YHG-B1080	100	100	3	95%
CS-YHG-B1081	80	80	3	95%
CS-YHG-B1082	100	100	3	95%
CS-YHG-B1083	120	120	3	95%
CS-YHG-B1084	150	150	3	95%
CS-YHG-B1085	180	180	3	95%
CS-YHG-B1086	200	200	3	95%
CS-YHG-B1087	100	100	3.5	95%
CS-YHG-B1088	100	100	4	95%
CS-YHG-B1089	40	40	5	95%
CS-YHG-B1090	50	50	5	95%
CS-YHG-B1091	80	80	5	95%
CS-YHG-B1092	80	110	5	95%
CS-YHG-B1093	100	100	5	95%
CS-YHG-B1094	110	110	5	95%
CS-YHG-B1095	150	150	5	95%
CS-YHG-B1096	180	180	5	95%
CS-YHG-B1097	200	200	5	95%
CS-YHG-B1098	50	50	6	95%
CS-YHG-B1099	50	50	7	95%
CS-YHG-B1100	50	50	8	95%
CS-YHG-B1101	100	100	8	95%
CS-YHG-B1102	150	150	8	95%
CS-YHG-B1103	50	50	10	95%
CS-YHG-B1104	100	100	10	95%
CS-YHG-B1105	100	100	12	95%
CS-YHG-B1106	50	50	15	95%
CS-YHG-B1107	100	100	15	95%
CS-YHG-B1108	100	100	20	95%

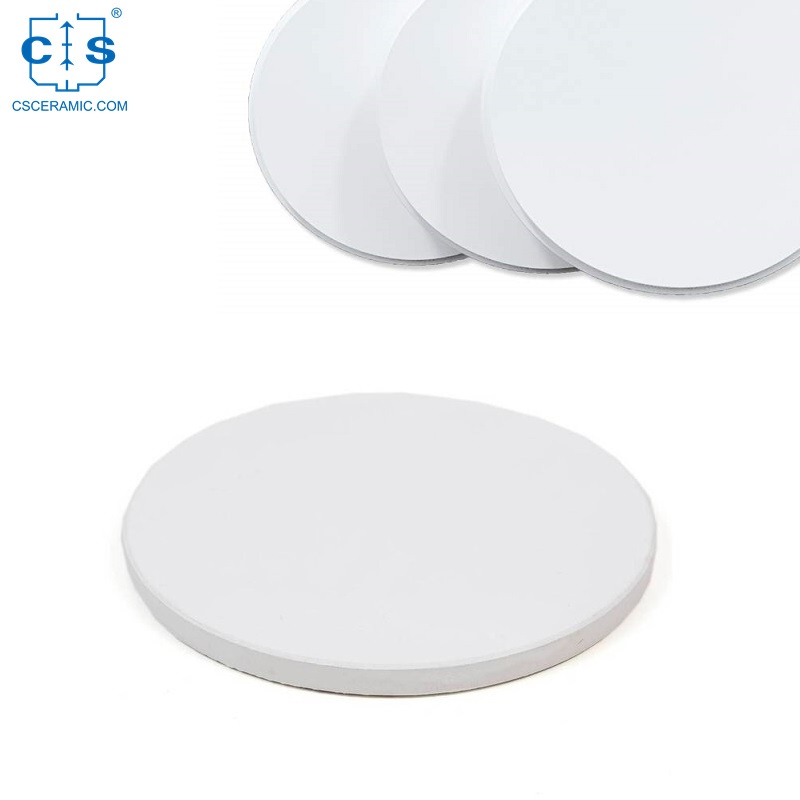

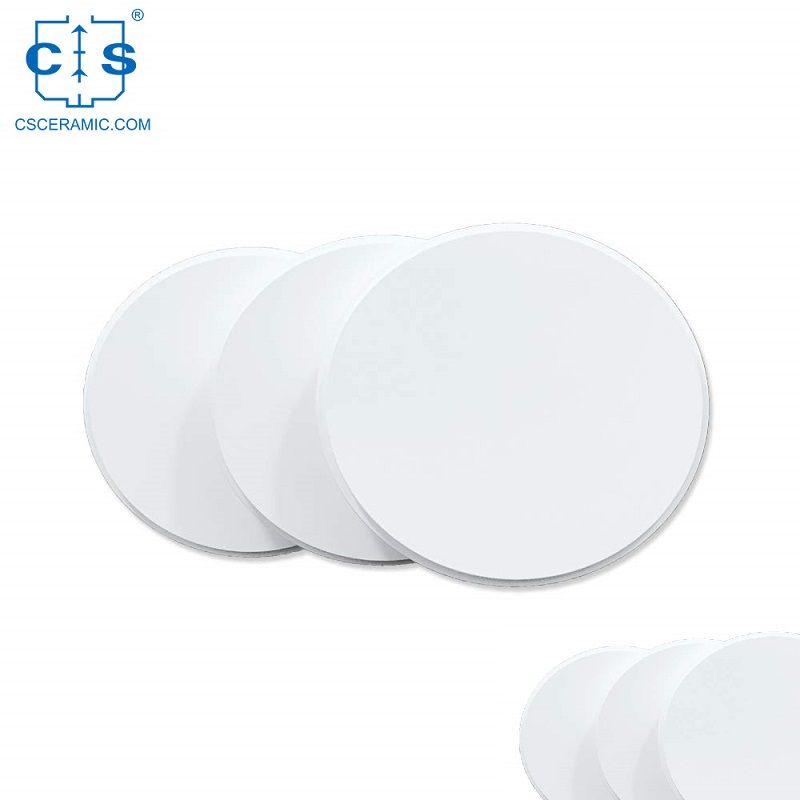

Round Plate Specification

Item	Dia / mm	Thickness / mm	Purity
CS-YHG-B2001	3.5	1	95%
CS-YHG-B2002	5	1	95%
CS-YHG-B2003	36	4	95%
CS-YHG-B2004	40	1.5	95%
CS-YHG-B2005	50	2	95%
CS-YHG-B2006	60	10	95%
CS-YHG-B2007	120	2	95%
CS-YHG-B2008	125	6	95%
CS-YHG-B2009	6	0.3	95%
CS-YHG-B2010	6	0.5	95%
CS-YHG-B2011	6	0.6	95%
CS-YHG-B2012	6	1	95%
CS-YHG-B2013	8	0.3	95%
CS-YHG-B2014	8	0.5	95%
CS-YHG-B2015	8	0.6	95%
CS-YHG-B2016	8	1	95%
CS-YHG-B2017	10	0.3	95%
CS-YHG-B2018	10	0.5	95%
CS-YHG-B2019	10	0.6	95%
CS-YHG-B2020	10	1	95%
CS-YHG-B2021	12	0.3	95%
CS-YHG-B2022	12	0.5	95%
CS-YHG-B2023	12	0.6	95%
CS-YHG-B2024	12	1	95%
CS-YHG-B2025	16	0.3	95%
CS-YHG-B2026	16	0.5	95%
CS-YHG-B2027	16	0.6	95%
CS-YHG-B2028	16	1	95%
CS-YHG-B2029	18	0.5	95%
CS-YHG-B2030	18	0.6	95%
CS-YHG-B2031	18	1	95%
CS-YHG-B2032	20	0.3	95%
CS-YHG-B2033	20	0.5	95%
CS-YHG-B2034	20	0.6	95%
CS-YHG-B2035	20	1	95%
CS-YHG-B2036	25	0.5	95%
CS-YHG-B2037	25	1	95%
CS-YHG-B2038	30	0.5	95%
CS-YHG-B2039	30	0.6	95%
CS-YHG-B2040	30	1	95%
CS-YHG-B2041	33	1	95%
CS-YHG-B2042	35	1	95%
CS-YHG-B2043	40	1	95%
CS-YHG-B2044	50	0.5	95%
CS-YHG-B2045	50	0.6	95%
CS-YHG-B2046	50	1	95%
CS-YHG-B2047	55	0.5	95%
CS-YHG-B2048	65	0.5	95%
CS-YHG-B2049	75	1	95%
CS-YHG-B2050	100	0.5	95%
CS-YHG-B2051	100	0.6	95%
CS-YHG-B2052	100	1	95%

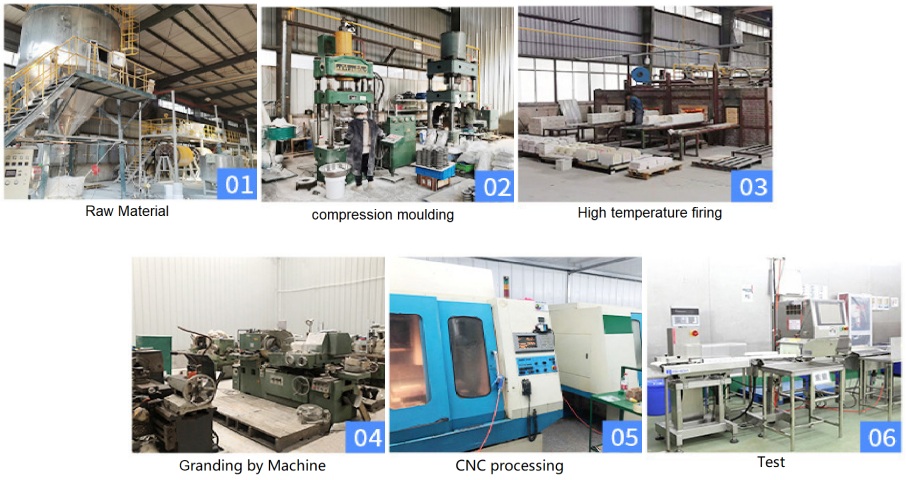

Production Processing

Use/Maintenance Methods

1.If the zirconia ceramic is exposed to water for a long time, then because of the death of nitrifying bacteria, with the passage of time, you will find that the color of the "ceramic" is "white" - "yellow" - "dark yellow".

2.This is because the impurities in the water have blocked the surface gap of the "ceramic", even cleaning is not useful. The specific use time of zirconia needs to be analyzed according to the use environment to determine the usable time.

Packing & Shipping

Test Standards

1. Dimensional accuracy: The size of the ceramic plate should be within the specified tolerance range.

2. Surface finish: The surface of the ceramic plate should be smooth and free from any visible defects.

3. Electrical insulation: The ceramic plate should be able to withstand a voltage of at least 1000V without breaking down.

4. Thermal shock resistance: The ceramic plate should be able to withstand thermal shock without cracking or breaking.

5. Chemical resistance: The ceramic plate should be able to resist common chemicals without discoloration or corrosion.

6. Thermal expansion: The ceramic plate should have a thermal expansion coefficient within the specified range.

7. Mechanical strength: The ceramic plate should have a minimum strength of at least 6,000 PSI.

8. Compressive strength: The ceramic plate should have a minimum compressive strength of at least 200 MPa.

OEM Service

1. Manufactured to strict specifications for consistent quality and performance.

2. Made from high-grade zirconia ceramic for superior durability and wear resistance.

3. Available in a variety of sizes to meet specific needs.

4. Suitable for applications in extreme temperatures.

5. Designed to resist abrasion, corrosion and chemical degradation.

6. Smooth surfaces to ensure easy cleaning and maintenance.

7. Resistant to high-frequency vibrations, impacts and shocks.

8. Customizable designs to meet specific requirements.

Why Choose Us As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market.

1. Sufficient inventory (delivery within 1-3 days)

2, multiple materials (yttrium stability, calcium stability)
3, complete size (diameter 3.5-120mm thickness 0.25-6mm)
4, service life (according to the material used by customers, cleaning and preservation decision)
5, quality assurance (each board has passed 100% strict testing before leaving the factory)
6, the quality of the commitment (quality problems we bear the freight return package)
7. Preferential price (direct selling manufacturers, manufacturing enterprises, global direct selling)
8, quality service (according to customer requirements of customized production)
9. Sincere attitude (professional and technical personnel analyze and solve various problems for customers)

FAQ

1.Q: What is zirconia ceramic plate?

A: Zirconia ceramic plates are a type of ceramic plates made from zirconia, which is a strong, durable ceramic material. Zirconia ceramic plates are often used in a variety of applications, including medical, industrial, and consumer applications. They are highly resistant to corrosion and wear and can withstand high temperatures. They are also non-magnetic and non-conductive, making them ideal for use in a wide range of applications.

2.Q: What are the benefits of using zirconia ceramic plates?

A: Zirconia ceramic plates offer a number of benefits, including superior strength, durability, and resistance to corrosion and wear. They are also non-magnetic and non-conductive, meaning they can be used in a wide range of applications without risk of interference or damage. Additionally, zirconia ceramic plates are lightweight and easy to handle, making them ideal for use in a variety of settings.

3.Q: How are zirconia ceramic plates used?

A: Zirconia ceramic plates are commonly used in medical, industrial, and consumer applications. In medical applications, they are used for dental prostheses and implants, as well as for other medical devices. In industrial applications, they are used for wear-resistant parts in machinery, as well as for insulation and protective coatings. In consumer applications, they can be used for a variety of kitchenware and dinnerware items.
