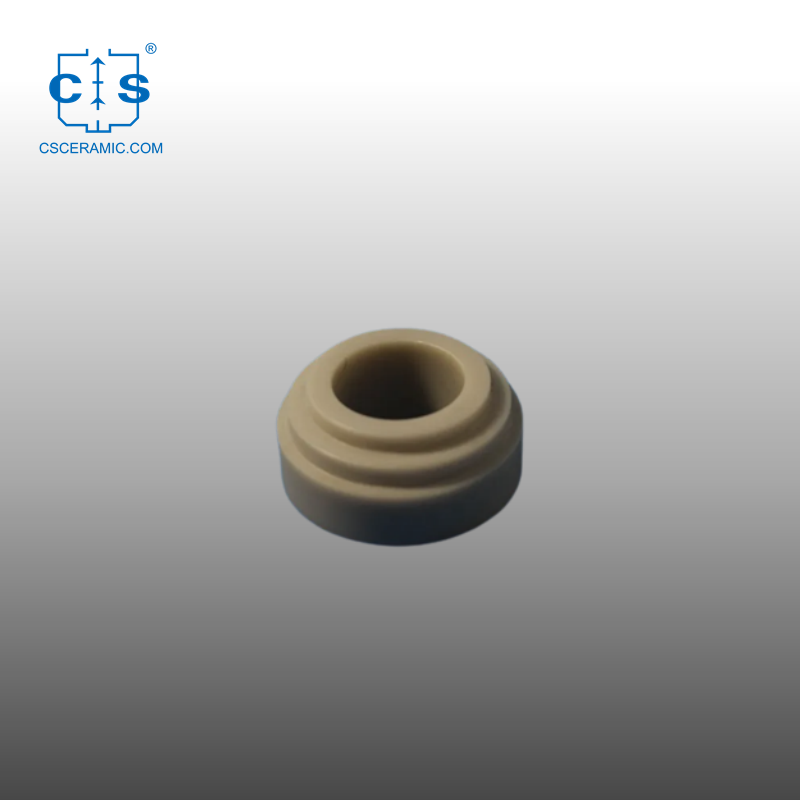

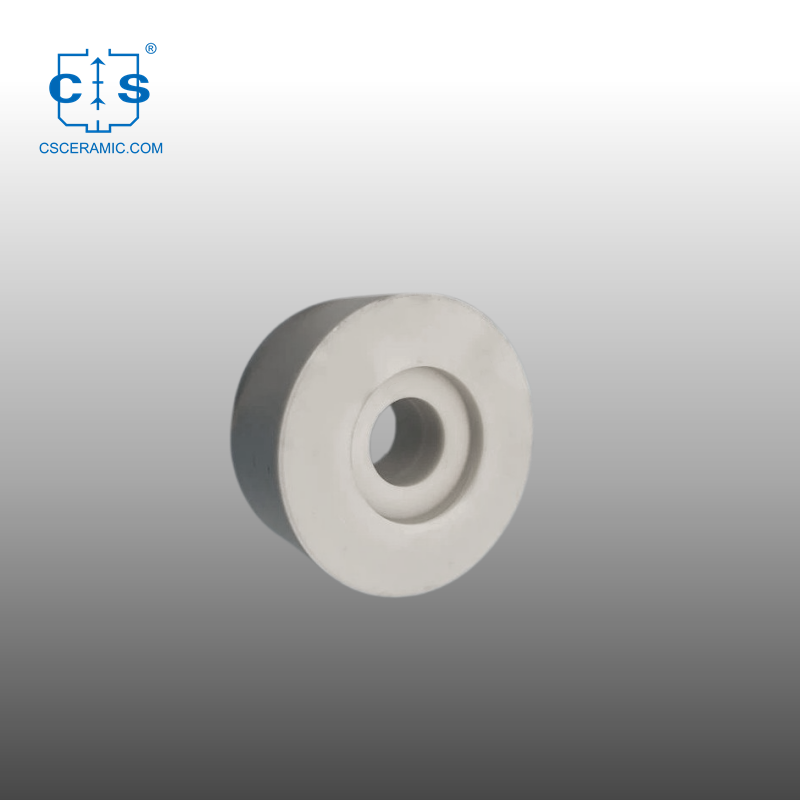

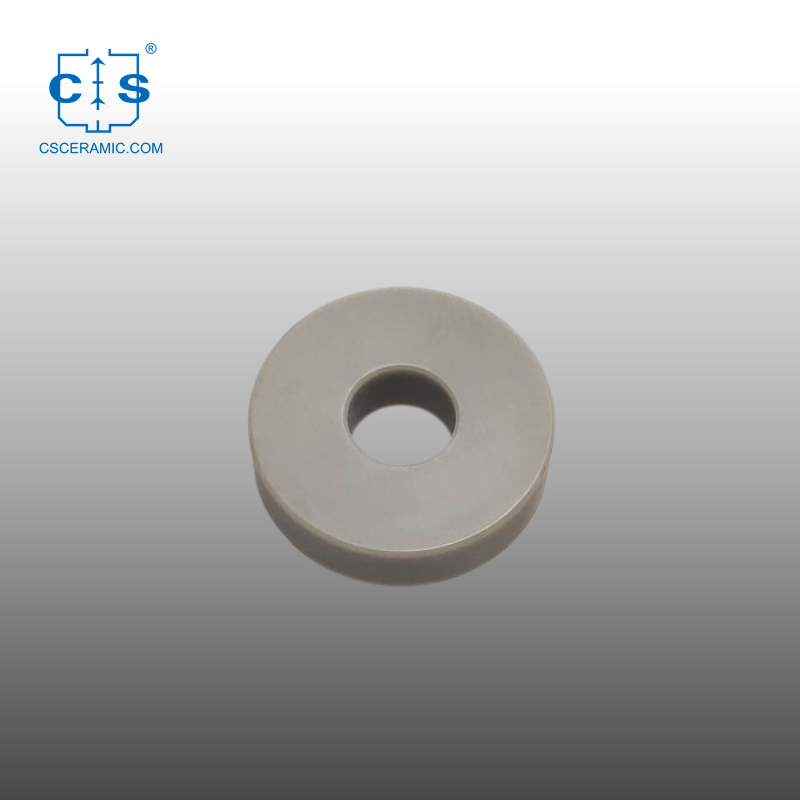

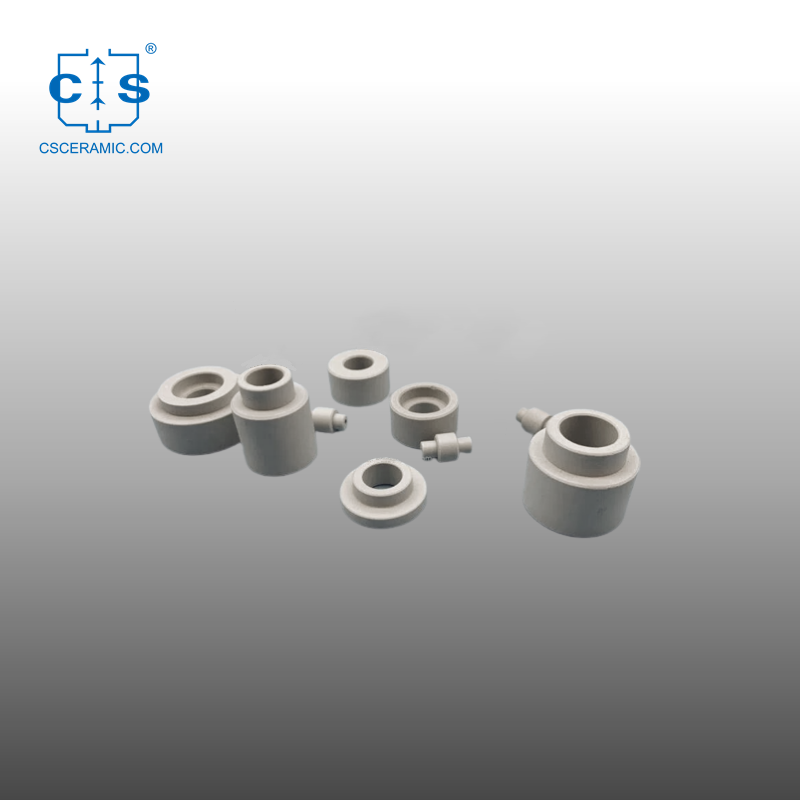

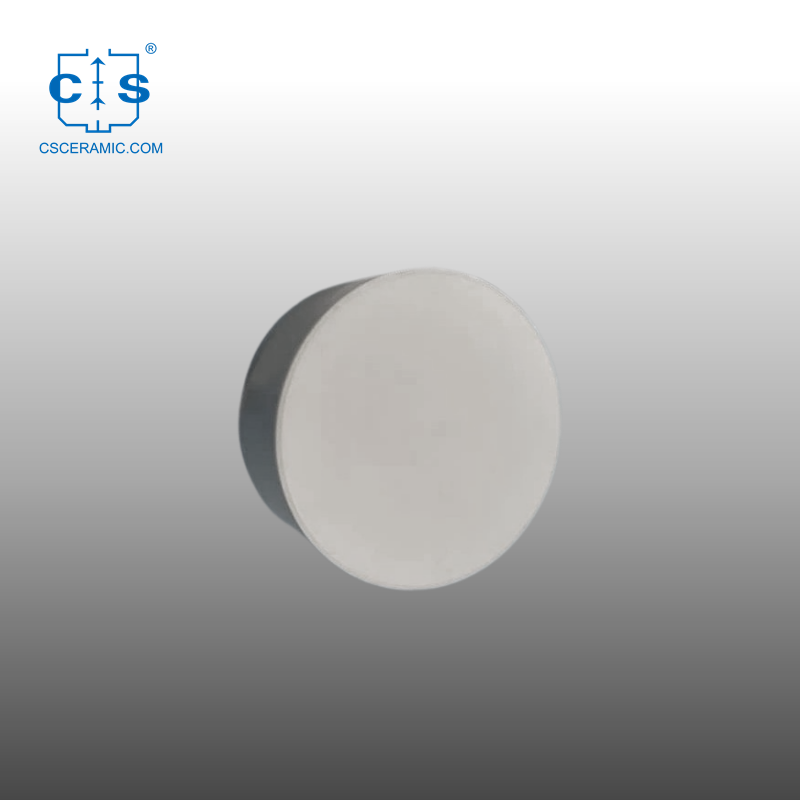

ALN ceramic with high thermal conductivity, low coefficient of expansion, high strength, high temperature resistance, chemical resistance, high resistivity , low dielectric loss.
item no. :
CS-NAL-001Color :
White Grey Customized.Material : Aluminum Nitride
Shape : Round
ALN ceramics use heat resistant melt erosion and thermal shock resistance, can produce GaAs crystal crucible, Al evaporation pan,MHD power generation equipment and high temperature turbine corrosion resistant parts, using its optical properties can be used as an infrared window.Aluminum Nitride (ALN) is a ceramic material with outstanding properties such as high thermal conductivity and high electrical resistance. In addition, it is featured with advantages such as high hardness, corrosion resistant, low dielectric loss and low CTE.
Size details:
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, wall thickness and any special requirements. To speed up the quotation, please provide drawings.
Feature:
1.High hardness , diversity
2. High precision and density
3.High reliability and stability
4.High thermal conductivity
5.Extremely abrasive resistance performance
6. Wide scope of application
Application high-power circuits, RF and microwave circuits, GaAs crystal crucible, Al evaporation pan, MHD power generation equipment.
Applications:
Semiconductor manufacturing equipment (heaters, electrostatic chucks, susceptors, clamps rings, cover plates) and medical equipment
- RF / Microwave Components
- Power Modulus
- Power Transformers
- High Power LED Package
- Laser Diode Sub-mounts
- LED Chip Sub-mount
- Microelectronic Packages
- Transistors
Technical Parameter:
Material Properties of AIN Ceramic | ||||||
Property Sort | Characteristic | Unit | Property Index | |||
AN170 | AN200 | AN220 | ||||
Basic Property | Color | - | Grey | Grey | Beige | |
Water absorption | % | 0 | 0 | 0 | ||
Volume density | g/cm3 | ≥3.30 | ≥3.30 | ≥3.26 | ||
Surface roughness | um | 0.1~0.6 | 0.1~0.6 | 0.1~0.6 | ||
Camber | (length ‰) | ≤2‰ | ≤2‰ | ≤2‰ | ||
Thermal Property | Thermal conductivity (20℃) | W/m.k | ≥170 | ≥200 | ≥220 | |
Coefficient of thermal expansion | (20℃~300℃) | (*10-6/℃) | 4.6 | 4.6 | 4.5 | |
(40℃~800℃) | 5.2 | 5.2 | 5.2 | |||
Mechanical Property | Bending strength | MPa | ≥450 | ≥300 | ≥200 | |
Modulus strength | GPa | 320 | 310 | 310 | ||
Moh's hardness | - | 8 | 8 | 8 | ||
Electrical Property | Dielectric strengh | KV/mm | ≥17 | ≥16 | ≥15 | |
Volume resistivity | Ω.cm | ≥1014 | ≥1014 | ≥1013 | ||
Dielectric constant | - | 9 | 8.6 | 8.5 | ||
Dielectric loss | *10-4 | 2.98 | 2 | 2 |
Production Process:
Packing:
Our Certificate:
FAQ
Q1: What is Aluminum Nitride(AlN)?
Aluminum Nitride (AlN) is a covalently bonded ceramic material formed from the two abundant elements, aluminum and nitrogen. It is highly stable in an atmosphere that is inert at temperatures over 2000°C and has a remarkable combination of properties, boasting high thermal conductivity and strong dielectric strength.T his makes it an indispensable material for thermal management and electrical applications.
Q2: What is Aluminium Nitride used for?
a. Heat sinks & Heat spreaders
b. Electrical insulators
c. Chucks and clamp rings for semiconductor processing equipment
d. Silicon wafer handling and processing
e. Substrates for electronic packages
f. Chip carriers for sensors and detectors
g. Laser heat management components
h. Molten metal fixtures
i. Packaging for microwave devices
Q3: Why is AlN a favored material for substrate and thermal management applications?
Aluminum Nitride is a one-of-a-kind ceramic material that offers both excellent thermal conductivity and high electrical resistivity. While Beryllium Oxide and cubic Boron Nitride also possess high thermal conductivity, usage of BeO is limited due to its toxicity and it is quite challenging to manufacture c-BN.
The capacity of a material to move heat while under the effect of a temperature differential is known as "thermal conductivity". In dielectrics such as AlN, heat transmission happens through lattice oscillations (or "phonons"). Elements having a straightforward composition, covalent bonding and low atomic mass normally demonstrate elevated thermal conductivity.
The thermal conductivity of a material is impacted by elements that hamper phonon dissemination. Such factors include temperature, impurities, pore size and placement, grain size, compositional homogeneity and alignment, all of which can significantly affect the lattice vibrations and, subsequently, the thermal conductivity.
The thermal conductivity of aluminium nitride, theoretically, is approximately 280 Wm-1K-1. The real thermal conductivity, on the other hand, is dependent on the processing parameters and the raw material quality. The incorporation of oxygen impurities into the lattice is a great disadvantage; as oxygen displaces nitrogen in the lattice, it forms vacancies that impede phonon propagation and scatter the phonons, thus leading to a decrease in thermal conductivity.
Q4. What information should we supply to get a quote?
Please offer the specification of ceramic boat for furnace, such as shape, dimension, quantity, application etc.
Q5. What type or material should we choose?
If you are not sure about the type/material needed, please kindly supply more details about working condition and application. Then our technical staff will check and offer you the most suitable type or material.
Q6. How can we place an order?
You can contact any sale person by email, Skype, WhatsApp, WeChat and so on.
And more details of the products you supplied will be helpful to get the targeted responses.
Q7. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and according to the final confirm with the sales for bulk production or customized products.
Q8. What do you do on quality control?
For every batch, each step and finished products will be inspected when producing by QC department.
Q9. How can we get the sample?
Free samples can be supplied after communication, but freight is for your account.
Q10. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings or inquiry.
