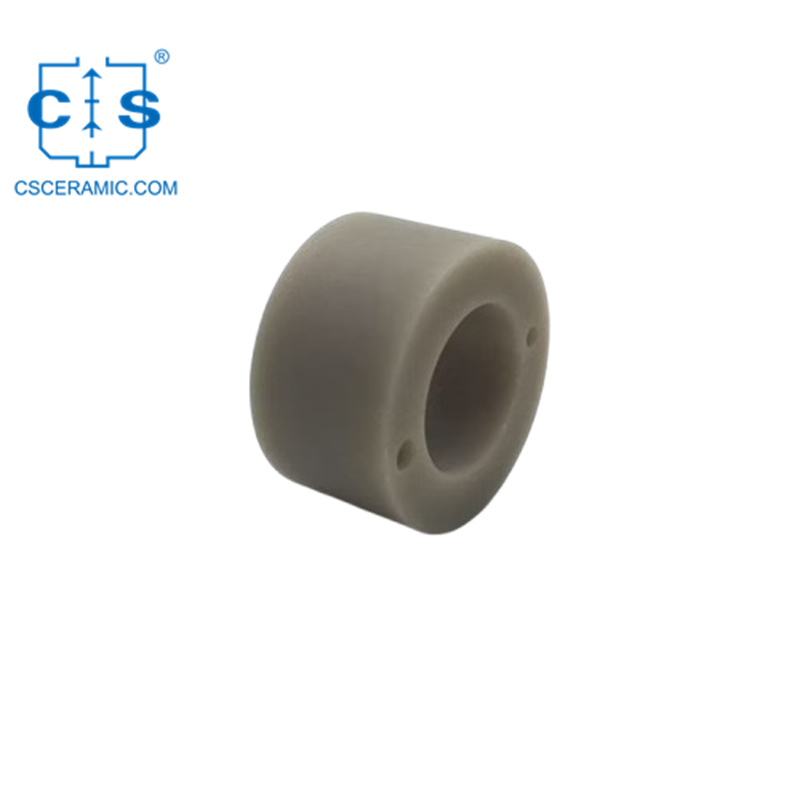

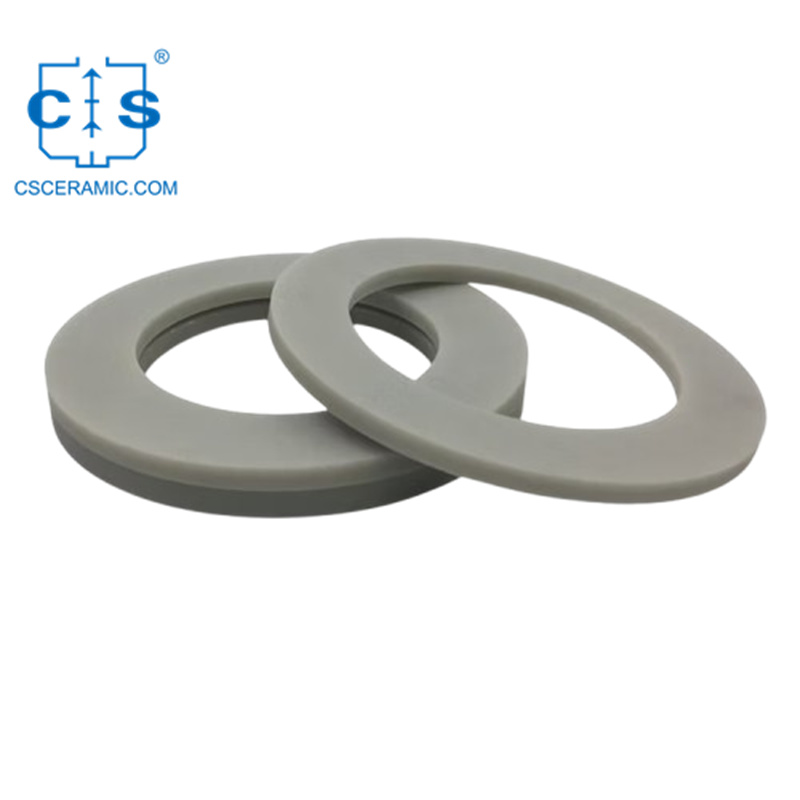

Corrosion Resistant Aluminum Nitride Ring for Mechanical & Industrial Sealing

The aluminum nitride ring serves as a vital sealing, heat and electrical insulation component in mechanical, electrical, metallurgical, and precision instrument equipment.

item no. :
CS-ALN-H001
Material : Aluminum Nitride

contact now catalogue

description

Properties of Aluminum Nitride Ceramic Ring

Corrosion Resistance: Our aluminum nitride ring exhibits excellent resistance to acid, alkali, and other chemical corrosive media, making it suitable for a wide range of harsh environments.
High Hardness & Wear Resistance: Crafted from high-hardness aluminum nitride material, the ring offers superior wear resistance and a long service life, ensuring reliable performance over time.
Exceptional High-Temperature Performance: With a maximum use temperature of 2000°C, the aluminum nitride ring boasts exceptional high-temperature resistance, combined with good thermal conductivity and oxidation resistance. It maintains stable performance even at elevated temperatures.
Low Thermal Expansion Coefficient: The ring's small thermal expansion coefficient allows it to adapt to a wide operating temperature range, minimizing deformation and stress under high-temperature conditions.

Applications of Aluminum Nitride Ceramic Ring

Versatile Applications: Our aluminum nitride rings are widely used in various equipment within the mechanical processing, electrical, metallurgy, precision instruments, and other industrial fields.
Sealing Capabilities: These rings provide exceptional sealing performance, ensuring tight and reliable seals in high-pressure and high-temperature environments.
Heat Insulation & Electrical Insulation: Aluminum nitride's inherent properties make these rings ideal for heat insulation and electrical insulation applications, providing robust protection against thermal and electrical hazards.
Durability & Performance: Crafted from high-quality aluminum nitride material, these rings offer superior durability and consistent performance, even in the most demanding industrial conditions.

Size Chart of Aluminum Nitride Ceramic Ring

Please provide drawing and parameter requirements.

Aluminum Nitride Ring
Item no.	Outer Dia.（mm)	Inner Dia.(mm）	Thickness（mm）
CS-ALN-H001	10.0	6.0	2.0
CS-ALN-H002	15.0	10.0	2.5
CS-ALN-H003	20.0	15.0	2.5
CS-ALN-H004	25.0	21.0	2.0
CS-ALN-H005	28.0	23.0	2.5
CS-ALN-H006	31.0	26.0	2.5
CS-ALN-H007	35.0	31.0	2.0
CS-ALN-H008	48.0	40.0	4.0
CS-ALN-H009	50.0	46.0	2.0
CS-ALN-H010	50.0	45.0	2.5
CS-ALN-H011	50.0	42.0	4.0
CS-ALN-H012	50.0	40.0	5.0
CS-ALN-H013	51.0	40.0	5.5
CS-ALN-H014	55.5	39.5	8.0
CS-ALN-H015	60.0	54.0	3.0
CS-ALN-H016	65.0	45.0	10.0
CS-ALN-H017	68.0	48.0	20.0
CS-ALN-H018	90.0	86.0	2.0
CS-ALN-H019	100.0	95.0	2.5
CS-ALN-H020	10-450	6-410	2-20
