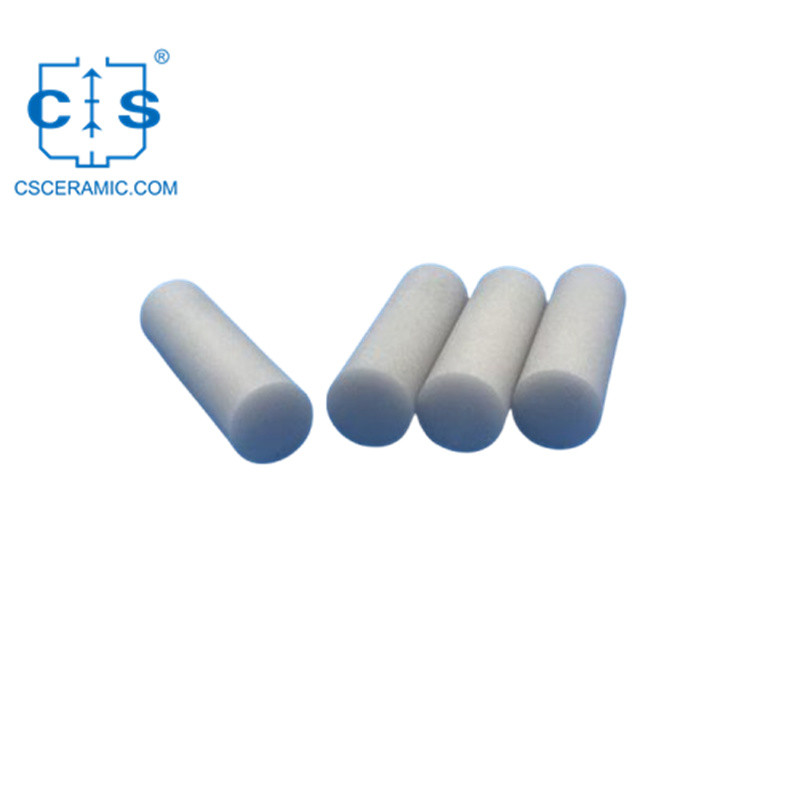

High-Temp Aluminum Nitride Ceramic Cylinder for Structural Applications

Aluminum Nitride Ceramic Cylinder offers high temp resistance, excellent thermal conductivity, wear & corrosion resistance, molten metal tolerance.

item no. :
CS-AIN-Anc001
Material : Aluminum Nitride

contact now catalogue

description

Properties of Aluminum Nitride Ceramic Cylinder

High Temperature Stability: Our aluminum nitride ceramic cylinders exhibit exceptional high-temperature stability, maintaining stable chemical and mechanical properties even at elevated temperatures. With excellent thermal conductivity and oxidation resistance, they are ideal for applications requiring consistent performance in harsh environments.
Low Thermal Expansion Coefficient: The aluminum nitride material boasts a small thermal expansion coefficient, reducing thermal stress at high temperatures. This makes our cylinders ideal for applications where precise dimensional stability is crucial.
Corrosion Resistance: Our cylinders are highly resistant to corrosion, allowing them to operate stably in corrosive media such as acids, alkalis, and salts for extended periods. This makes them an excellent choice for demanding applications in various industries.

Applications of Aluminum Nitride Ceramic Cylinder

Multi-Functional Structural Components: Our aluminum nitride ceramic cylinders can be utilized to create a wide range of structural components, providing exceptional strength and durability. Suitable for various applications, they offer insulation, heat insulation, and support, making them a versatile addition to your project.
Efficient Heat Dissipation: With exceptional thermal conductivity, our cylinders are ideal for heat dissipation applications. They effectively manage heat transfer, ensuring optimal performance in high-temperature environments.
Customizable Solutions: CSCERAMIC offers customizable aluminum nitride ceramic cylinders to meet your specific needs. Whether you require insulation, structural support, or heat dissipation, our experts can tailor a solution to fit your unique requirements.

Size Chart of Aluminum Nitride Ceramic Cylinder

Please provide drawing and parameter requirements.

AlN Cylinder
Item no.	Outer Dia.（mm）	Height（mm）	Purity（%）	Thermal Conductivity(w/(m·K))
CS-AIN-Anc001	20	200	92-99	170-230
CS-AIN-Anc002	30	150	92-99	170-230
CS-AIN-Anc003	50	100	92-99	170-230
CS-AIN-Anc004	70	120	92-99	170-230
CS-AIN-Anc005	80	180	92-99	170-230
CS-AIN-Anc006	90	300	92-99	170-230
CS-AIN-Anc007	120	350	92-99	170-230
CS-AIN-Anc008	150	400	92-99	170-230
