item no. :
CS-SIC-LS1001Material : SiC

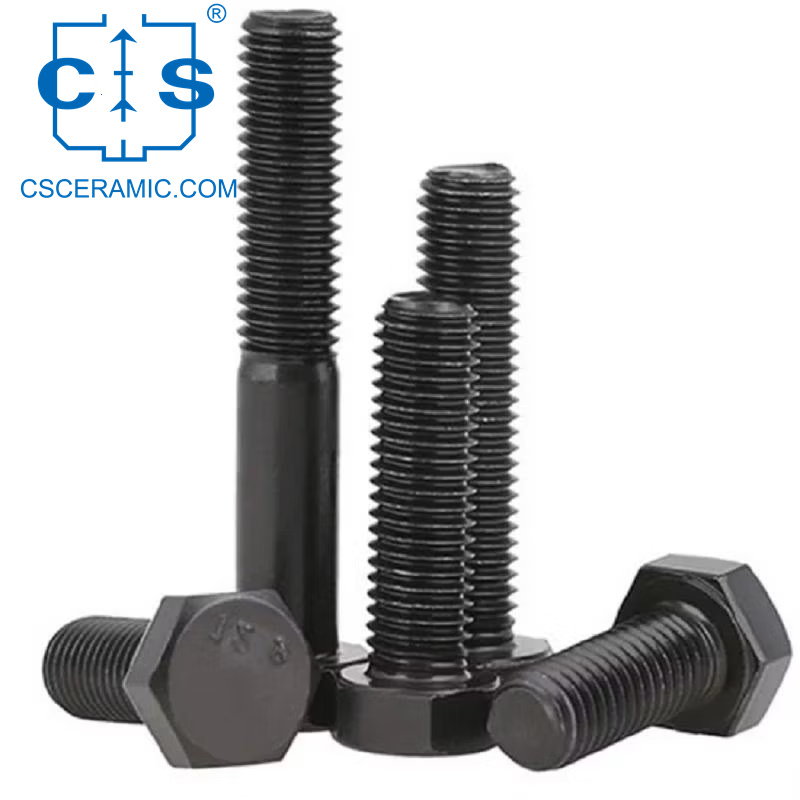

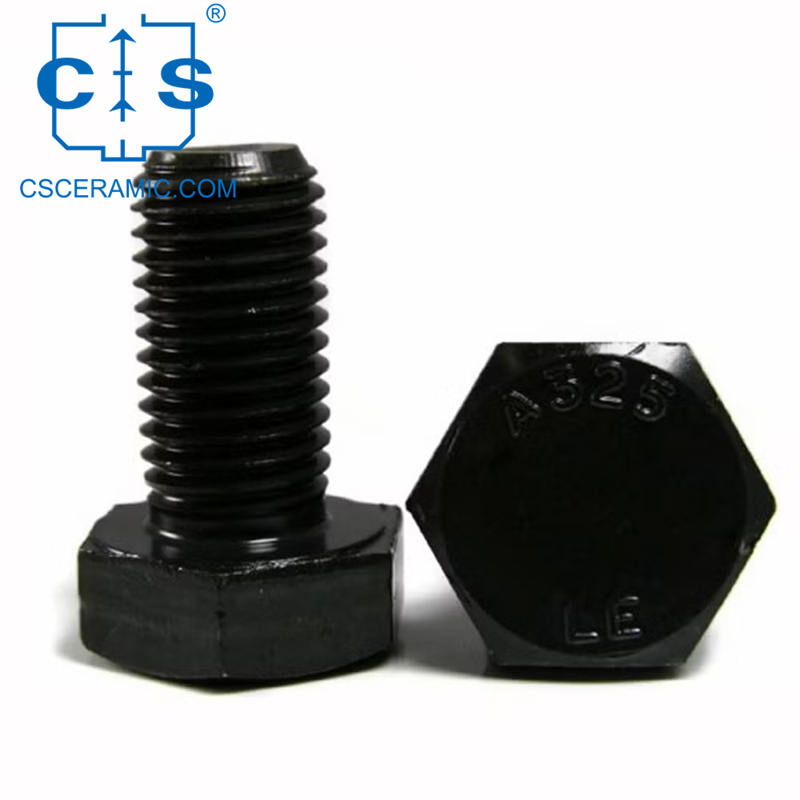

Exceptional Tensile & Torsional Strength: The Durable Silicon Carbide Ceramic Bolt & Screw boasts high tensile and torsional strength, paired with remarkable hardness and wear resistance. Its wear resistance surpasses manganese steel by over 200 times, significantly extending the bolt's lifespan. Additionally, its large elastic modulus ensures minimal deformation compared to steel bolts.
High-Temperature Resistance: The SiC bolt maintains high strength and hardness even at temperatures exceeding 1200℃, making it ideal for high-temperature applications.
Corrosion Resistance: The silicon carbide bolt and screw exhibit strong corrosion resistance, capable of withstanding contact with various acids, alkalis, and other chemical reagents. It can operate in high-humidity environments for extended periods without rusting.
The Durable Silicon Carbide Ceramic Bolt & Screw finds important applications as fasteners in industries such as petrochemicals, metallurgy, marine equipment, and aerospace, thanks to its excellent wear resistance, high-temperature resistance, and corrosion resistance.
Please provide drawing and parameter requirements for customization.
| Silicon Carbide Bolt and Screw | |||||||
| Item NO. | Nominal diameter of thread |
Thread pitch (mm) |
L | D1 | L1 | a | t |
| CS-SIC-LS1001 | M3 | 0.5 | 5 | 5.5 | 2 | 1 | 1.1 |
| CS-SIC-LS1002 | M3 | 0.5 | 6 | 5.5 | 2 | 1 | 1.1 |
| CS-SIC-LS1003 | M3 | 0.5 | 8 | 5.5 | 2 | 1 | 1.1 |
| CS-SIC-LS1004 | M3 | 0.5 | 10 | 5.5 | 2 | 1 | 1.1 |
| CS-SIC-LS1005 | M4 | 0.7 | 6 | 7 | 2.6 | 1 | 1.4 |
| CS-SIC-LS1006 | M4 | 0.7 | 8 | 7 | 2.6 | 1 | 1.4 |
| CS-SIC-LS1007 | M4 | 0.7 | 10 | 7 | 2.6 | 1 | 1.4 |
| CS-SIC-LS1008 | M4 | 0.7 | 12 | 7 | 2.6 | 1 | 1.4 |
| CS-SIC-LS1009 | M5 | 0.8 | 8 | 8.5 | 3 | 1.2 | 1.5 |
| CS-SIC-LS1010 | M5 | 0.8 | 10 | 8.5 | 3 | 1.2 | 1.5 |
| CS-SIC-LS1011 | M5 | 0.8 | 12 | 8.5 | 3 | 1.2 | 1.5 |
| CS-SIC-LS1012 | M5 | 0.8 | 16 | 8.5 | 3 | 1.2 | 1.5 |
SiC Ceramic Lined CQB Stainless Steel Magnetic Centrifugal Pump Zero Leakage
The CQB Magnetic Centrifugal Pump transfers torque via magnetic force with no mechanical contact, ensuring zero leakage as the liquid is sealed within a stationary isolation sleeve.
Silicon Carbide Lined CQBF Magnetic Pump
The SiC Ceramic CQB-F Fluorine-lined Magnetic Pump features PVF2 (Polyvinylidene Fluoride) for its flow parts with a metallic shell for durability against mechanical impacts for inlet diameters below 32mm.
Silicon Carbide Lined Canned Pump Sealless Design for Leak-Free Operation
The Silicon Carbide Lined Canned Pump, a sealless design with pump and motor enclosed in a pressurized vessel filled with pumped media and powered by an electric cable assembly, eliminates rotating shaft seals for complete leak-free operation.
Silicon Carbide Lined External Gear Pump Reliable Pump Solutions
The Silicon Carbide Lined External Gear Pump, featuring external gears, comprising a driving gear, driven gear, pump body, cover, and safety valve.
Silicon Carbide Lined Internal Gear Pump Fluid Transfer Pump
The Silicon Carbide Lined Internal Gear Pump, features simple design, smooth operation, adjustable flow rate, and high pressure, transporting fluid via rotating gears.
Positive Displacement Silicon Carbide Submerged Pump Anti-Airlock & Cavitation
The Silicon Carbide Lined Submerged Pump is categorized into traditional (non-explosion-proof Zone 0 inside tank) and advanced (explosion-proof in both Zones) models based on material explosion-proof ratings.
Silicon Carbide Mechanical Seal High-Pressure Resistance for Fluid Prevention
The Silicon Carbide Mechanical Seal, a shaft sealing device for rotating machinery, utilizing pure SSiC rings or a combination of SSiC and Sic+C rings to prevent fluid leakage under high pressure.
High-Performance SiC Ceramic Liner Sleeve for Equipment Protection
The Silicon Carbide Ceramic Sleeve serves as a wear & corrosion-resistant liner for cylinders, pumps, valves, bearings, grinder drums, extending equipment lifespan by preventing metal wear-induced failures.
