laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More

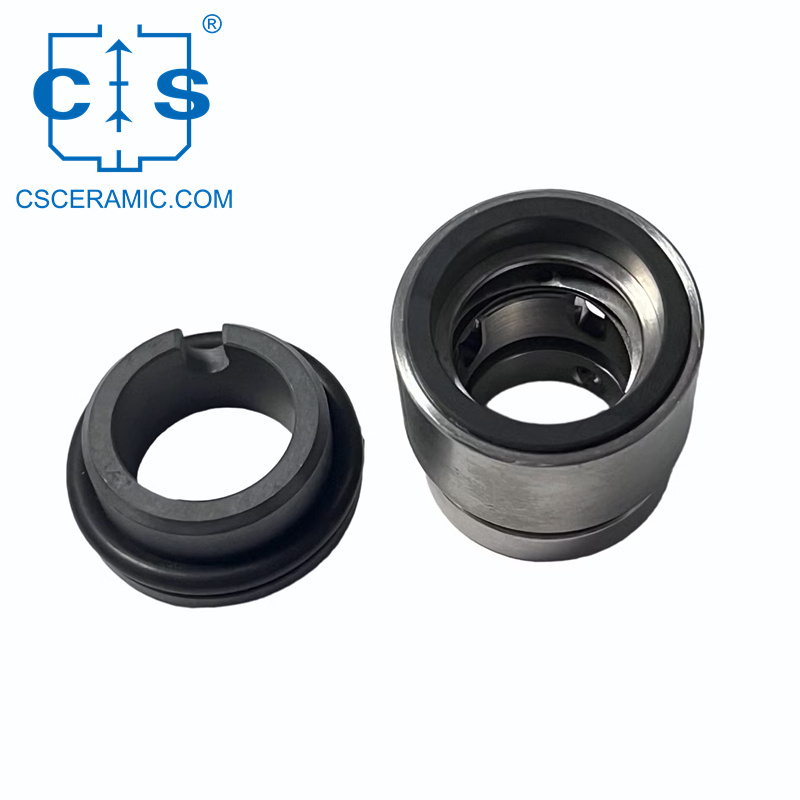

item no. :
CS-MS-10Material : SiC
Chemical Resistance:
Our seals are crafted from silicon carbide, a material renowned for its excellent chemical resistance. This allows them to operate stably in the presence of most chemical media, ensuring long-term performance in demanding industrial settings.
High Hardness & Abrasion Resistance:
With its extremely high hardness, silicon carbide stands up to wear and tear, providing a long service life even in high-abrasion applications.
Low Friction Coefficient:
Pairing silicon carbide with silicon carbide or carbon-graphite results in a low friction coefficient, making our seals ideal for applications requiring minimal friction.
High Temperature Stability:
Silicon carbide's high temperature stability ensures that our seals maintain consistent performance in high-temperature environments, making them perfect for mechanical sealing in such conditions.
Versatile Media Compatibility:
Suitable for sealing a wide range of media, including solids-laden and corrosive fluids, our Silicon Carbide Mechanical Seals offer unmatched versatility and applicability.
Exceptional Stability:
The inherent stability of silicon carbide ensures that our seals remain effective over time, resisting external influences and maintaining a consistent seal.
Pure SSiC Rings for Corrosive Media:
Our seals feature a pair of pure Silicon Carbide (SSiC) rings for the rotating and stationary components. This configuration is ideal for applications involving highly corrosive media, providing exceptional resistance and ensuring long-term durability.
Hybrid SSiC and Sic+C Rings for Vaporizable Media:
For applications where media is prone to vaporization, we offer a configuration with one SSiC ring and one ring made of Silicon Carbide with Carbon (Sic+C). This combination offers enhanced performance in vaporizable media, ensuring a reliable seal under such conditions.
Please provide drawing and parameter requirements for customization.
| Item no. | Size | d | D3 | D13 | D6 | D7 | D8 | L3 | L4 | L8 | L22 | L23 |
| CS-MS-10 | 10 | 10 | 19 | 20.0 | 17 | 21 | 3 | 15.5 | 10.0 | 17.5 | 16.9 | / |
| CS-MS-12 | 12 | 12 | 21 | 22.0 | 19 | 23 | 3 | 16.0 | 10.0 | 17.5 | 17.4 | / |
| CS-MS-14 | 14 | 14 | 23 | 24.0 | 21 | 25 | 3 | 16.5 | 10.0 | 17.5 | 17.4 | 16.5 |
| CS-MS-16 | 16 | 16 | 26 | 26.0 | 23 | 27 | 3 | 18.0 | 10.0 | 17.5 | 19.5 | 16.5 |
| CS-MS-18 | 18 | 18 | 29 | 31.0 | 27 | 33 | 3 | 19.5 | 11.5 | 19.5 | 20.5 | 18.0 |
| CS-MS-20 | 20 | 20 | 31 | 34.0 | 29 | 35 | 3 | 22.0 | 11.5 | 19.5 | 22.0 | 19.0 |
| CS-MS-22 | 22 | 22 | 33 | 36.0 | 31 | 37 | 3 | 21.5 | 11.5 | 19.5 | 23.5 | 20.5 |
| CS-MS-24 | 24 | 24 | 35 | 38.0 | 33 | 39 | 3 | 23.5 | 11.5 | 19.5 | 25.0 | 22.0 |
| CS-MS-25 | 25 | 25 | 36 | 39.0 | 34 | 40 | 3 | 26.5 | 11.5 | 19.5 | 26.5 | 23.5 |
| CS-MS-28 | 28 | 28 | 40 | 42.0 | 37 | 43 | 3 | 26.5 | 11.5 | 19.5 | 26.5 | 24.5 |
| CS-MS-30 | 30 | 30 | 43 | 44.0 | 39 | 45 | 3 | 26.5 | 11.5 | 19.5 | 25.0 | 24.5 |
| CS-MS-32 | 32 | 32 | 46 | 46.0 | 42 | 48 | 3 | 28.5 | 11.5 | 19.5 | 28.5 | 28.0 |
| CS-MS-33 | 33 | 33 | 47 | 47.0 | 42 | 48 | 3 | 28.5 | 11.5 | 19.5 | / | / |
| CS-MS-35 | 35 | 35 | 49 | 49.0 | 44 | 50 | 3 | 28.5 | 11.5 | 19.5 | 28.5 | 28.0 |
| CS-MS-38 | 38 | 38 | 53 | 54.0 | 49 | 56 | 4 | 33.5 | 14.0 | 22.0 | 32.2 | 31.0 |
| CS-MS-40 | 40 | 40 | 56 | 56.0 | 51 | 58 | 4 | 36.0 | 14.0 | 22.0 | 34.7 | 34.0 |
| CS-MS-43 | 43 | 43 | 59 | 59.0 | 54 | 61 | 4 | 38.5 | 14.0 | 22.0 | / | / |
| CS-MS-45 | 45 | 45 | 61 | 61.0 | 56 | 63 | 4 | 39.5 | 14.0 | 22.0 | 39.2 | 36.5 |
| CS-MS-48 | 48 | 48 | 64 | 64.0 | 59 | 66 | 4 | 46.0 | 14.0 | 22.0 | 44.7 | 42.0 |
| CS-MS-50 | 50 | 50 | 66 | 66.0 | 62 | 70 | 4 | 45.0 | 15.0 | 23.0 | 45.7 | 43.0 |
| CS-MS-53 | 53 | 53 | 69 | 69.0 | 65 | 73 | 4 | 47.0 | 15.0 | 23.0 | / | / |
| CS-MS-55 | 55 | 55 | 71 | 71.0 | 67 | 75 | 4 | 49.0 | 15.0 | 23.0 | 49.0 | 47.0 |
| CS-MS-58 | 58 | 58 | 76 | 78.0 | 70 | 78 | 4 | 55.0 | 15.0 | 23.0 | 52.0 | 50.0 |
| CS-MS-60 | 60 | 60 | 78 | 79.0 | 72 | 80 | 4 | 55.0 | 15.0 | 23.0 | 53.0 | 51.0 |
| CS-MS-63 | 63 | 63 | 83 | 83.0 | 75 | 83 | 4 | 55.0 | 15.0 | 23.0 | / | / |
| CS-MS-65 | 65 | 65 | 84 | 85.0 | 77 | 85 | 4 | 55.0 | 15.0 | 23.0 | 54.3 | 52.0 |
| CS-MS-68 | 68 | 68 | 88 | 88.0 | 81 | 90 | 4 | 55.0 | 18.0 | 26.0 | 55.3 | 52.7 |
| CS-MS-70 | 70 | 70 | 90 | 90.0 | 83 | 92 | 4 | 57.0 | 18.0 | 26.0 | 56.3 | 54.0 |
| CS-MS-75 | 75 | 75 | 98 | 98.0 | 88 | 97 | 4 | 62.0 | 18.0 | 26.0 | 56.3 | 54.0 |
| CS-MS-80 | 80 | 80 | 100 | 103.0 | 95 | 105 | 4 | 61.8 | 18.2 | 26.2 | 59.3 | 58.0 |
SiC Ceramic Lined CQB Stainless Steel Magnetic Centrifugal Pump Zero Leakage
The CQB Magnetic Centrifugal Pump transfers torque via magnetic force with no mechanical contact, ensuring zero leakage as the liquid is sealed within a stationary isolation sleeve.
Silicon Carbide Lined CQBF Magnetic Pump
The SiC Ceramic CQB-F Fluorine-lined Magnetic Pump features PVF2 (Polyvinylidene Fluoride) for its flow parts with a metallic shell for durability against mechanical impacts for inlet diameters below 32mm.
Silicon Carbide Lined Canned Pump Sealless Design for Leak-Free Operation
The Silicon Carbide Lined Canned Pump, a sealless design with pump and motor enclosed in a pressurized vessel filled with pumped media and powered by an electric cable assembly, eliminates rotating shaft seals for complete leak-free operation.
Silicon Carbide Lined External Gear Pump Reliable Pump Solutions
The Silicon Carbide Lined External Gear Pump, featuring external gears, comprising a driving gear, driven gear, pump body, cover, and safety valve.
Silicon Carbide Lined Internal Gear Pump Fluid Transfer Pump
The Silicon Carbide Lined Internal Gear Pump, features simple design, smooth operation, adjustable flow rate, and high pressure, transporting fluid via rotating gears.
Positive Displacement Silicon Carbide Submerged Pump Anti-Airlock & Cavitation
The Silicon Carbide Lined Submerged Pump is categorized into traditional (non-explosion-proof Zone 0 inside tank) and advanced (explosion-proof in both Zones) models based on material explosion-proof ratings.
High-Performance SiC Ceramic Liner Sleeve for Equipment Protection
The Silicon Carbide Ceramic Sleeve serves as a wear & corrosion-resistant liner for cylinders, pumps, valves, bearings, grinder drums, extending equipment lifespan by preventing metal wear-induced failures.
Premium SiC Mold for Glass Hot Pressing
Silicon Carbide Mold is sintered with high-purity SiC powder and is primarily used for glass molding via hot pressing.
