TA Aluminum Sample Pans901670.901
Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups) Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups) Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups) Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups) Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups) Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups)

Tzero Low-Mass Pans 901670.901 for TA Instruments Q20/Q200( Sample Cups)

TA Tzero 901670.901 Aluminum Sample Pans for TA Instruments T Zero Q20/Q200 .Manufacturer for TA crucibles and DSC sample pans .TA Instruments Thermal analysis crucibles good alternative sample cups . TA 901670.901


  • item no. :

    CS-TM-046-2
  • hits :

    2051
  • Suitable for : TA Instruments T Zero Q20/Q200

  • Material : Aluminum

  • Part NO : 901683.901

  • description

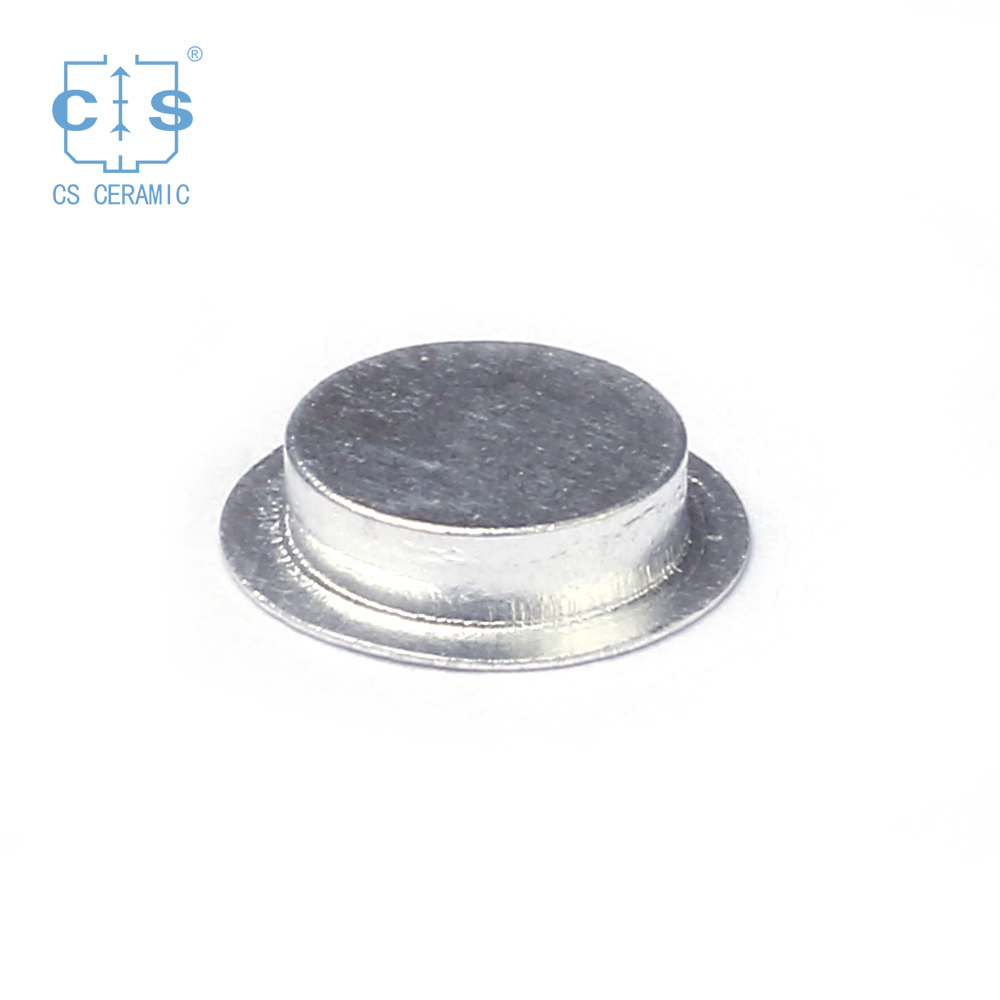

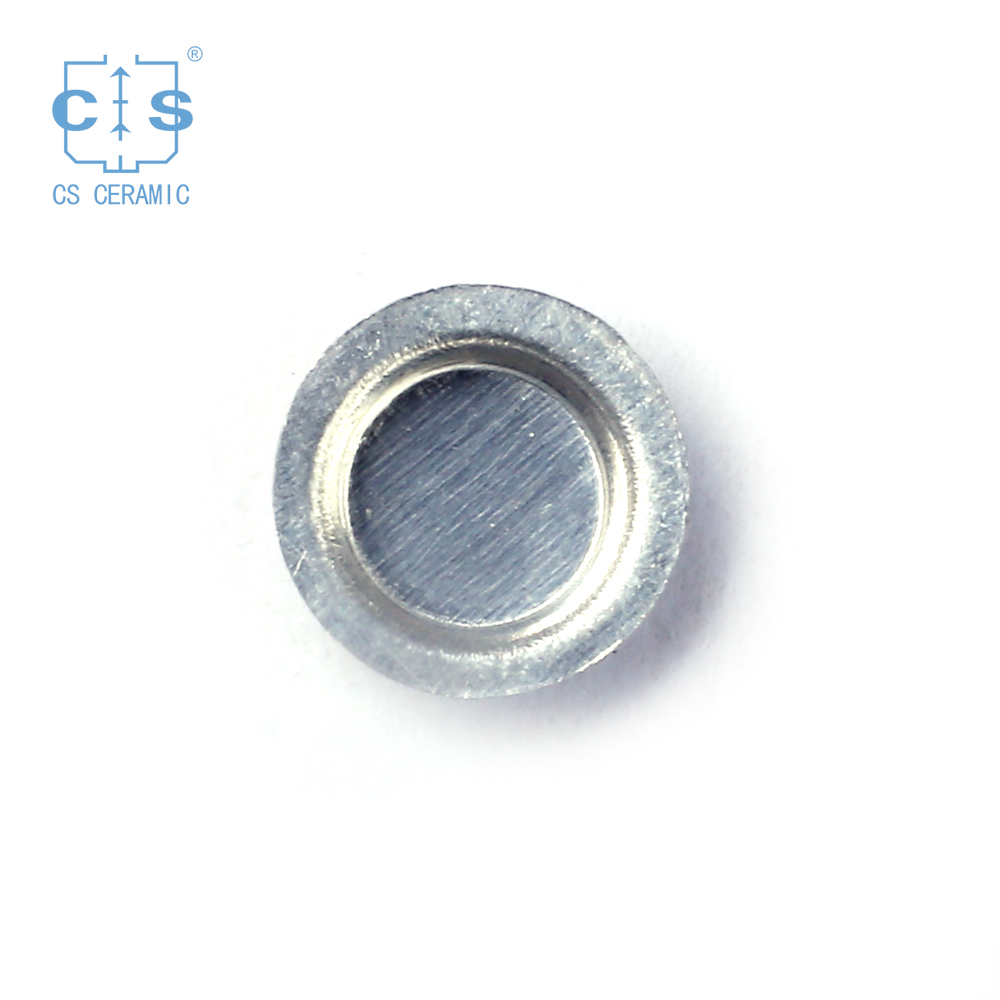

Product Item: Tzero Low-Mass Pans 901670.901 for TA Instruments ( Sample Cups)


Item info :

Type Sample pan /Crucible
Suitable for TA Instruments  T Zero
Part NO TA 901670.901
Material Aluminum
Internal volume 10 µL
Temperature Range: -180°C to 600°C
QTY/PKG 100PCS/BOX ;200PCS/BOX (Both available)
Brand CS CERAMIC
Original MADE IN CHINA


Usage:


Lightweight aluminum pans recommended for high performance analysis of small samples (< 10 mg).The pans have uniformly flat bottoms designed for very good contact with the Tzero cell sensors. When sealed with the Tzero Lid (P/N: 901671.901),the internal volume is 10 µL. This process requires the Tzero Sample Press Kit (P/N: 901600.901).




Aluminum sample pan and cover: applicable for non-volatile solid sample, like polymer and medicine. It’s widely used for melting, crystallization and vitrifaction test of polymer and thermoplasticity material; Sample vessel is bayonet type, not sealed.


Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.


Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.


Shipping:    We do international shipping for clients.




Special offer:  Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
