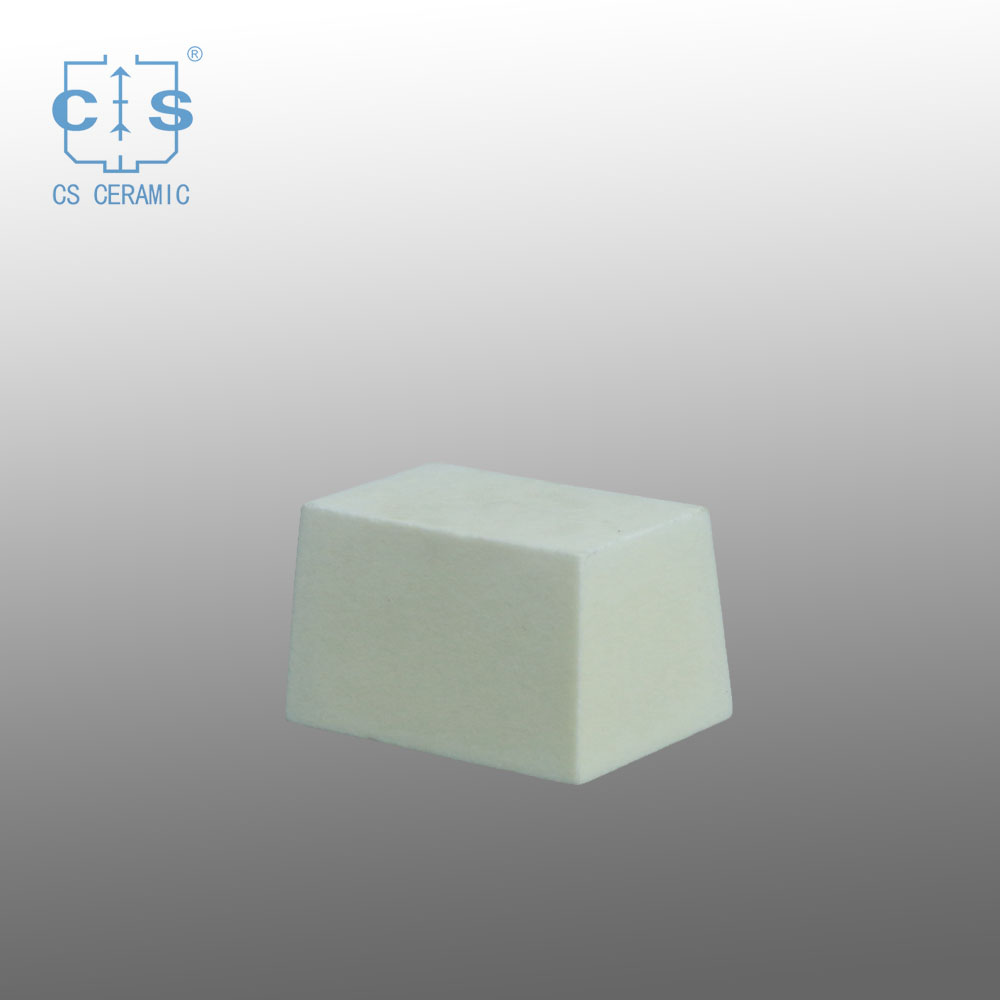

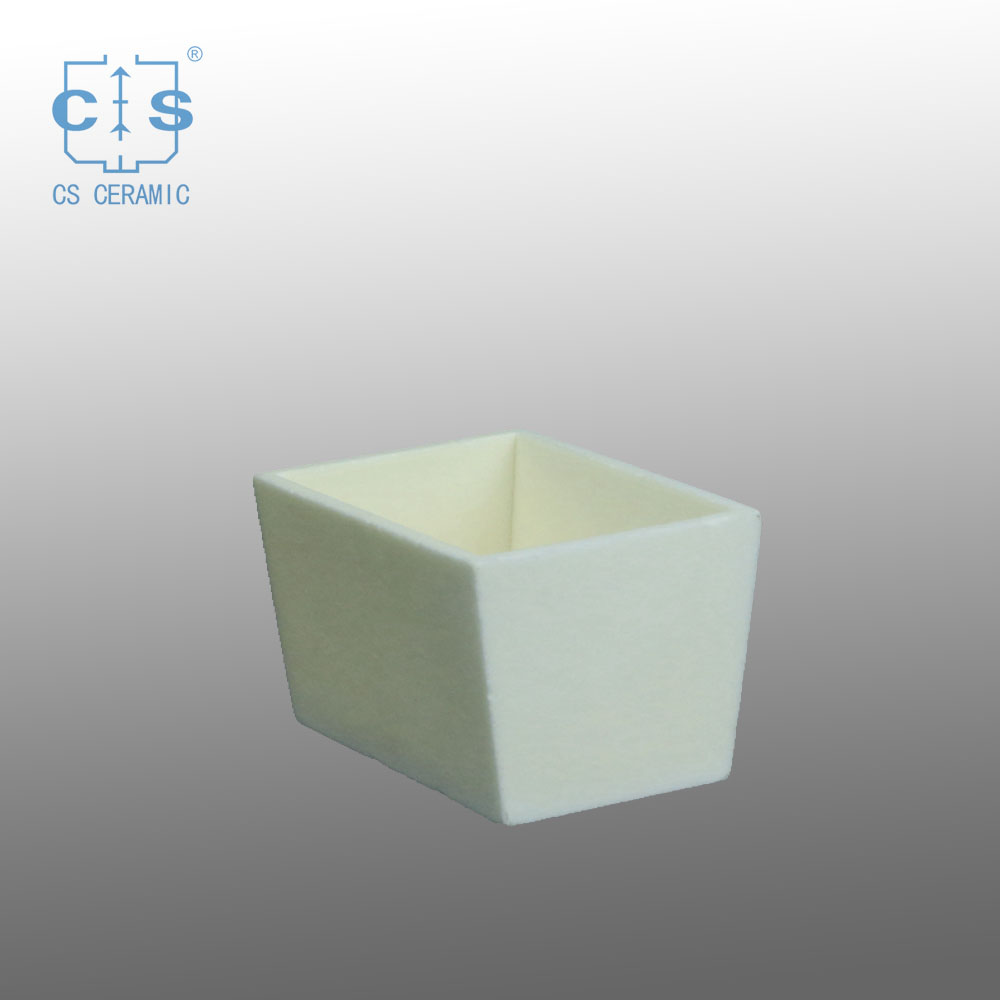

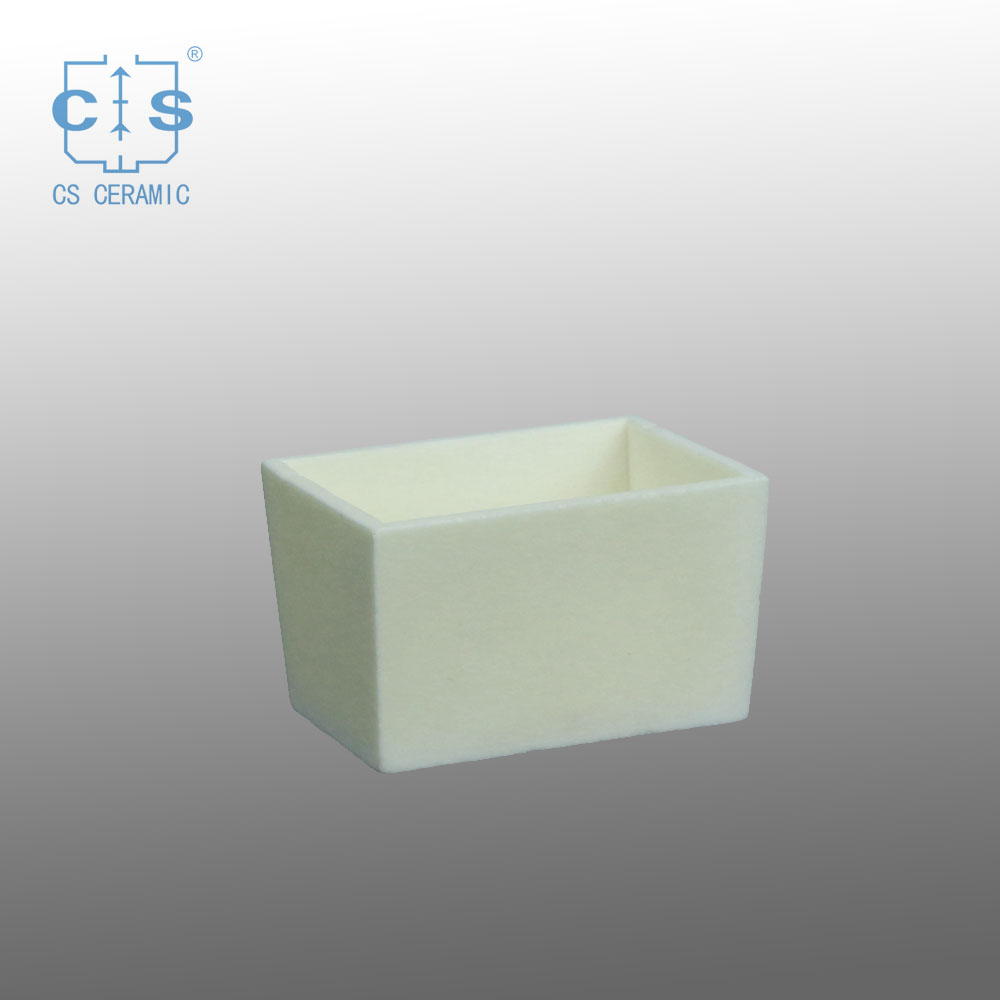

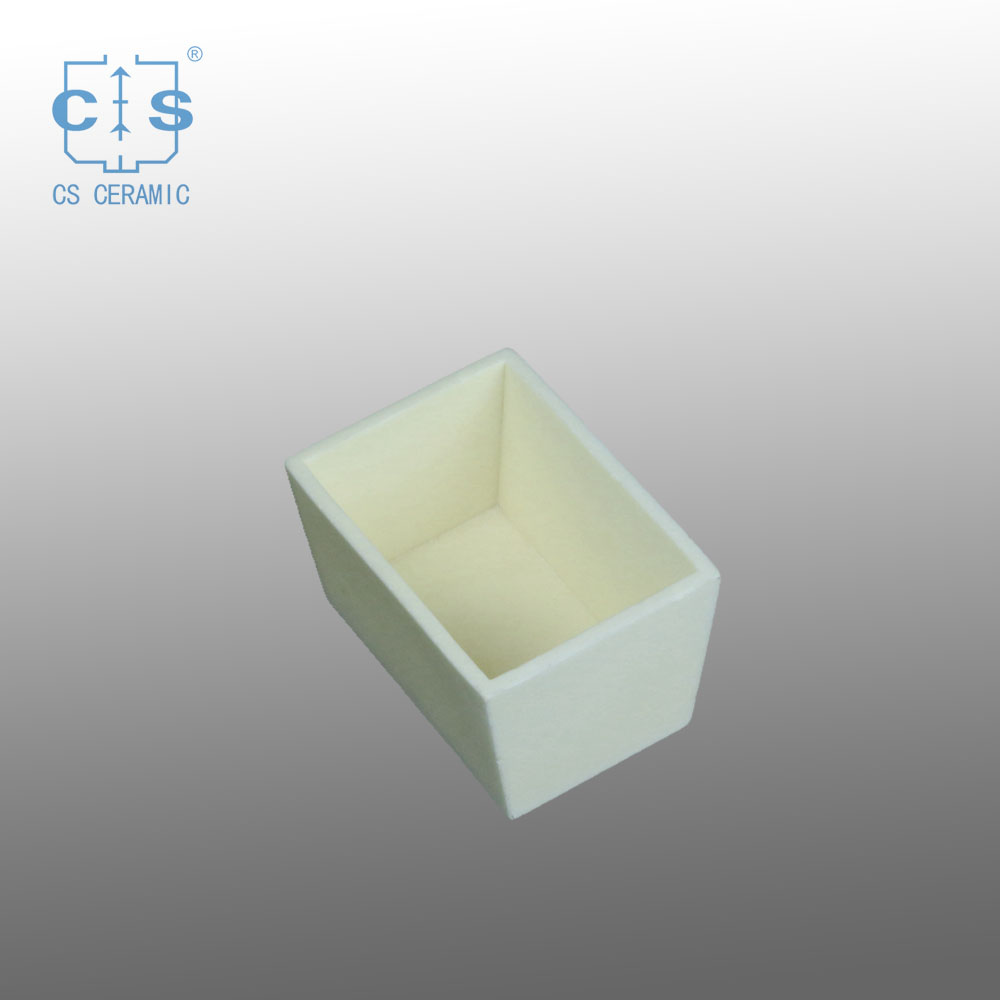

Alumina Trapezoid boat crucible as high temperature labware 99% al2O3.Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard.
item no. :
CS-AS-117-2Color :
WhiteMaterial : Alumina ceramic
Shape : Boat
• High Temperature Resistance: The trapezoid alumina crucible can withstand high temperatures of up to 1600°C, making it ideal for use in high-temperature applications such as melting metals and other materials.
• High thermal shock resistance: It can hold out thermal shock up to 1,000°C (1,832°F).
• Senior high chemical resistance: This type of boat is extremely tolerant to to the highest degree acids and alkalis.
• Low thermal conductivity: It has a moo caloric conductivity of 0.3 W/mK.
• High mechanical strength: This type of gravy boat has a senior high school mechanical strength of up to 200 MPa.
• Moo porosity: It has a low porosity of to a lesser extent than 0.1%.
• High physical phenomenon insulation: This typewrite of boat has a high electrical insulation of up to 20 kV/mm.
1. The trapezoid alumina crucible is a high-quality, durable ceramic boat that is perfect for use in a variety of laboratory and industrial applications. It is made from alumina crucible ceramic corundum, which is a strong and heat-resistant material.
2. It is designed with a trapezoid shape, which allows for easy handling and maneuvering. It also has a wide base, making it stable and secure when in use.
3. It is resistant to corrosion and is able to withstand temperatures up to 1600°C. This makes it ideal for use in high-temperature applications, such as melting metals and glass.
4. It is easy to clean and maintain, making it a great choice for any laboratory or industrial setting. It is also lightweight and easy to transport, making it a great choice for any application.
Trapezoid Alumina Crucible | ||||||||
Item No. |
Volume
(mm)
|
Length
(mm)
|
Width
(mm)
|
Height
(mm)
|
Wall thickness
(mm)
|
Bottom length
(mm)
|
Bottom width
(mm)
|
Weight |
CS-AS-117-2 | 5 | 45 | 22 | 14 | 2 | 36 | 14 | 19 |
CS-AS-117-1 | 6.5 | 30 | 20 | 15 | 2.2 | 27 | 19 | 15 |
CS-AS-117-4 | 7 | 60 | 17 | 10 | 2 | 51 | 15 | 16 |
CS-AS-117-3 | 8 | 55 | 25 | 15 | 2.2 | 41 | 21 | 22 |
CS-AS-117-5 | 10 | 60 | 25 | 15 | 2.5 | 50 | 21 | 29 |
CS-AS-117-7 | 10 | 75 | 17 | 15 | 2.5 | 65 | 11 | 30 |
CS-AS-117-6 | 10 | 60 | 30 | 15 | 2.5 | 50 | 21 | 32 |
CS-AS-117-8 | 20 | 75 | 35 | 15 | 3 | 67 | 30 | 48 |
CS-AS-117-12 | 25 | 120 | 30 | 15 | 3 | 113 | 21 | 65 |
CS-AS-117-9 | 25 | 80 | 40 | 18 | 2.5 | 74 | 17 | 80 |
CS-AS-117-10 | 40 | 80 | 55 | 15 | 2.8 | 70 | 32 | 100 |
CS-AS-117-15 | 45 | 120 | 100 | 15 | 3.5 | 110 | 90 | 233 |
CS-AS-117-11 | 65 | 90 | 60 | 18 | 2.8 | 80 | 5 | 90 |
CS-AS-117-13 | 75 | 120 | 60 | 20 | 3.3 | 110 | 51 | 95 |
CS-AS-117-14 | 100 | 100 | 77 | 27 | 3 | 97 | 75 | 215 |
Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
Moisture absorption | % | 0 | 0 | 0 | ||
Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
Thermal properties | Maximum use temperature | ℃ | 1450 | 1800 | 1850 | |
Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
Dielectric constant (100MHz) | (E) | 9.5 |
Q1. What is a trapezoid alumina crucible?
It is used for dethaw and holding molten materials. It is successful from alumina and corundum, and is shaped like a trapezoid.
Q2. What are the benefits of trapezoid alumina crucible?
The trapezoid alumina crucible is highly tolerable to energy traumatise and corrosion, qualification it nonpareil for use in high-temperature applications. It overly has superior thermal conductivity, which helps to evenly undefined ignite throughout the boat.
Q3. What are the dimensions of trapezoid alumina crucible?
The dimensions depending on the manufacturer, plainly typically straddle from 4” to 12” in length and 2” to 6” in width.
Q4. What is the lead time for the alumina ceramic crucible?
The lead time is dependent on the size and quantity required. Please contact us for more information.
1. Use a damp cloth to remove any dust or dirt.
2. Fill a bucket with warm water and add a few drops of mild dish soap.
3. Undefined a soft fabric into the soapy water and wring it out.
4. Gently scrub up the Trapezoid Alumina Crucible Ceramic Corundum sauceboat with the cloth, taking care to avoid scratching the surface.
5. Rinse the boat with clean water and dry out it with a soft cloth.
6. If thither are any intractable stains, utilise a soft-bristled brush to gently scrub up them away.
7. Finally, utilise a easy fabric to flush the boat to a shine.
1. Ensure that the trapezoid alumina crucible is unfreeze from whatsoever visible defects.
2. Test the effectiveness of the trapezoid alumina crucible to assure it put up withstand the temperatures and pressures it wish be exposed to.
3. Check the dimensions of the trapezoid alumina crucible to see they adjoin the specified requirements.
4. Control that the trapezoid alumina crucible is made from the correct materials and that it is of the highest quality.
