Alumina Crucible Ceramic Boat. Good corrosion resistance,high temperature resistance,good thermal shock, no easy to crack,high slip casting density.
item no. :
CS-AS-086Color :
WhiteMaterial : Alumina ceramic
Volume : : 1-2000ml
Shape : Boat


	1. High temperature resistance:Alumina crucible with semicircular bottom can withstand temperatures upward to 1600°C.
2. High thermic shock resistance: Alumina melting pot undefined gravy holder with semicircular bottom can withstand energy shocks up to 800°C.
3. High physics strength: Alumina crucible undefined gravy holder with Semicircular fathom has a flexural strength of up to 300MPa.
4. High chemical stability: Aluminum oxide crucible undefined gravy holder with semicircular bottom is tolerant to most acids and alkalis.
5. High electrical insulation: It has a dielectric effectiveness of up to 10KV/mm.




1. This alumina crucible with semicircular bottom is successful of high-grade alumina ceramic material, providing superior heat underground and durability.
2. Its curving bottom design ensures even heat statistical distribution and prevents the boat from tipping over.
3. It is nonpareil for use in high-temperature applications such as melting metals and alloys.
4. The sauceboat is available in various sizes to meet different needs, and is easy to clean and maintain.

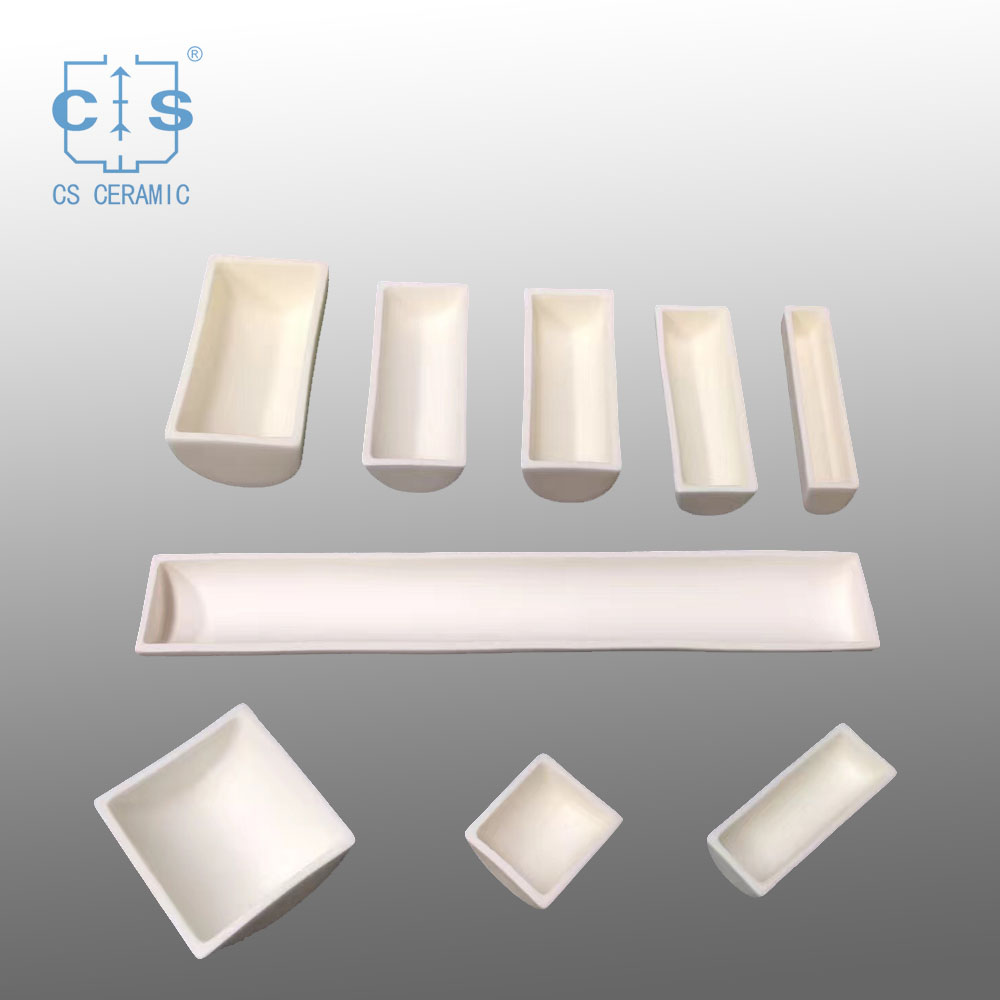

						Alumina Ceramic boat with Semicircular Bottom

						Item NO.

						Length (mm)

						Width (mm)

						Height (mm)

						Remark

						CS-AS-086-1

						150

						40

						20

						/

						CS-AS-087

						100

						65

						30

						/

						CS-AS-089

						100

						40

						25

						/

						CS-AS-093

						100

						20

						15

						/

						CS-AS-093-1

						100

						20

						20

						/

						CS-AS-093-4

						100

						30

						20

						/

						CS-AS-093-5

						100

						40

						20

						/

						CS-AS-094

						60

						54

						24

						/

						CS-AS-095

						65

						25

						16

						/

						CS-AS-096

						55

						35

						22

						/

						CS-AS-097

						40

						35

						25

						/

						CS-AS-098

						40

						25

						17

						/

						CS-AS-099

						38

						34

						18

						/

						CS-AS-099-1

						50

						40

						20

						/

						CS-AS-099-12

						60

						30

						15

						with cover

						CS-AS-099-13

						160

						75

						40

						/

						CS-AS-099-14

						103

						55

						30

						/

						CS-AS-099-2

						80

						40

						17

						/

						CS-AS-099-3

						245

						40

						20

						/

						CS-AS-099-4

						290

						40

						22

						/

						CS-AS-099-8

						100

						50

						30

						/

						CS-AS-099-9

						250

						40

						18

						/

						CS-AS-119

						100

						40

						25

						with cover

						CS-AS-120

						100

						40

						20

						with cover

						CS-AS-123

						100

						20

						15

						with cover

						CS-AS-124

						60

						54

						24

						with cover

						CS-AS-124-2

						100

						20

						20

						with cover

						CS-AS-124-3

						100

						30

						20

						with cover

						CS-AS-124-4

						100

						50

						30

						with cover


















































































































































































































































































































































































	1. It can be old in the laboratory for sample preparation, such as melting and evaporating.
2. It can be secondhand in the chemical industry for the production of chemicals and pharmaceuticals.
3. It can be old in the metallurgical industry for the smelting of metals and alloys.
4. It can be used in the electronics industry for the production of semiconductors and strange components.



| Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
| Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
| Moisture absorption | % | 0 | 0 | 0 | ||
| Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
| Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
| Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
| Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
| Thermal properties | Maximum use temperature | ℃ | 1450 | 1800 | 1850 | |
| Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
| Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
| Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
| Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
| Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
| Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
| Dielectric constant (100MHz) | (E) | 9.5 | ||||



	Q1. What is an alumina melting stool undefined gravy holder with a semicircular bottom?
A1. An alumina crucible ceramic manna from heaven bearer with a semicircular penetrate is a typewrite of ceramic gravy bearer used for heating and melting materials in a testing run aground setting. It is made of alumina, a typewrite of undefined material, and has a curved bottom for soft removal of the material.
Q2. What are the advantages of using an alumina melting pot undefined sauceboat with a semicircular bottom?
A2. The advantages of victimisation an aluminium oxide melting pot undefined gravy boat with a curved penetrate admit its durability, resistance to high temperatures, and its power to indefinable undefined heat. It also has a curved penetrate for easy remotion of the material.
Q3. What materials tin be heated and liquified in an aluminum oxide melt pot undefined windfall gravy boat with a snakelike bottom?
A3. An alumina crucible ceramic sauceboat with a incurvate penetrate can be used to awaken and unravel a variety show show of materials, including metals, alloys, and ceramics.
Q4. How do you strip an alumina melting thron ceramic boat with a curving bottom?
A4. To clean an aluminum oxide melting pot undefined boat with a curved bottom, use a easy cloth and a modest detergent. wash with warm water and dry out goodness earlier use.
Q5. What is the uttermost temperature an aluminium oxide crucible ceramic bunc sauceboat with a hooklike fathom tin withstand?
A5. An aluminum oxide crucible ceramic manna from heaven boat with a curving fathom tin withstand temperatures upwards to 2,000°C (3,632°F).
Q6. Where can I buy upward an aluminum oxide crucible ceramic boat with a curving bottom?
A6. You can purchase in an Al oxide melting pot indefinite boat with a semicircular bottom from a variety show show of online retailers or testing ground supply stores.





	1. Start by rinsing the alumina crucible ceramic boat with curved bottom with warm water.
2. Utilise a soft-bristled sweep to mildly scrub away any dirt or debris.
3. Rinse the boat with distilled water to remove any soap residue.
4. Take into account the gravy holder to air dry before use.




	1. The Alumina Crucible Ceramic Boat should be free from any visible cracks, chips, or other defects.
2. The Semicircular Bottom should be smooth and even with no acutely edges or burrs.
3. The Alumina Crucible Ceramic Boat should be able to hold out high temperatures without any deformation or discoloration.
4. The aluminium oxide Crucible Ceramic Boat should be able to hold its shape and not warp or bend when heated.
















1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
