Lab Ceramic Beakers

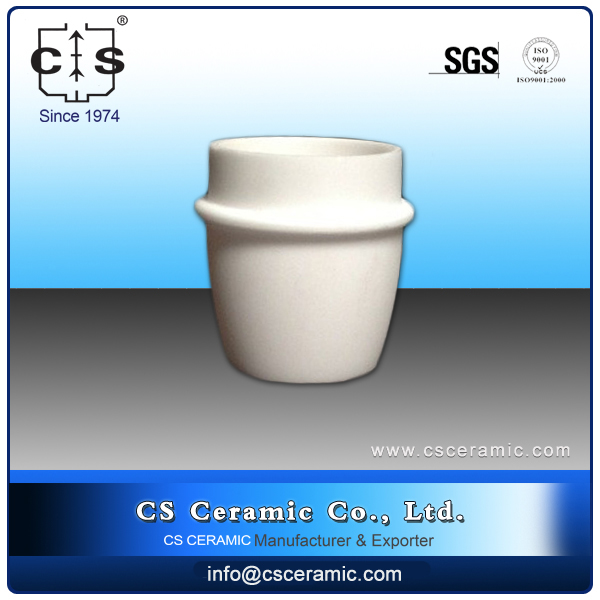

Lab Porcelain Ware Ceramic Beakers with flange without Lip

Lab Porcelain Ware Ceramic Beakers with flange without Lip

1.Hard porcelain
2.For Lab use.
3.Good thermal shock property and mechanical strength.


  • item no. :

    CS-301
  • Descriptiion : Lab Porcelain Ware Ceramic Beakers with flange without Lip glazed

  • Size : Dia. 90mm

  • Material : ceramic

  • Ship way : by express/air/sea

  • description

Product Item: Lab Porcelain Ware Ceramic Beakers with flange without Lip

Product size:

Item NO. Rim diam.(mm) Bottom diam.(mm) Height(mm)
C-301 90 85 145

Chemical composition:
Si02: 51%
Al2O3: 36.5%
Fe2O3: 0.15%
Cao: 0.47%
Mgo: 1.68%
K2O: 3.2%
Na2O: 0.79%

Physical Parameters:
Acid resistance: more than 99.5%
Alkali resisitance: more than 97%
Temperature resistance: 1380 degrees celsius for unglazed
Wear resistance:  less than 0.03g/cm2
Moh's hardness:  7 grade
Water absorption rate: less than 0.5%
Bulk density: 2.2-2.7g/cm3
Compressive strength: more than 300Mpa
Breaking strength: more than 40 Mpa
Thermal stability: 1400 degree celsius to room temperature


More dimension:

Item NO. Item NO. Rim diam.(mm) Bottom diam.(mm) Height(mm)
C-301 C-301 90 85 145
C-302 C-302 70 65 120


Special offer:      Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
