Alumina crucible Use for Muffle furnace and other Heating Electric Stove .Stocks at different sizes available with Competitive price.


  • item no. :

    CS-OA-192
  • hits :

    257
  • Suitable for : OEM

  • Material : Alumina Ceramic

  • Part NO : Square shape

  • description

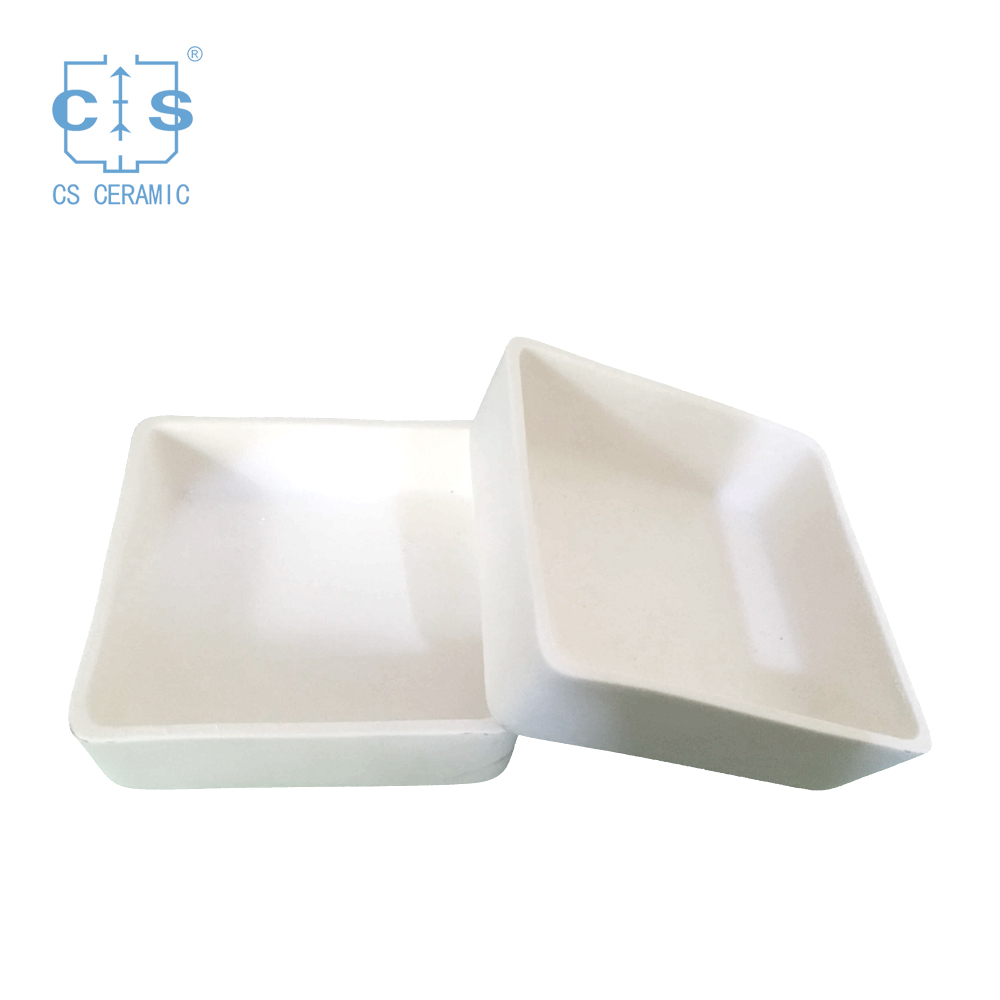

Product Item:lab Muffle furnace Square ceramic crucible /Square alumina sample pans


Size details :


Item NO. Item name CAPACITY Size
CS-OA-192 Alumina Square crucible 130mL L70mm×W70mm×H40mm
CS-OA-192-1 200mL

L85mm×L85mm×H40mm
CS-OA-192-2 200mL L100mm×L100mm×H35mm
CS-OA-192-3 300mL L100mm×L100mm×H40mm
CS-OA-192-4 1400mL L160mm×L160mm×H78mm



Material  details :


Chemical ingredient



Al2O3

≥99

R2O

≤0.2

Fe2O3

≤0.1

SiO2

≤0.2

Volume density (g/cm2)

≥3.80

Apparent porosity (%)

≤1

Bending strength (Mpa)

≥350

Compression strength (Mpa)

≥12000

Dielectric constant ∑(1MHz)

2

Max. service temperature (°C)

1800

Specifications

Purpose

External dimension (mm)

External diameter

Height

Wall thickness

The best roasting vessel to burn color electric powder, phosphor powder, rare earth materials, and precious metal materials and to roast high, medium and low ceramic capacitor NTC, PTC piezoelectric ceramics, lithium cobalt oxide and lithium manganese oxide powder



15-300

mm

15-300

mm

≥2


OEM Size :As a professional factory, most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.


Shipping:    We do international shipping for clients.
