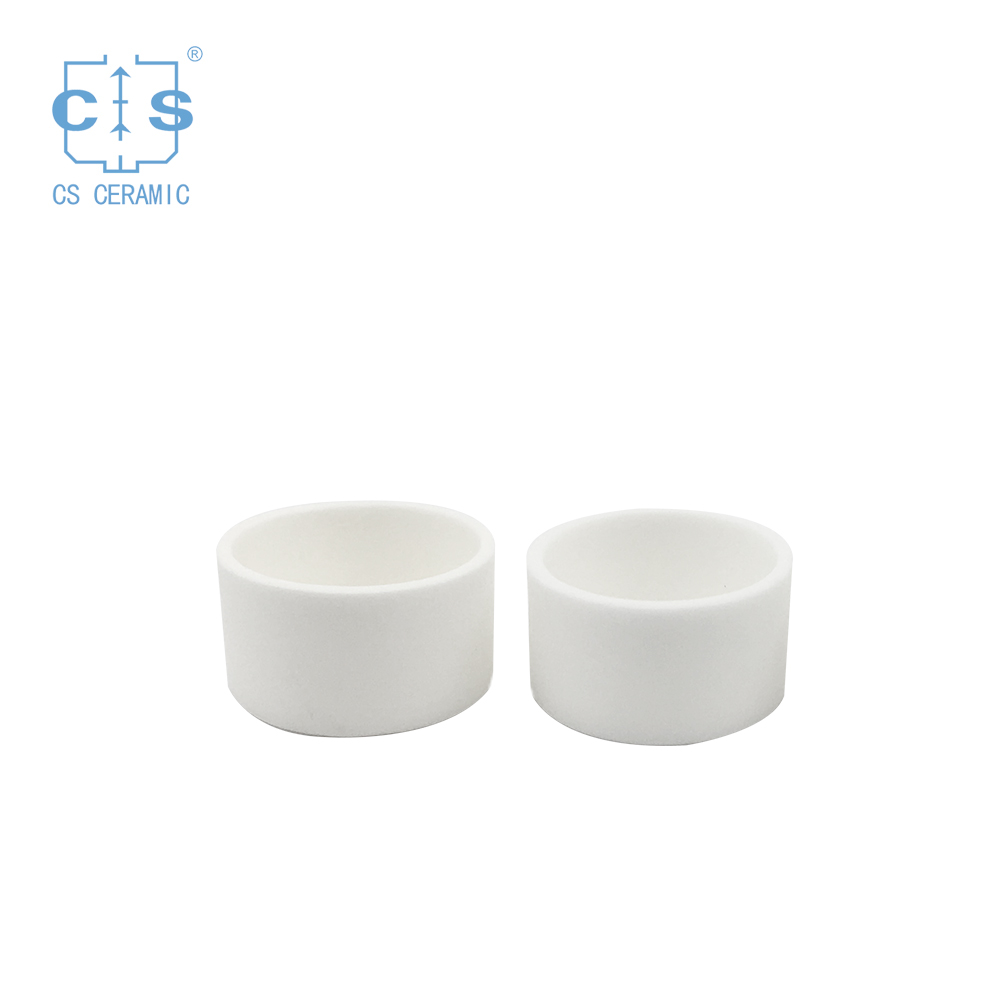

Muffle furnace Cylindrical Alumina crucible
laboratory Muffle furnace Cylindrical Alumina crucible /Round sample tray

laboratory Muffle furnace Cylindrical Alumina crucible /Round sample tray

Use for Muffle furnace and other Heating Electric Stove ,Thermal analysis consumables.Stocks at different sizes available with Competitive price


  • item no. :

    CS-OA-191
  • hits :

    224
  • Suitable for : OEM

  • Material : Alumina Ceramic

  • Part NO : Cylindrical shape

  • description

Product Item:laboratory Muffle furnace Cylindrical Alumina crucible /Round sample tray


Size details :


Item NO. Item name CAPACITY Size
CS-OA-191 Muffle furnace Cylindrical Alumina crucible  5.0mL D35.0mm×H8.5mm
CS-OA-191-1 5.0mL D36.5mm×H9.0mm
CS-OA-191-2 3.0mL D37.5mm×H6.0mm
CS-OA-191-3 200mL D100mm×H40mm

Material  details :


Chemical ingredient



Al2O3

≥99

R2O

≤0.2

Fe2O3

≤0.1

SiO2

≤0.2

Volume density (g/cm2)

≥3.80

Apparent porosity (%)

≤1

Bending strength (Mpa)

≥350

Compression strength (Mpa)

≥12000

Dielectric constant ∑(1MHz)

2

Max. service temperature (°C)

1800

Specifications

Purpose

External dimension (mm)

External diameter

Height

Wall thickness

The best roasting vessel to burn color electric powder, phosphor powder, rare earth materials, and precious metal materials and to roast high, medium and low ceramic capacitor NTC, PTC piezoelectric ceramics, lithium cobalt oxide and lithium manganese oxide powder



15-300

mm

15-300

mm

≥2




As a professional factory, most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.



Shipping:    We do international shipping for clients.
