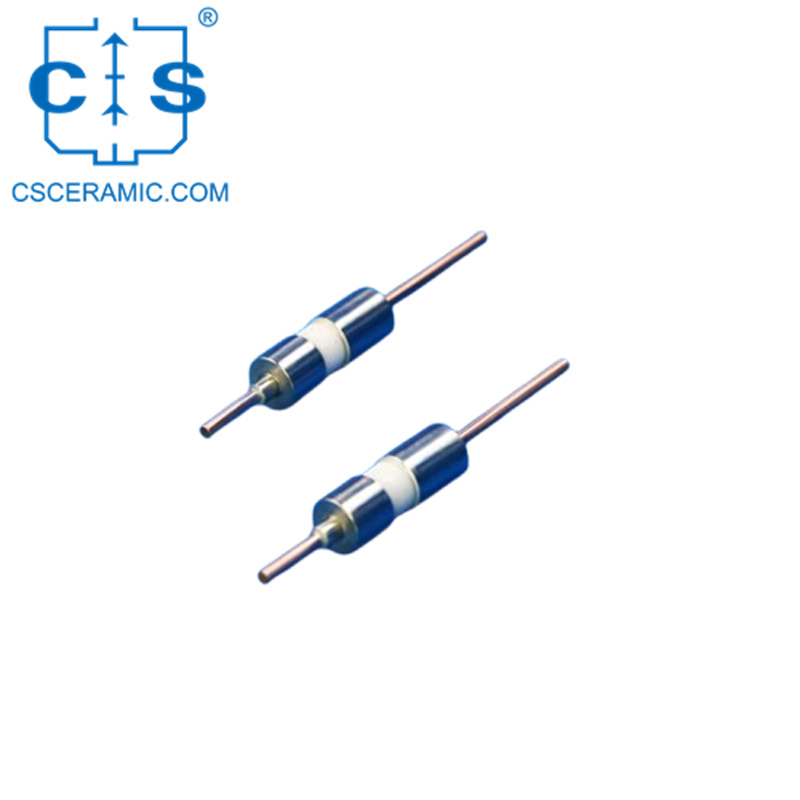

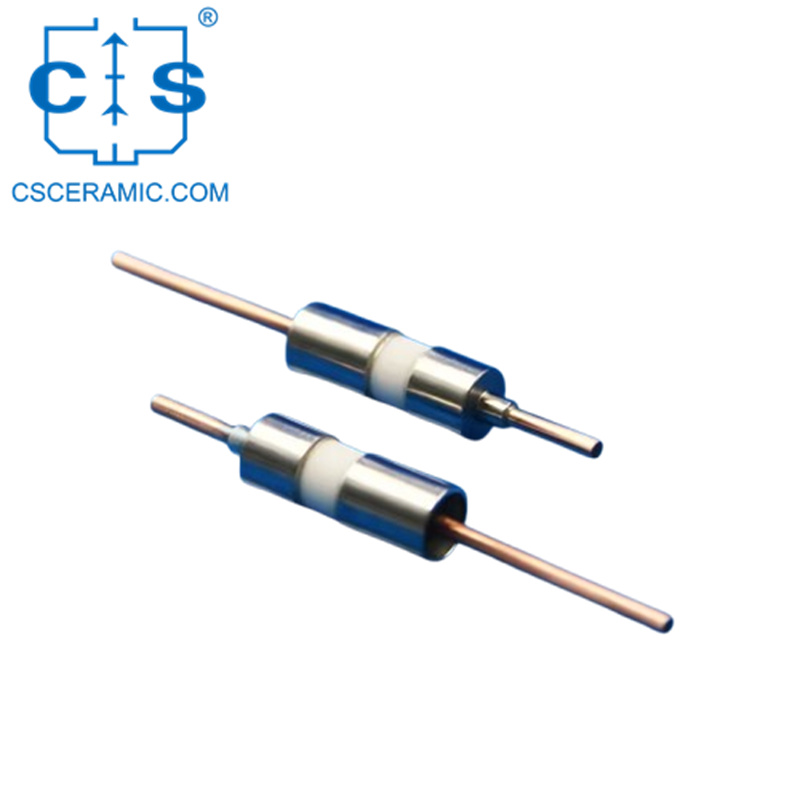

igh-Voltage Ceramic Electrode for Vacuum Chambers & Coating Machines

The ceramic electrode transfers high-voltage signals to vacuum chambers, featuring 12KV max working voltage, 200A max current, and is ideal for vacuum coating machines and electronic vacuum devices.

item no. :
CS-TCDJ-1001
Material : Al2O3

contact now catalogue

description

Properties of Ceramic Vacuum Electrode

Exceptional Insulation: Our ceramic electrode boasts excellent insulation properties, ensuring safe and reliable operation in high-voltage environments.
High-Voltage Resistance: Designed to withstand extreme voltages, the maximum working voltage can reach up to 12KV, making it ideal for demanding electrical applications.
High-Current Capability: With a maximum working current of 200A, this ceramic electrode can handle high currents without compromising performance or safety.
Durable and Reliable: Crafted from high-quality materials, our ceramic electrode is built to last, providing consistent and reliable performance over time.
Versatile Applications: Suitable for a wide range of electronic and electrical components, including vacuum switch tubes, klystrons, microwave tubes, and other high-voltage devices, our ceramic electrode is a versatile solution for your electrical needs.

Applications of Ceramic Vacuum Electrode

Efficient Signal Transfer: Our ceramic electrode is designed to transfer high-voltage signals seamlessly to the vacuum chamber body, ensuring efficient and reliable operation.
Versatile Applications: Ideal for a wide range of vacuum coating machines and other electronic vacuum devices, this ceramic electrode offers versatility and flexibility for various applications.
Durable and Reliable: Crafted from high-quality ceramic materials, our electrode is built to last, providing consistent and reliable performance even in demanding environments.
Enhanced Insulation: With excellent insulation properties, our ceramic electrode ensures safe and secure operation, protecting against electrical shock and other hazards.
Optimized for Vacuum Devices: Specifically engineered for use in vacuum environments, our electrode is designed to withstand the extreme conditions of vacuum chambers and other electronic vacuum devices.

Size Chart of Ceramic Vacuum Electrode

Please provide drawing and parameter requirements for customization.

Ceramic Electrode for Vacuum Coating Machine
Item NO.	Sealing seat thread	Electrode rod threaded/flat structure
CS-TCDJ-1001	M24	M8
CS-TCDJ-1002	M24	flat structure
CS-TCDJ-1003	M25	M10
CS-TCDJ-1004	M25	M6
CS-TCDJ-1005	M25	flat structure
CS-TCDJ-1006	M25	M12
CS-TCDJ-1007	M28	M10
CS-TCDJ-1008	M28	M12
CS-TCDJ-1009	M32	M8
CS-TCDJ-1010	M33	flat structure
