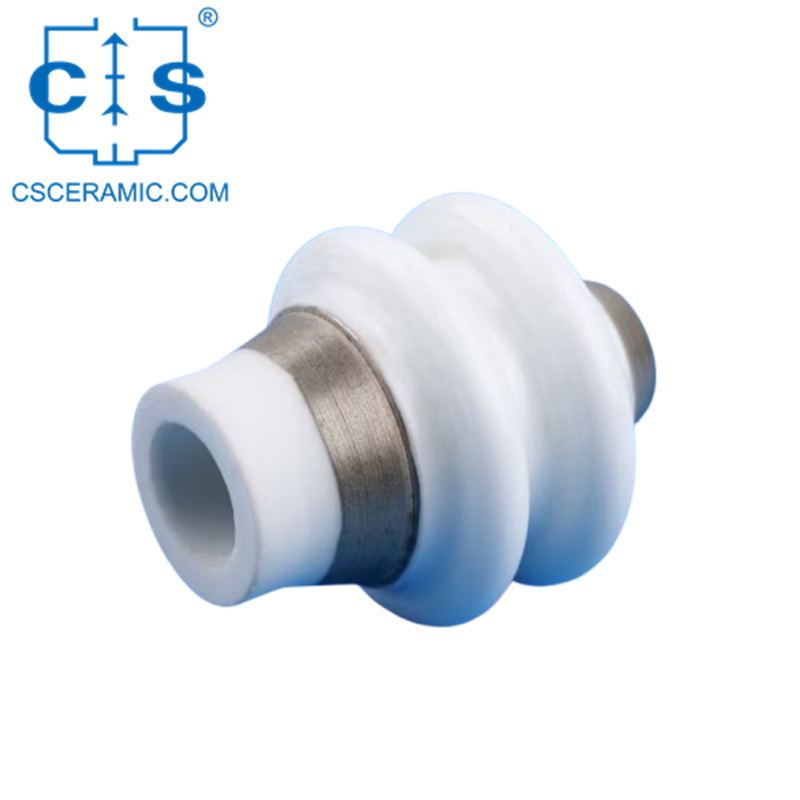

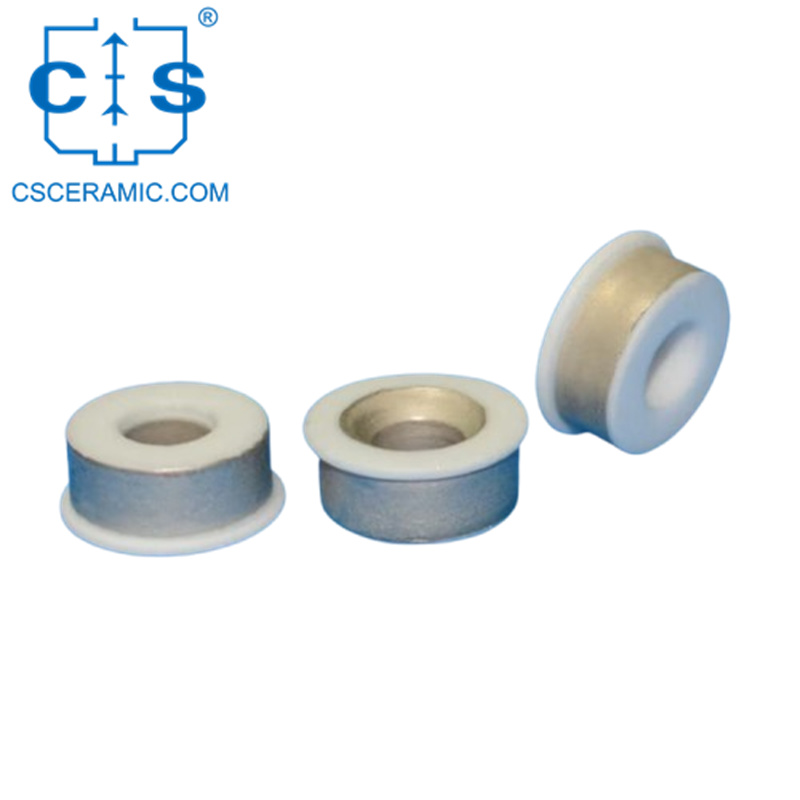

High-Temp Resistant Ceramic Ring for Fiber Laser Cutters

The ceramic ring for laser cutting machines, resistant to high temp & corrosion, focuses, collimates, transmits laser beams, protecting the head from damage & contamination.

item no. :
CS-D32M14
Material : Al2O3

contact now catalogue

description

Properties of Ceramic Ring

High-Temperature and Corrosion-Resistant: Designed to withstand extreme temperatures and corrosive environments, ensuring sustained performance in demanding applications.
Excellent Oxidation Resistance: With superior oxidation resistance, the ceramic rings maintain their integrity and functionality over extended periods of use.
Low Thermal Expansion Coefficient: The small thermal expansion coefficient ensures dimensional stability, preventing distortion or cracking even under thermal stress.
Stable and Reliable Performance: These rings provide a stable and reliable work environment for the laser cutting machine, enhancing accuracy and precision in cutting operations.
Long Service Life: Constructed from durable materials, the ceramic rings offer a long service life, reducing the need for frequent replacements and lowering maintenance costs.

Applications of Ceramic Ring

Laser Beam Management: The primary function of these ceramic rings is to focus, collimate, and efficiently transmit the laser beam, ensuring precise and accurate cutting.
Laser Head Protection: The robust design of our ceramic rings protects the laser head from collisions and contamination, extending the lifespan of your equipment.
High-Quality Material: Made from molybdenum-manganese metallized ceramic, these rings offer superior durability and resistance to high temperatures and corrosive environments.
Enhanced Performance: With improved focusing and collimating capabilities, our ceramic rings help to optimize the performance of your laser cutting machine, resulting in faster cutting speeds and better cut quality.
User-Friendly: Easy to install and maintain, our ceramic rings are designed to minimize downtime and keep your laser cutting machine running smoothly.

Size Chart of Ceramic Ring

Please provide drawing and parameter requirements for customization.

Ceramic Ring for Laser Cutting Machine
Item NO.	Name	Maximum Outer Dia. (mm)	Lower Outer Dia. (mm)	Height (mm)	M (Thread)
CS-D32M14	Ceramic Rings	32	28	12	M14
CS-D28M11	Ceramic Rings	28	24.5	12	M11
CS-D25M10	Ceramic Rings(OSPR)	25	18	19	M10
CS-D21.5M8	Ceramic Rings(OSPR-3D)	21.5	—	14	M8
CS-D24M8	Ceramic Rings(WSX-Mini)	24	20	12	M8
CS-D17.8M8	Ceramic Rings(OSPR-3D)	17.8	15	12.6	M8
CS-D19.5M8	Ceramic Rings(JQ-3D)	19.5	16	12.5	M8
CS-D31M11	Ceramic Rings(PLST)	31	26	13.5	M11
CS-D28.7M11	Ceramic Rings(IPG)	28.7	23.3	10.5	M11
CS-D32M12	Ceramic Rings(TL)	32	28	12	M12
CS-D28M12	Ceramic Rings(TL)	28	24.5	12	M12

Tags : Laser Cutting Head Ceramic Protector Resistant Ceramic Component for Lasers Ceramic Ring for Laser Cutters Fiber Laser Cutting Machine Ceramic Ring High-Temp Ceramic Ring for Lasers
