Rectangular Alumina Crucibles
Square Alumina Ceramic Crucible Combustion Boat with Cover

Square Alumina Ceramic Crucible Combustion Boat with Cover

Alumina boat ceramic crucible has good corrosion resistance,high temperature resistance,good thermal shock, no easy to crack,high slip casting density.



  • item no. :

    CS-AS- 108
  • Color :

    White
  • Material : Alumina ceramic

  • Shape : Boat

  • Cover : With

  • description

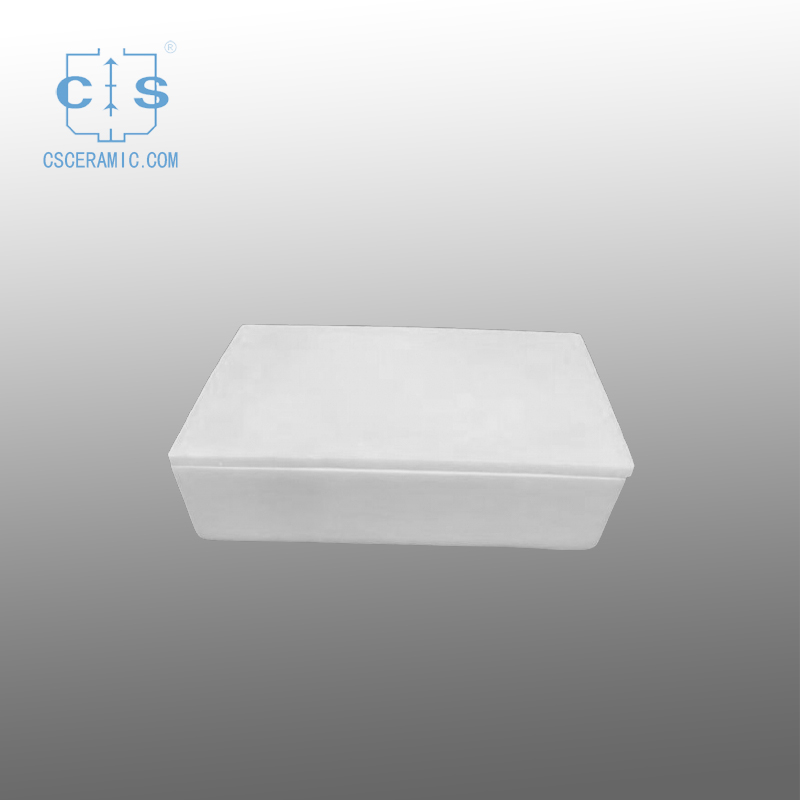

Square Alumina Ceramic Crucible Combustion Boat with Cover

Advantages

1. High temperature resistance: The Square Alumina Crucible undefined Boat with wrap up is capable of withstanding temperatures up to 1800°C .
2. Durability: The Square aluminum oxide melting pot undefined gravy holder with Cover is made of high-grade alumina, making it highly tolerable to corrosion and wear.
3. Versatility: The Square Alumina Crucible undefined Boat with wrap up is suitable for a wide straddle of applications, including melting, evaporating, and distilling.
4. Cost-effectiveness: The Square Alumina Crucible Combustion Boat with Cover is an affordable option for laboratories, qualification it a outstanding value for money.
5. Safety: The Square Alumina melting pot Combustion Boat with Cover is designed with a secure lid to prevent unintended spills and splashes.



Description

1. This Square Alumina Crucible undefined Boat with Cover is successful of high-grade aluminum oxide material, providing first-class durability and heat resistance.
2. It is designed with a square up shape and comes with a cover to keep any spills or accidents.
3. It is perfect for use in a variety of laboratory applications, such as melting, evaporating, and combustion.
4. It is easy to strip and maintain, making it a great choice for some laboratory setting.

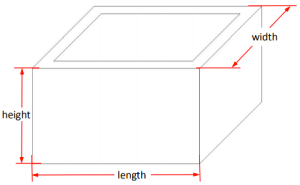

Size details

Square Alumina Crucible Combustion Boat with Cover
Item NO. Volume length (mm) width (mm) height (mm) Item NO. Volume length (mm) width (mm) height (mm)
CS-AS-182 1 45 8 6 CS-AS-190 150 100 100 25
CS-AS-149 1 45 8 6 CS-AS-112 154 90 65 30
CS-AS-183 3 25 15 15 CS-AS-191 170 90 90 30
CS-AS-148 4 25 15 15 CS-AS-114 191 90 60 40
CS-AS-171 4 20 20 17 CS-AS-135 216 90 60 45
CS-AS-125 7 30 20 17 CS-AS-132 228 80 80 40
CS-AS-172 9 50 25 10 CS-AS-108-1 257 120 60 40
CS-AS-116-1 15 50 20 20 CS-AS-145 257 120 80 30
CS-AS-117 15 50 20 20 CS-AS-192 260 100 100 35
CS-AS-126 15 50 20 20 CS-AS-136 329 90 90 45
CS-AS-128 21 60 30 15 CS-AS-193 330 115 115 35
CS-AS-184 26 50 25 35 CS-AS-146 347 120 80 40
CS-AS-116 28 60 30 20 CS-AS-141
362 100 100 40
CS-AS-129 28 60 30 20 CS-AS-194
370 200 100 25
CS-AS-109-3 31 100 20 20 CS-AS-196
510 120 120 50
CS-AS-137 32 100 20 21 CS-AS-197
520 140 140 38
CS-AS-127
32 50 40 20 CS-AS-174
550 100 100 60
CS-AS-150
35 50 25 35 CS-AS-162
616 150 150 30
CS-AS-185
40 50 50 25 CS-AS-198
750 150 150 50
CS-AS-130
44 60 30 30 CS-AS-199
800 200 100 50
CS-AS-111
48 100 30 20 CS-AS-147
1072 160 160 45
CS-AS-110
66 100 40 20 CS-AS-176
1264 150 150 90
CS-AS-186
68 65 65 25 CS-AS-175
1286 140 140 70
CS-AS-131
70 75 75 15 CS-AS-200
1460 180 180 60
CS-AS-173
75 100 30 30 CS-AS-201
1480 200 200 50
CS-AS-187
84 65 65 30 CS-AS-177
1696 150 150 80
CS-AS-115
72 90 60 20 CS-AS-202
2400 250 155 80
CS-AS-188
110 70 70 30 CS-AS-203
2600 200 200 80
CS-AS-142
110 120 60 18 CS-AS-204
2830 300 180 70
CS-AS-189
115 65 65 35 CS-AS-178
3823 200 200 100
CS-AS-108-2
123 120 60 20 CS-AS-179 6009 250 250 100
CS-AS-140
130 100 50 30 CS-AS-180
8394 330 330 80





CS-AS-181 16948 330 330 160

OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry

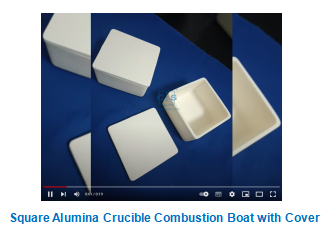

Products Display




Applications


1. Chemical analysis: Alumina crucibles are commonly used for heating and analyzing samples in a laboratory setting. The square shape of this crucible allows for more efficient use of space in the oven or furnace, and the wrap up helps to prevent contamination of the sample

2. Metal melting: Alumina crucibles are also functional for melting and molding metals, particularly those with high melting points. The high thermal conductivity of alumina allows for even heating of the metal, and the cover helps to retain heat and keep oxidization of the metal.

3. Crystal growth: aluminium oxide crucibles can be used in the work of crystal growth, particularly for materials that need high temperatures and chemical substance purity. The square up shape of this crucible provides a more horse barn base for crystal growth, and the cover helps to maintain a restricted environment.

4. High-temperature reactions: Alumina crucibles are often secondhand in high-temperature reactions, such as the synthesis of ceramics or the production of certain chemicals. The square up shape of this melting pot allows for more efficient use of quad in the furnace or oven, and the cover helps to maintain a controlled environment and prevent contamination.



Parameters of Alumina Ceramic


Item Test Condition 95% Al2O3 99% Al2O3 99.5% Al2O3
Physical properties Density g/cm3 >3.6 3.89 3.96
Moisture absorption % 0 0 0
Mechanical properties ROHS Hardness ≥85 ≥89 ≥89
Flexural strength psiX103 20℃ 358 550 550
Compressive strength psiX103 20℃ 2068(300) 2600(377) 2600(377)
Fracture toughness Mpa.m3/2 K(l c) 4.3 5.6 6
Thermal properties Maximum use temperature 1450 1800 1850
Thermal expansion coefficient 1X10-6/℃ (25-1000℃) 7.6 7.9 8.2
Thermal shock resistance Tc 250 200 200
Thermal conductivity w/mok 20℃ 16 30 30.4
Electrical properties Volume resistivity Ohm/cm2 100℃ >1013 >1014 >1014
Dielectric breakdown strength KV/mm 8.7(220) 8.7(220) 8.7(220)
Dielectric constant (E) 1MHz25℃ 9 9.7 9.7
Dielectric constant (100MHz) (E) 9.5




FAQs


Q1. What is a Square aluminum oxide thaw pot Combustion Boat with Cover?
A1. A square up upwards aluminium oxide Crucible Combustion gravy holder with Cover is a testing ground joyride used to take and fire u materials in a qualified environment. It is made of alumina ceramic and is designed to resist high temperatures.

Q2. What are the benefits of victimization a Square aluminium oxide Crucible undefined Boat with Cover?
A2. The square up aluminum oxide melting pot Combustion gravy holder with Cover provides a safe and effective way to heat materials in a laboratory setting. It is studied to withstand high temperatures and is resistant to corrosion and thermal shock.

Q3. What materials can be heated in a square up aluminium oxide melting pot Combustion sauceboat with Cover?
A3. The Square aluminum oxide Crucible undefined gravy bearer with wrap up can be old to heat a variety of materials, including metals, minerals, and organic fertilizer compounds.

Q4. What is the level bes temperature that a Square Al oxide melting can Combustion sauceboat with Cover can withstand?
A4. The Square Alumina melting pot undefined gravy holder with Cover can withstand temperatures upward to 1800°C

Q5. How hanker does it take to ignite materials in a square upward Alumina Crucible Combustion gravy boat with Cover?
A5. The time it takes to wake materials in a Square aluminum oxide Crucible undefined Boat with wrap upwards wish motley depending on the stuff being heated and the temperature required.

Q6. Is a Square aluminum oxide melt pot undefined manna from heaven holder with Cover safe to use?
A6. Yes, the Square aluminum oxide melting pot undefined sauceboat with wrap up is designed to be safety and efficient to employ in a laboratory setting.




How to clean square alumina crucible with cover


1. Wear protective gloves and safety goggles when handling the Square Alumina Crucible Combustion gravy boat with Cover.
2. Utilise a soft cloth to wipe away whatsoever undefined or soil from the surface of the Square Alumina Crucible undefined Boat with Cover.
3. Take a bucket with warm, saponaceous irrigate and submerge the Square Alumina melting pot Combustion gravy holder with Cover in the water. Allow it to soak for at to the lowest degree 10 minutes.
4. Use a soft-bristled sweep to scrub out any stubborn dirt or grime from the Square Alumina Crucible undefined Boat with Cover. wash it off with clean water and dry out it with a easy cloth.



Quality testing standards


1. The Square Alumina Crucible Combustion Boat with Cover should be free from any visible defects.
2. The square up Alumina Crucible undefined Boat with Cover should be able to withstand high temperatures without any damage.
3. The square up aluminum oxide Crucible undefined sauceboat with Cover should be able to hold the desired amount of material without any leakage.
4. The square up Alumina Crucible Combustion Boat with wrap up should be able to provide a uniform heat distribution.



Production Process






Packing



Why choose us?

1. We offer personalized and customized services to meet your individual needs.

2. We are experienced professionals with a proven track record of success.

3. We provide excellent customer service and timely responses to all inquiries.

4. We have competitive rates and work to ensure that you get the best value for your money.

5. We use the latest technology and tools to ensure that your project is completed to the highest standards.

6. We take pride in our work and strive for complete customer satisfaction.
