High-Resistivity Aluminum Nitride Plate Excellent Insulation & Thermal Conductivity

Aluminum nitride plate with excellent thermal conductivity, wear & corrosion resistance, ideal for high-temp environments.

item no. :
CS-AIN-RY1001
Material : Aluminum Nitride

contact now catalogue

description

Properties of Aluminum Nitride Plate

Excellent Insulation: The hot-pressed aluminum nitride plate boasts superior electrical insulation, with a breakdown voltage exceeding 19KV/mm.
Outstanding Thermal Conductivity: With thermal conductivity reaching up to 180W/(m*K), it ensures efficient heat transfer and rapid heating.
High Mechanical Strength: Designed to withstand rigorous industrial applications, it exhibits robust mechanical strength and durability.
Wear & Corrosion Resistance: Resistant to wear and corrosion, the heating element can endure the erosion of various acids, alkalis, and molten metals.
Versatile Applications: Ideal for a wide range of industrial, analytical, and scientific research applications, it offers precise temperature control and safe operation.

Applications of Aluminum Nitride Plate

Versatile Usage: Our hot-pressed aluminum nitride plates are widely utilized in high-temperature environments and wear-intensive applications.
High-Temp Performance: Perfect for high-temperature heaters, they offer exceptional thermal stability and resistance to heat-related degradation.
Electronic Cooling Solutions: Ideal for integrated circuits and electronic component heat sinks, they enhance heat dissipation and prolong component lifespan.
Industrial Equipment: Suitable for metallurgical equipment and nuclear magnetic resonance (NMR) devices, they ensure reliable performance in demanding conditions.
Durability & Wear Resistance: Designed to withstand wear and tear, they maintain their integrity and functionality even in the harshest environments.

Cutomized Design of Aluminum Nitride Plate

Please provide drawing and parameter requirements.

Hot Pressed Aluminum Nitride Plate Rectangular
Item no.	Max. Length(mm)	Max. Width（mm)	Max. Height（mm)
CS-AIN-RY1001	＜500	＜500	＜350

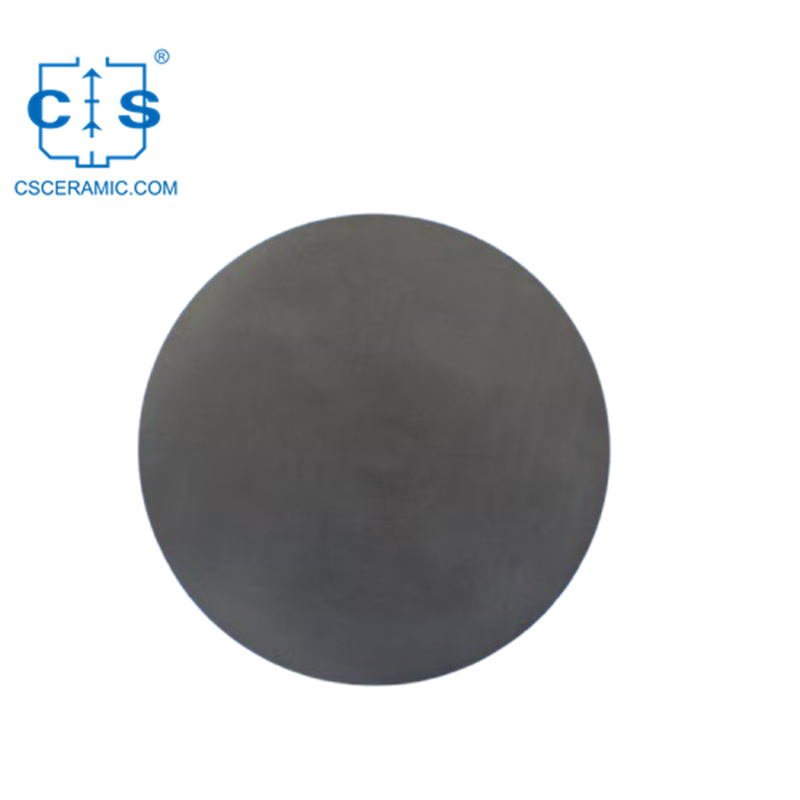

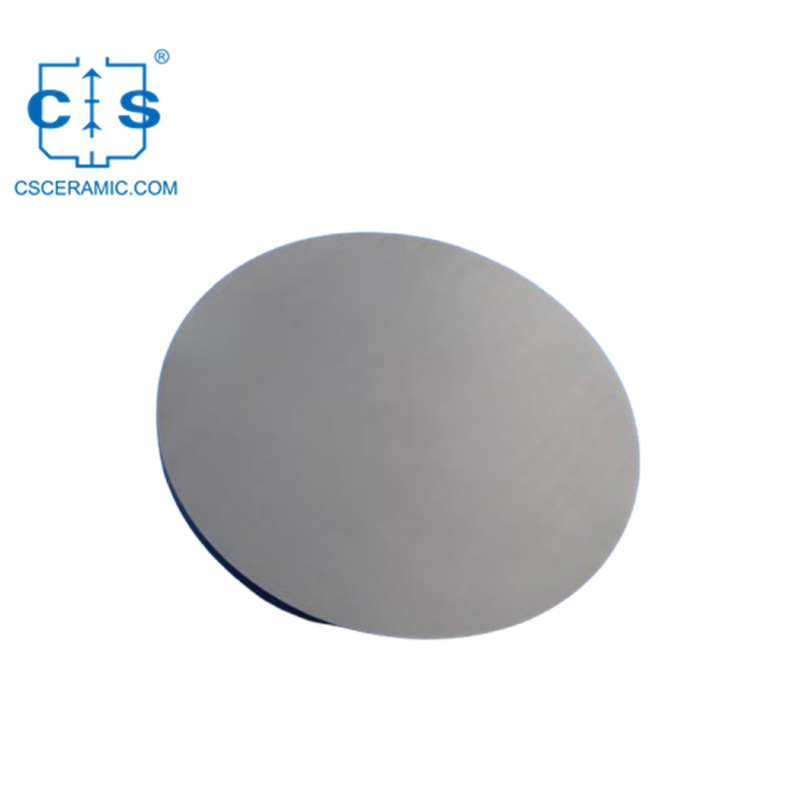

Hot Pressed Aluminum Nitride Plate Round
Item no.	Max. Outer Dia.(mm)	Max. Height(mm)
CS-AIN-RY2001	＜500	＜500

Tags : Aluminum Nitride Plate High-Temp Aluminum Nitride Hot-Pressed Ceramic Plate Wear-Resistant AlN Plate Corrosion-Resistant Aluminum Nitride
