Read Moreitem no. :
CS-AIN-AA001Material : Aluminum Nitride
Shape : Conical
Conical Aluminum Nitride Crucible Advantages:
1. High thermal conductivity
2. High flexural strength
3. High temperature
4. Good electrical insulation
5. Resistance to corrosion and erosion
6. Low dielectric constant and loss
7. Wear resistance
8. High electrical resistivity

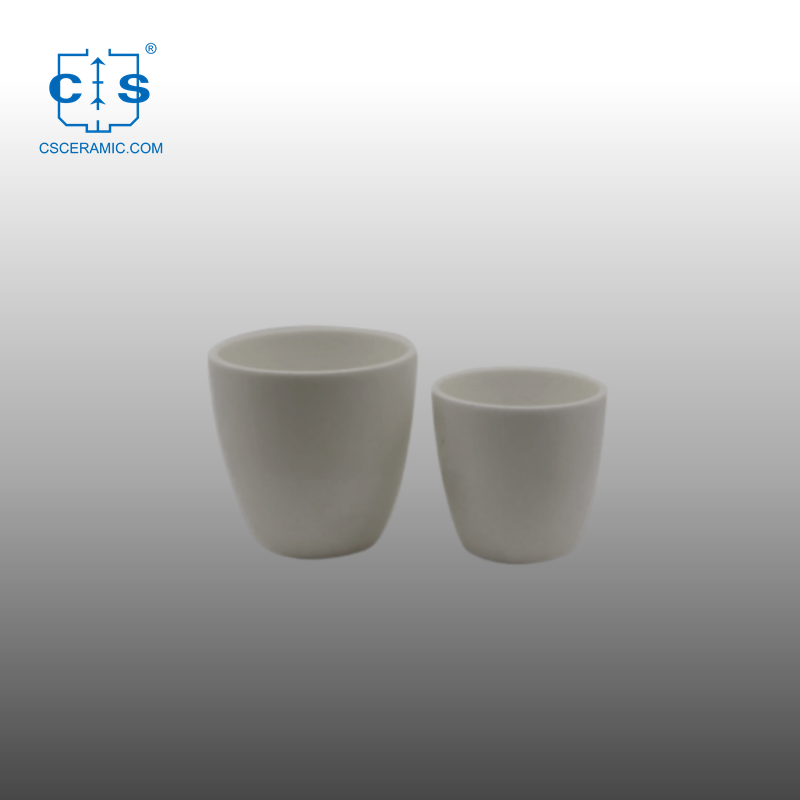

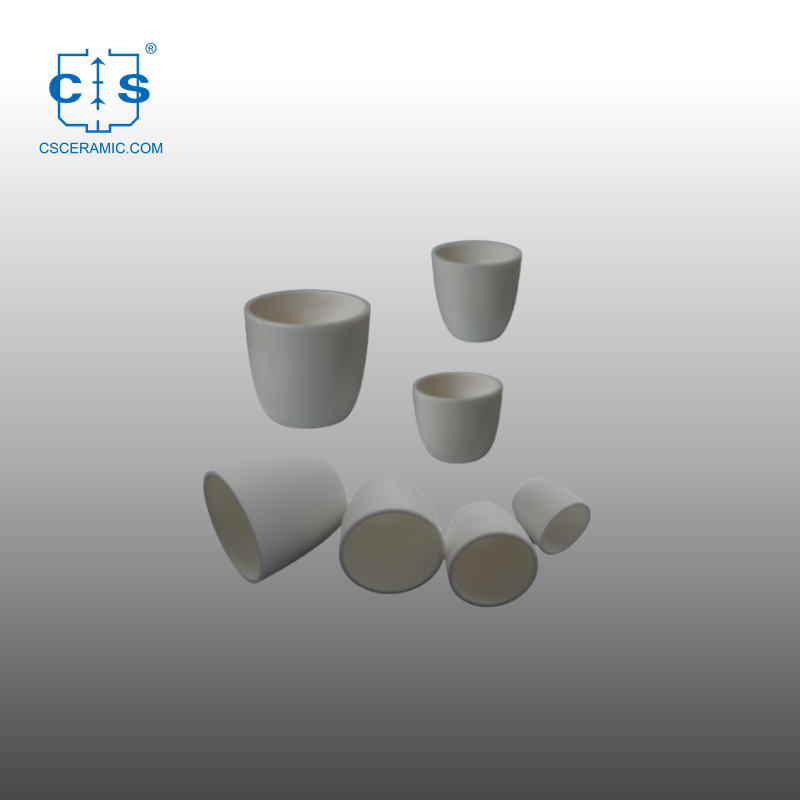

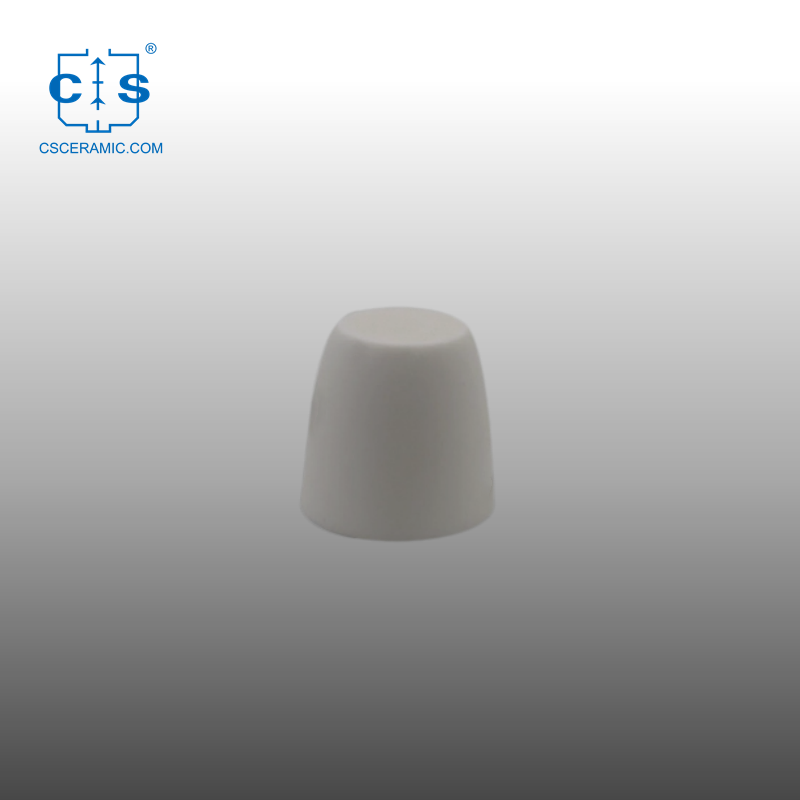

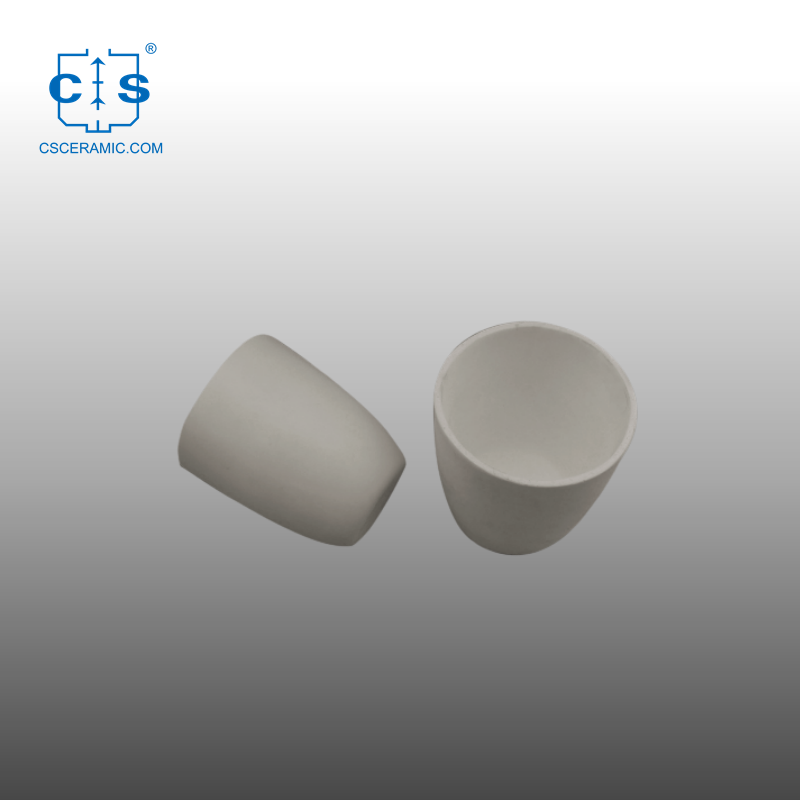

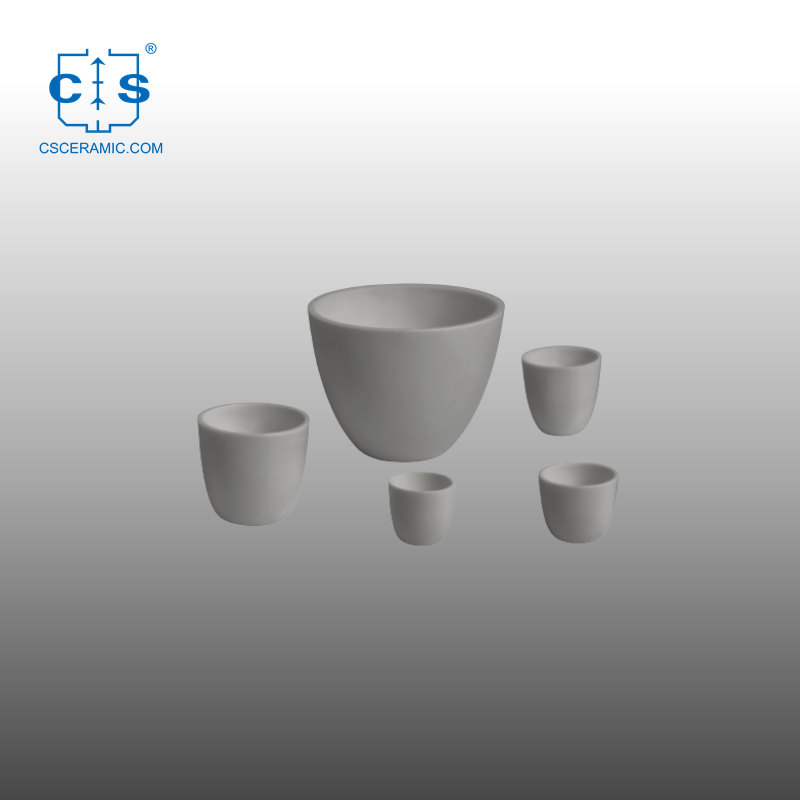

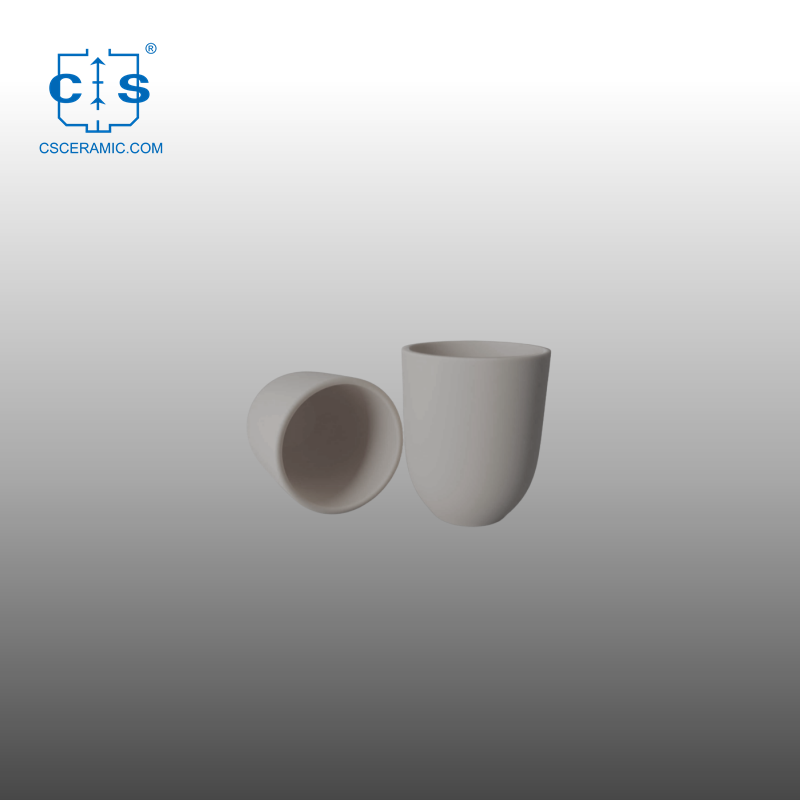

Conical Aluminum Nitride Crucible Description:
1. Aluminum nitride ceramic crucible is a container used for vacuum evaporation and metal smelting, especially suitable for vacuum evaporation of aluminum because it can be heated in vacuum with low vapor pressure, even if decomposition will not pollute aluminum.
2. The Aluminum Nitride Crucible is made of pure aluminum nitride material that ensures high thermal conductivity, excellent resistance to thermal shock, and high mechanical strength.
3. In the semiconductor industry, aluminum nitride crucible is used to replace quartz crucible to synthesize arsenide, which can completely eliminate the pollution of Si to GaAs and obtain high-purity products.
4. This crucible provides a stable and uniform heating surface that is ideal for experiments that require precision and accuracy.
Usage of Aluminum Nitride Crucibles:
1.Aluminum nitride ceramics will react chemically with inorganic acids and strong bases, water and other liquids and slowly dissolve with them, so it cannot be directly immersed in such substances for use. But aluminum nitride can resist the corrosion of most molten salts, including chlorides and cryolite(Na3AlF6).
2.Due to the aluminum nitride crucible has small bottom, it usually needs to be placed on a clay triangle when heated, and cannot be directly contacted with metal or wooden bearing after strong heating. It cannot be cooled suddenly after heating, and needs to be cooled naturally on the clay triangle, or gradually cooled on the asbestos gauze, and finally taken out with a crucible tong.
3.Stirring the substance until nearly evaporated, then turn off the heat, and steam it with the remaining heat.
Conical Aluminum Nitride Crucible Size details:
Aluminum Nitride Ceramic Crucible | ||||||
Item NO. |
TOP
Diameter
(mm)
|
Bottom
Diameter
(mm)
|
Height
(mm)
|
Thickness
(mm)
|
Purity | coefficient of thermal conductivity |
CS-AIN-AA001 | 5-150 | 5-150 | 5-100 | 3-10 | 99% | 170-220W/m.k |
CS-AIN-AA002 | 25 | 18 | 22 | 3.5 | 99% | ≥170W/m.k |
CS-AIN-AA003 | 28 | 21 | 13 | 3.5 | 99% | ≥170W/m.k |
CS-AIN-AA004 | 24 | 16 | 32 | 3.5 | 99% | ≥170W/m.k |
CS-AIN-AA005 | 37 | 24 | 45 | 4 | 99% | ≥170W/m.k |
CS-AIN-AA006 | 39 | 24 | 49 | 4 | 99% | ≥170W/m.k |
CS-AIN-AA007 | 45 | 27 | 39 | 5 | 99% | ≥170W/m.k |
CS-AIN-AA008 | 46 | 25 | 40 | 5 | 99% | ≥170W/m.k |
CS-AIN-AA009 | 90 | 53 | 76 | 6 | 99% | ≥170W/m.k |
CS-AIN-AA010 | 83 | 52 | 106 | 6 | 99% | ≥170W/m.k |
CS-AIN-AA011 | 88 | 53 | 85 | 6 | 99% | ≥170W/m.k |
CS-AIN-AA012 | 112 | 70 | 132 | 7 | 99% | ≥170W/m.k |
CS-AIN-AA013 | 113 | 62 | 140 | 7 | 99% | ≥170W/m.k |
CS-AIN-AA014 | 100 | 68 | 150 | 7 | 99% | ≥170W/m.k |
CS-AIN-AA015 | 120 | 75 | 143 | 7 | 99% | ≥170W/m.k |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Properties:
Material Properties of AIN Ceramic | ||||||
Property Sort | Characteristic | Unit | Property Index | |||
AN170 | AN200 | AN220 | ||||
Basic Property | Color | - | Grey | Grey | Beige | |
Water absorption | % | 0 | 0 | 0 | ||
Volume density | g/cm3 | ≥3.30 | ≥3.30 | ≥3.26 | ||
Surface roughness | um | 0.1~0.6 | 0.1~0.6 | 0.1~0.6 | ||
Camber | (length ‰) | ≤2‰ | ≤2‰ | ≤2‰ | ||
Thermal Property | Thermal conductivity (20℃) | W/m.k | ≥170 | ≥200 | ≥220 | |
Coefficient of thermal expansion | (20℃~300℃) | (*10-6/℃) | 4.6 | 4.6 | 4.5 | |
(40℃~800℃) | 5.2 | 5.2 | 5.2 | |||
Mechanical Property | Bending strength | MPa | ≥450 | ≥300 | ≥200 | |
Modulus strength | GPa | 320 | 310 | 310 | ||
Moh's hardness | - | 8 | 8 | 8 | ||
Electrical Property | Dielectric strengh | KV/mm | ≥17 | ≥16 | ≥15 | |
Volume resistivity | Ω.cm | ≥1014 | ≥1014 | ≥1013 | ||
Dielectric constant | - | 9 | 8.6 | 8.5 | ||
Dielectric loss | *10-4 | 2.98 | 2 | 2 |
Conical Aluminum Nitride Crucible Applications:
1. Semiconductor manufacturing - The conical aluminum nitride crucibles can be used in the production of semiconductors. The materials used in semiconductor manufacturing require high temperature and vacuum conditions to prevent contamination, making the use of this crucible ideal.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of aluminum nitride crucible, such as shape, dimension, quantity, application etc.
Q2. What are the benefits of using the conical aluminum nitride crucible?
The conical aluminum nitride crucible offers a high melting point, making it suitable for high-temperature applications. Additionally, it has excellent thermal shock resistance, high thermal conductivity, and good chemical resistance.
Q3. Is the conical aluminum nitride crucible reusable?
Yes, the conical aluminum nitride crucible is reusable.
Q4. What is the lead time for the conical aluminum nitride crucible?
The lead time is dependent on the size and quantity required. Please contact us for more infor.
How to clean conical aluminum nitride crucible:
1. When handling crucibles, protective gloves and glasses should be worn.
2. Use a soft cloth to wipe away any residue from the crucible.
3. Add warm water and mild detergent to the crucible.
4. Use a soft bristle brush to scrub the crucible and remove any stubborn residue.
5. Clean the crucible with water.
Quality testing standards:
1. Visual inspection of the crucible for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the crucible to check for accuracy.
3. Checking for any leaks or pinhole defects in the crucible.
4. Verification of the material and chemical composition of the crucible.
