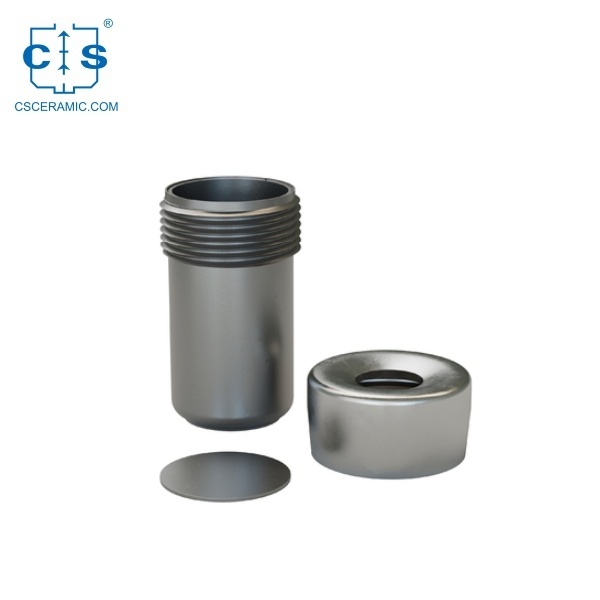

500 μL HP Ni Alloy crucible with pin equivalent to ME-650066

Manufacturer of thermal analysis crucible consumables for Mettler Toledo DSC & TGA equipment.

item no. :
CS-MM-020-13
Suitable for : Mettler Toledo
Material : Ni alloy
Part NO : ME-650066

contact now catalogue

description

Product Item: 500 μL HP Ni Alloy crucible with pin equivalent to ME-650066

Type	DISK
Suitable for	Mettler Toledo
Part NO.	ME-650066
Material	Ni alloy
Qty/PKG	10PCS/BOX
Matching disk	Burst Disk /Seal For Ni Alloy Crucibles Equivalent To ME-27216
Origin	CHINA
Shipping	Express via DHL/EMS/FEDEX/ARAMEX
Function Introduction	The crucible is made of a high temperature resistant NiCr TiAl alloy. Thanks to its thread, the crucible can be sealed using a special sealing tool. After the measurement, it can be cleaned and reused. The crucible can only be used with a furnace expander. Reusable HP Ni Alloy crucible After the measurement, the crucible can be opened, cleaned and reused with the same seal disk. The maximum pressure is 10 MPa. Chemically resistant crucible material The material consists of a temperature resistant alloy made of Ni, Cr, Ti and Al. The crucible can be sealed thanks to its thread. Furnace expander required When sealed, the 500 μL crucible has a height of about 16 mm and the furnace expander must be therefore used, Art. No 51140735.

Notice:
To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.

Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
