laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
TA 960072.901 Alumina crucibles sample pans for TA Instruments SDT Q600/SDT 2960. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
item no. :
CS-TA-025Suitable for : TA Instruments
Material : ceramic
Part NO : 960072.901
Item info :
| Type | Sample pan /crucible |
| Suitable for | TA SDT Q600/SDT 2960 |
| Part NO |
TA 960070.901 |
| Volume μL | 40 μL |
| Lid |
Without, (if need lids, Alumina Lids P/N 960239.901 is for use with Alumina Sample Cups P/N 960070.901) |
| Material |
Alumina Ceramic other material are available : |
| Temperature range | Room temperature to 1600℃ |
| QTY/PKG | 20PCS/BOX ; 100PCS/BOX (Both available) |
| Brand | CS CERAMIC |
| Original | MADE IN CHINA |
Usage:
TA alumina crucible(sample pans) is made of high-purity aluminum powder, with application of advanced sintering process, to produce small sized crucible that specified for thermal analysis, with four features below to fulfill various kinds of thermal analysis test.
Alumina sample cups feature:
1.High thermal conductivity: heat transfer between sample and crucible is very fast, so temperature difference between them is very small and temperature distribution is homogeneous.
2.Stable structure: high-purity powder and precise controlled sintering process, to make dense and homogeneous micro crystal phase, so to ensure stable structure and no physical or chemical reaction during the process of usage.
3.High temperature stability: with wide working temperature range, available up to 1600℃
4.High repeated utilization ratio: wash by water or 10% hydrochloric acid and dry the crucible after using, it can be used again and without disturbance to analysis test.
Alumina Sample Pans 960070.901/ 961060.901 for Thermal Analysis(click to review the video)

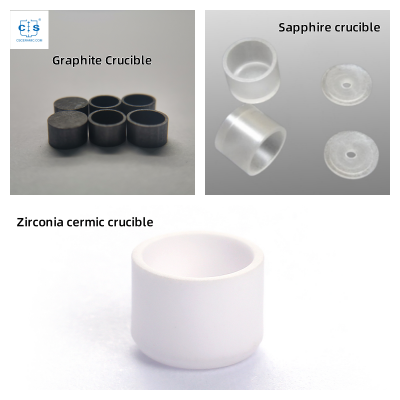

Other custom materials for ceramic crucibles are available:
Guide to TGA Pan Selection - TA sample pan, Platinum pan, Aluminum pan, Ceramic Alumina Pan
Size details:
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, and any special requirements. To speed up the quotation, please provide drawings.
90μl Premium alumina sample cups 960070.901/ 961060.901 for TA Instruments SDT Q600/SDT 2960 (Sample pans)
TA 960070.901/ 961060.901 Alumina crucibles sample pans for TA Instruments SDT Q600/SDT 2960. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
Alumina ceramic Crucible TA 820055.001 for TA TGA HP150
TA 820055.001 for TGA HP150Alumina crucibles sample cups for TA Instruments. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
Quartz Sample Holder (flat bottom) equivilent to TA 810027.001 for use with the TGA-HP and VTI-SA
TA 810027.001 for TA TGA-HP and VTI-SA . Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
Alumina lid TA 960239.901 for 40ul/90μl ceramic crucible TA Instruments (Ceramic Lids )
TA 960239.901 Alumina lids for TA SDT Q600 90ul sample cups crucibles. Manufacturer for TA Instruments crucibles and sample pans. Thermal Analyzer Sample Pan for dsc machine.
90μl Premium Alumina Cups/Lids 960070.901/960239.901 for TA Instruments SDT Q600/SDT 2960 Thermal Analyzers
TA 960070.901/960239.901 90μl Alumina crucibles sample cups for TA Instruments SDT Q600/SDT 2960. Thermal analysis Sample pans for Thermal Analyzers. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
40μl Alumina Sample Cups/Lids 960072.901/960239.901 for TA Instruments SDT Q600/SDT 2960(Sample pans)
TA 960072.901/960239.901 40μl Alumina crucibles sample cups for TA Instruments SDT Q600/SDT 2960. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
100μl Alumina Ceramic Sample Pans TA 957329.903 for TA Instruments TA Discovery TGA (55/550/5500) and Q5000 IR ,TGA-HP VTI-SA Sorption Analyzers
100μl Alumina Ceramic Sample Pans P/N 957329.903 For TA Instruments Q5000 are designed to provide reliable and accurate sample analysis. The pans are designed to fit perfectly into the TA Instruments
100μl Ceramic Sample Pans P/N 952018.907 for TA Instruments TA Q500/Q50/TGA2950/2050/TGA-HP50/VTI-SA Sorption Analyzers(Alumina Crucible)
TA 100μl 952018.907 Alumina crucibles Ceramic Sample Pans for TA Instruments TA Q500/Q50 TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
