3D Porous SiC Foam Filter 1500°C Resistance Filters Slag & Impurities in Molten Steel/Iron

Categories
Hot Products

SiC Ceramic Foam Filter
3D Porous SiC Foam Filter 1500°C Resistance Filters Slag & Impurities in Molten Steel/Iron 3D Porous SiC Foam Filter 1500°C Resistance Filters Slag & Impurities in Molten Steel/Iron

3D Porous SiC Foam Filter 1500°C Resistance Filters Slag & Impurities in Molten Steel/Iron

The SiC foam filter, with a 3D porous structure, offers high temp resistance up to 1500°C, and good adsorption, filtering slag & impurities in molten steel/iron for uniform casting structure and smoother surfaces.

  • item no. :

    CS-SIC-PM001

  • Material : SiC

contact now catalogue
  • description

Properties of SiC Foam Filter


  1. Exceptional Thermal Durability:
    • The SiC ceramic foam filter boasts remarkable high-temperature resistance and thermal shock resistance, capable of enduring extreme casting conditions without degradation. It maintains its integrity and ensures no contamination to the molten steel, making it an ideal choice for demanding applications.
  2. Impressive Impurity Resistance & Longevity:
    • Designed to minimize the adherence of impurities, the SiC foam filter exhibits excellent reverse cleaning recovery, significantly extending its service life. This durability reduces maintenance costs and downtime, contributing to a more efficient production process.
  3. Optimal Filtration Efficiency:
    • Featuring a concentrated aperture distribution, the SiC ceramic foam filter offers high filtration accuracy while maintaining a large flux. Its pores are less prone to clogging, ensuring smooth flow and enhancing production efficiency. This precision filtration helps to effectively remove slag and impurities from molten steel or iron.


Applications of SiC Foam Filter


  • The SiC foam filter is widely utilized in the casting of various metals, including carbon steel, stainless steel, cobalt-based and nickel-based alloy steels, gray cast iron, ductile cast iron, and more. Its ability to filter out contaminants enhances the quality and processing performance of castings, making it indispensable in the production of high-quality metal components.



Size Chart of SiC Foam Filter

Please provide drawing and parameter requirements for customization.

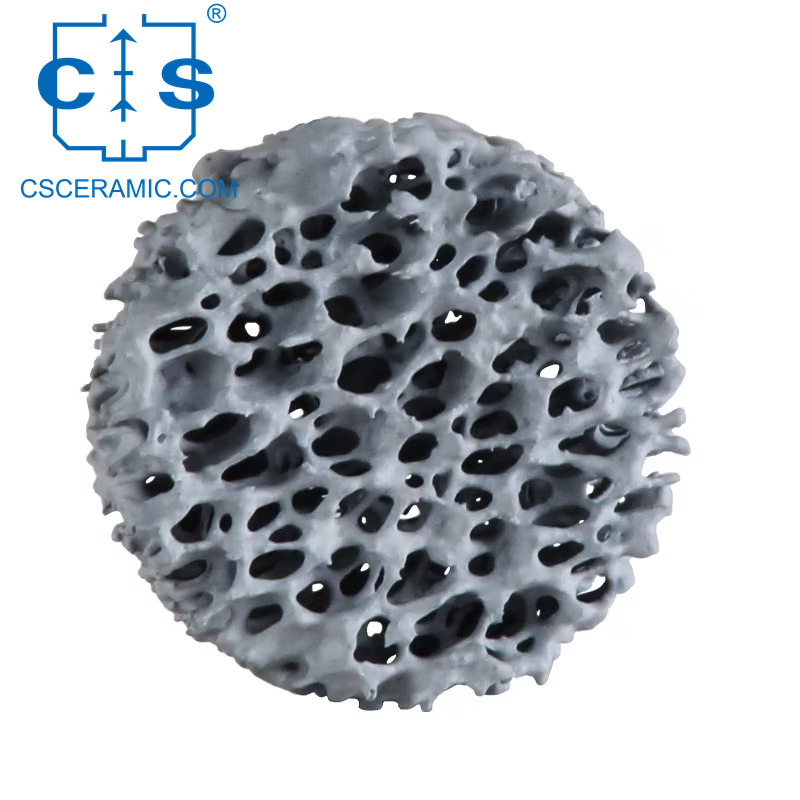

Silicon Carbide Foam Filter Round
Item NO. Size
(mm) 		PPI Aperture Ratio
(%)
CS-SIC-PM001 40*12 8/10/15/20/25/30 80~90
CS-SIC-PM002 50*15 8/10/15/20/25/30 80~90
CS-SIC-PM003 60*15 8/10/15/20/25/30 80~90
CS-SIC-PM004 70*15 8/10/15/20/25/30 80~90
CS-SIC-PM005 80*20 8/10/15/20/25/30 80~90
CS-SIC-PM006 100*22 8/10/15/20/25/30 80~90
CS-SIC-PM007 200*25 8/10/15/20/25/30 80~90
CS-SIC-PM008 300*25 8/10/15/20/25/30 80~90
CS-SIC-PM009 360*30 8/10/15/20/25/30 80~90

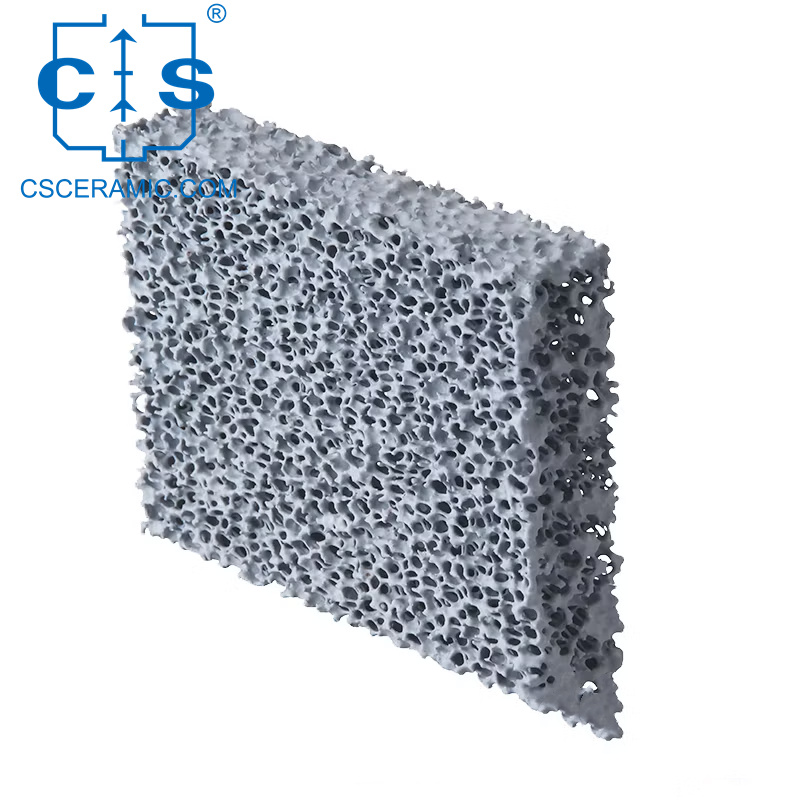

Silicon Carbide Foam Filter Rectangular
Item NO. Size
(mm) 		PPI Aperture Ratio
(%)
CS-SIC-PM010 35*35*11 8/10/15/20/25/30 80~90
CS-SIC-PM011 40*40*11 8/10/15/20/25/30 80~90
CS-SIC-PM012 50*50*15 8/10/15/20/25/30 80~90
CS-SIC-PM013 50*12*20 8/10/15/20/25/30 80~90
CS-SIC-PM014 50*50*22 8/10/15/20/25/30 80~90
CS-SIC-PM015 75*50*22 8/10/15/20/25/30 80~90
CS-SIC-PM016 75*75*22 8/10/15/20/25/30 80~90
CS-SIC-PM017 80*80*20 8/10/15/20/25/30 80~90
CS-SIC-PM018 90*15*20 8/10/15/20/25/30 80~90
CS-SIC-PM019 100*100*20 8/10/15/20/25/30 80~90
CS-SIC-PM020 150*150*20 8/10/15/20/25/30 80~90
CS-SIC-PM021 200*150*25 8/10/15/20/25/30 80~90
CS-SIC-PM022 280*280*30 8/10/15/20/25/30 80~90
CS-SIC-PM023 350*350*35 8/10/15/20/25/30 80~90
CS-SIC-PM024 360*360*40 8/10/15/20/25/30 80~90



Tags : SiC Ceramic Foam Filter Heat-Resistant Foam Filter Iron Casting Filter Heat Shock-Proof Filter Porous Ceramic Casting Filter
