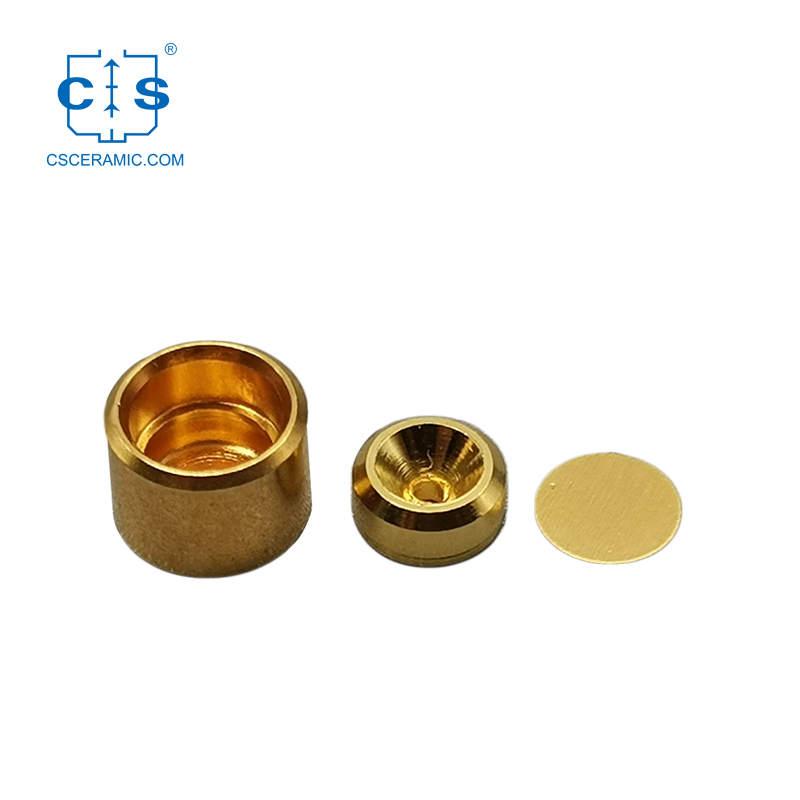

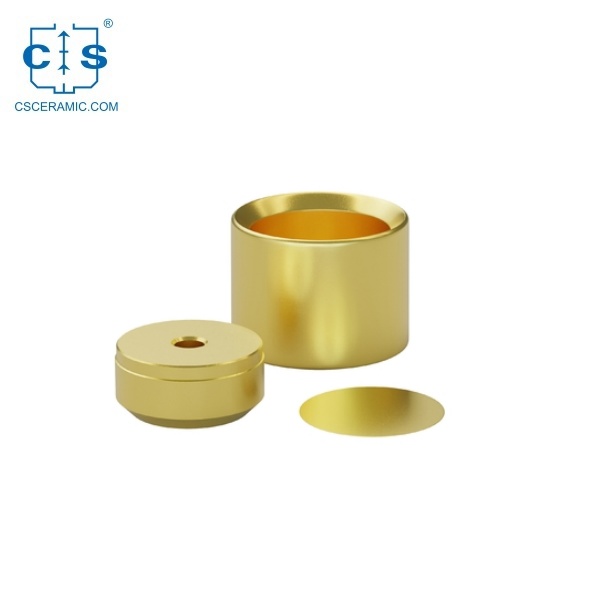

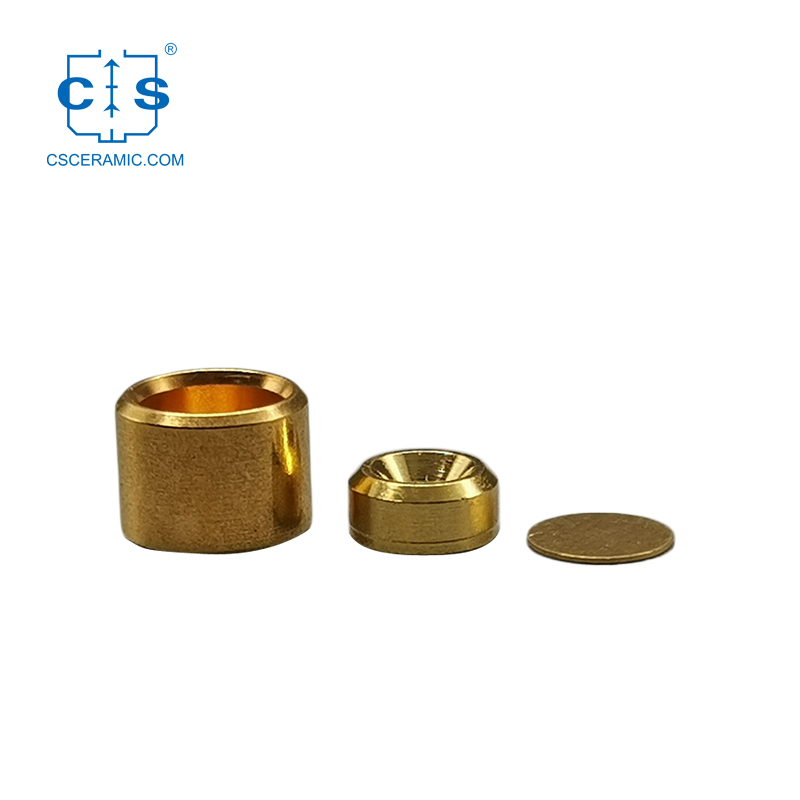

Mettler High pressure capsules stainless steel sample pans crucibles

25µl Disposable High pressure crucible small Stainless steel, gold plated equivalent to ME-30077139 for Mettler Toledo

25µl Disposable High pressure crucible small Stainless steel, gold plated equivalent to ME-30077139 for Mettler Toledo

25µl ME-30077139 crucibles with lids and seals. Manufacturer of Thermal analysis crucible consumables for Mettler Toledo DSC&TGA equipment.

item no. :
CS-MM-020-3
Suitable for : Mettler
Material : Stainless steel ,gold plated
Part NO : ME-30077139

contact now catalogue

description

Product Item: 25µl Disposable High pressure crucible small Stainless steel, gold plated equivalent to ME-30077139 for Mettler Toledo

Item info.

Type	Crucible with lids with disk
Suitable for	Mettler
Part NO	ME-30077139 \|if need Unplated Disposable high pressure crucible CS-MM-020-9 ,Click here
Capacity	25 ul
Pin	without
Lid	with
Seal	with
Material	stainless steel ,gold plated
QTY/PKG	3PCS/BOX 5PCS/BOX(Both available)
Matching Sealing Tool	High Pressure Crucible Sealing Tool ME-00026733 OEM DESIGN (CS-MM-021-5)
Matching Seals	Gold-plated Copper Seals for Mettler Toledo ME-00027216 Disposable High Pressure Crucible (CS-MM-43)
Function Introduction	Crucibles (without pin), lids and rupture disks. The gold-plated steel crucibles have proven highly effective in the field of safety investigations. They can only be used for one measurement each. The maximum pressure is 15 MPa. High-pressure crucibles up to 15 MPa The high-pressure 25 μL crucibles can withstand an internal pressure of 15 MPa. This makes them perfect for use with highly reactive materials. Gold-plated steel crucibles The steel crucibles (exact material: X2 CrNiMo18143) are plated with a 5 µm gold coating. This avoids undesired reactions between sample and crucible. Single-use crucible Sealing the lids makes these crucibles so tight that they cannot be reopened again. This means they cannot be reused.
Original	MADE IN CHINA
Shipping	Express via DHL/EMS/FEDEX/ARAMEX
Shipping time	3-15 days

Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.

Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.

Tags : Mettler stainless steel Sample Pan Mettlerhigh-pressure crucibles Mettler High pressure capsules Mettler Crucibles Mettler Accessories Mettler instrument consumables
