item no. :
CS-YHG-DH001Material : ZrO2
Unmatched Durability: The zirconia ring's superior hardness and wear resistance provide an extended service life, exceeding metal rings by over eight times. This significant reduction in replacement costs and downtime offers substantial cost savings for pad printer users.
Chemical Stability & High-Quality Printing: With exceptional resistance to oxidation, acid-alkali corrosion, and high temperatures, coupled with excellent self-lubrication properties, the zirconia ring ensures consistent, high-quality printing results. Its chemical stability ensures reliability and performance in various printing environments.
Integral Component for Pad Printers: The zirconia ceramic ring is a crucial part of pad printing machines, serving to securely seal the ink cup and prevent ink leakage. This ensures precise and clean printing results, enhancing the overall quality of the printed product.
Versatile Applications in Printing: The zirconia ring is widely used in the printing of patterns on various surfaces, including automobiles, electronics, and toys. Its durability and reliability make it an ideal choice for industries requiring high-quality, precise printing.
Please provide drawings and parametric specifications for customization.

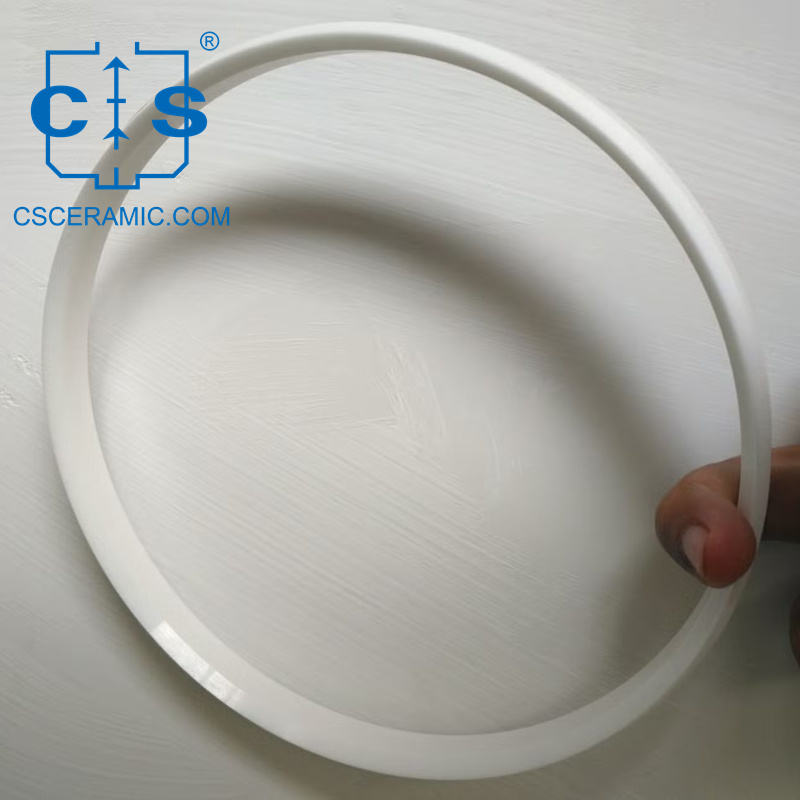

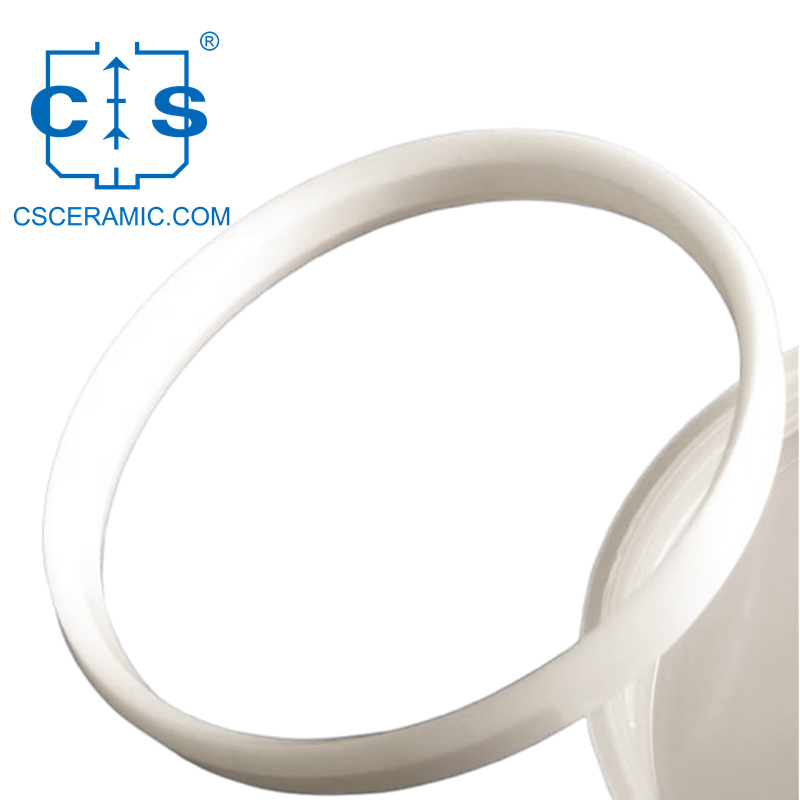

Zirconia Ceramic Ring Circular
Item no.
Outer Diameter
(mm)
Inner Diameter
(mm)
Height
(mm)
CS-YHG-DH001
30
26
6
CS-YHG-DH002
43
37
9
CS-YHG-DH003
46
12
6
CS-YHG-DH004
46
42
12
CS-YHG-DH005
47
42
5
CS-YHG-DH006
54
49.6
7.3
CS-YHG-DH007
59
53
10
CS-YHG-DH008
60
53
12
CS-YHG-DH009
64
56
12
CS-YHG-DH010
65
58
10
CS-YHG-DH011
65
55
12
CS-YHG-DH012
68
60
10
CS-YHG-DH013
70
60
5
CS-YHG-DH014
70
60
7
CS-YHG-DH015
70
60
12
CS-YHG-DH016
70
62
8
CS-YHG-DH017
75
65
12
CS-YHG-DH018
80
70
12
CS-YHG-DH019
85
75
12
CS-YHG-DH020
89
82
12
CS-YHG-DH021
89
82
12.1
CS-YHG-DH022
90
80
10
CS-YHG-DH023
90
81
12
CS-YHG-DH024
90
82
12
CS-YHG-DH025
90
82
13
CS-YHG-DH026
90
82
15
CS-YHG-DH027
94
86
12
CS-YHG-DH028
95
90
5
CS-YHG-DH029
95.31
88.96
19.18
CS-YHG-DH030
101
90
10
CS-YHG-DH031
100
90
12
CS-YHG-DH032
100
90
12.3
CS-YHG-DH033
101
91
11.5
CS-YHG-DH034
101
90
12
CS-YHG-DH035
120
110
12
CS-YHG-DH036
125
116
14
CS-YHG-DH037
128
120
8
CS-YHG-DH038
136
126
14
CS-YHG-DH039
140
131
14
CS-YHG-DH040
140
135
6
CS-YHG-DH041
147
142
6
CS-YHG-DH042
165
155
12
CS-YHG-DH043
165
6
1
CS-YHG-DH044
180
170
14
CS-YHG-DH045
190
180
14
CS-YHG-DH046
240
230
12
CS-YHG-DH047
247
237
12
CS-YHG-DH048
332
320
15
CS-YHG-DH049
357
345
15
Zirconia Ceramic Ring Oval
Item no.
Outer Diameter
(mm)
Inner Diameter
(mm)
Height
(mm)
CS-YHG-DH050
227
85
16
CS-YHG-DH051
228
83
16
Premium Zirconia Sleeve Corrosion Resistant for Chemical & Industrial Use
Designed for a wide range of industrial applications, zirconia ceramic sleeves are ideal for use in chemical engineering, metallurgy, pharmaceutical production, and power generation.
High Precision Zirconia Ceramic Mold Positioning Block
The Premium Zirconia Ceramic Locating Block is primarily utilized in mold positioning, enabling the swift and accurate establishment of positional relationships between workpieces, thereby ensuring precise and efficient mold processing.
High Strength Zirconia Ceramic Grinding Mortar & Pestle
Zirconia Mortars & Pestles are renowned for their exceptional strength, outstanding resistance to high temperatures, and unparalleled wear resistance. Thanks to these qualities, zirconia mortars and pestles are perfect for grinding solid substances into fine powders or crushing them into smaller particles.
High-Temp Y&Ca-Stabilized Zirconia Ceramic Refractory Plates
zirconia ceramic refractory plates come in two distinct series: yttrium-stabilized and calcium-stabilized, tailored to meet the specific needs of your application. Both series exhibit exceptional high-temperature resistance, withstanding temperatures up to 1600°C, and offering unmatched thermal shock resistance.
High-Temp Zirconia Ceramic Rollers for Flattening & Crushing
zirconia ceramic rollers are also suitable for roll crushers in the fragmentation of ore. Their robust construction and superior performance make them a trusted choice for industries that demand precision, durability, and reliability.
High-Temp Zirconia Ceramic Piston for Piston Pumps & Industrial Use
Primarily used in piston pumps, Zirconia ceramic pistons regulate the pressure and flow rate of fluids through efficient reciprocating motion.
ZrO2 Ceramic Shaft For Motors & Pumps
Featuring high hardness, wear resistance, mechanical strength, heat tolerance, corrosion resistance, and electrical insulation, ZrO2 ceramic shaft is ideal for motors, pumps, precision tools, medical devices, and chemical equipment.
ZrO2 Ceramic Fiber Ferrule - High Precision For Optical Connectors
ZrO2 ceramic fiber ferrule is a precision-crafted optical component made from hard, dimensionally accurate zirconia ceramic. It's primarily used in optical fiber connectors, attenuators, and stubs for precise positioning and connection in communication networks.
