Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :
CS-YHG-M1001Material : ZrO2
Please provide drawings and parametric specifications for customization.
Machining Tolerance:
Dimensional Accuracy: Up to 0.001mm
Surface Finish: Up to mirror-like finish
Concentricity: Up to 0.003mm
Parallelism: Up to 0.002mm
Inner Bore Tolerance: Minimum processable tolerance of 0.005mm
Straight Slots: Narrowest processable slot width of 0.1×100mm
Thickness: Minimum processable thickness of 0.02mm
Threads: Minimum processable internal thread of M2, external threads not limited
Cylindricity: Up to 0.004mm
Linear Tolerance: Up to 0.001mm
Minimum Bore Diameter: Minimum processable diameter of 0.07mm

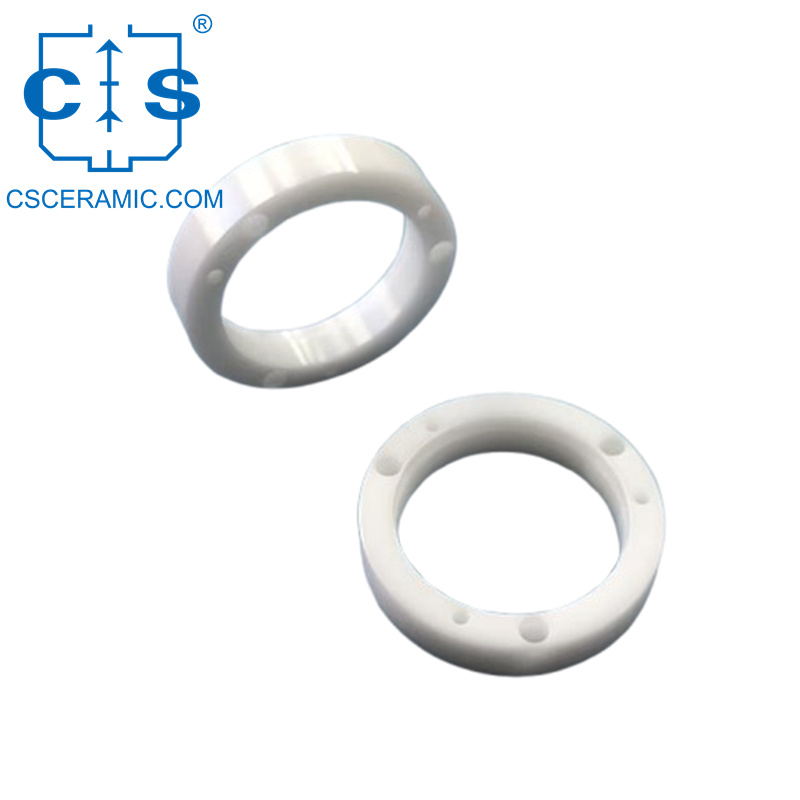

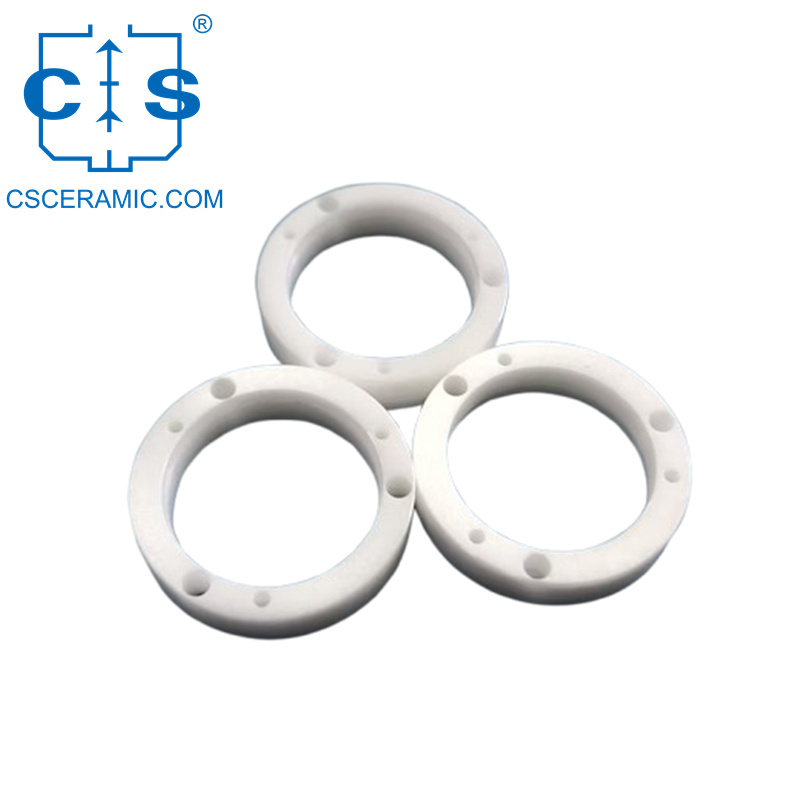

Zirconia Ceramic Sealing Ring
Item no.
Outer Dia.
(mm)
Inner Dia.
(mm)
Height
(mm)
CS-YHG-M1001
10.00
7.50
1.00
CS-YHG-M1002
24.00
10.50
5.10
CS-YHG-M1003
25.00
15.00
2.00
CS-YHG-M1004
31.00
17.00
3.00
CS-YHG-M1005
40.00
30.00
20.00
CS-YHG-M1006
41.12
29.92
5.60
CS-YHG-M1007
50.00
30.00
5.00
CS-YHG-M1008
50.00
46.00
5.00
CS-YHG-M1009
60.17
46.03
7.07
CS-YHG-M1010
62.00
50.00
5.50
CS-YHG-M1011
63.35
49.20
7.08
CS-YHG-M1012
69.70
55.86
6.92
CS-YHG-M1013
72.87
59.03
6.92
CS-YHG-M1014
76.05
62.21
6.92
CS-YHG-M1015
79.22
65.38
6.92
CS-YHG-M1016
82.40
68.63
6.89
CS-YHG-M1017
85.57
71.81
6.88
CS-YHG-M1018
89.00
65.00
5.30
CS-YHG-M1019
90.00
55.00
16.00
CS-YHG-M1020
100.00
80.00
15.00
CS-YHG-M1021
115.00
80.00
15.00
CS-YHG-M1022
1-150
0.5-140
1-50
Premium Zirconia Sleeve Corrosion Resistant for Chemical & Industrial Use
Designed for a wide range of industrial applications, zirconia ceramic sleeves are ideal for use in chemical engineering, metallurgy, pharmaceutical production, and power generation.
High Precision Zirconia Ceramic Mold Positioning Block
The Premium Zirconia Ceramic Locating Block is primarily utilized in mold positioning, enabling the swift and accurate establishment of positional relationships between workpieces, thereby ensuring precise and efficient mold processing.
High Strength Zirconia Ceramic Grinding Mortar & Pestle
Zirconia Mortars & Pestles are renowned for their exceptional strength, outstanding resistance to high temperatures, and unparalleled wear resistance. Thanks to these qualities, zirconia mortars and pestles are perfect for grinding solid substances into fine powders or crushing them into smaller particles.
High-Temp Y&Ca-Stabilized Zirconia Ceramic Refractory Plates
zirconia ceramic refractory plates come in two distinct series: yttrium-stabilized and calcium-stabilized, tailored to meet the specific needs of your application. Both series exhibit exceptional high-temperature resistance, withstanding temperatures up to 1600°C, and offering unmatched thermal shock resistance.
High-Temp Zirconia Ceramic Rollers for Flattening & Crushing
zirconia ceramic rollers are also suitable for roll crushers in the fragmentation of ore. Their robust construction and superior performance make them a trusted choice for industries that demand precision, durability, and reliability.
High-Temp Zirconia Ceramic Piston for Piston Pumps & Industrial Use
Primarily used in piston pumps, Zirconia ceramic pistons regulate the pressure and flow rate of fluids through efficient reciprocating motion.
ZrO2 Ceramic Shaft For Motors & Pumps
Featuring high hardness, wear resistance, mechanical strength, heat tolerance, corrosion resistance, and electrical insulation, ZrO2 ceramic shaft is ideal for motors, pumps, precision tools, medical devices, and chemical equipment.
ZrO2 Ceramic Fiber Ferrule - High Precision For Optical Connectors
ZrO2 ceramic fiber ferrule is a precision-crafted optical component made from hard, dimensionally accurate zirconia ceramic. It's primarily used in optical fiber connectors, attenuators, and stubs for precise positioning and connection in communication networks.
