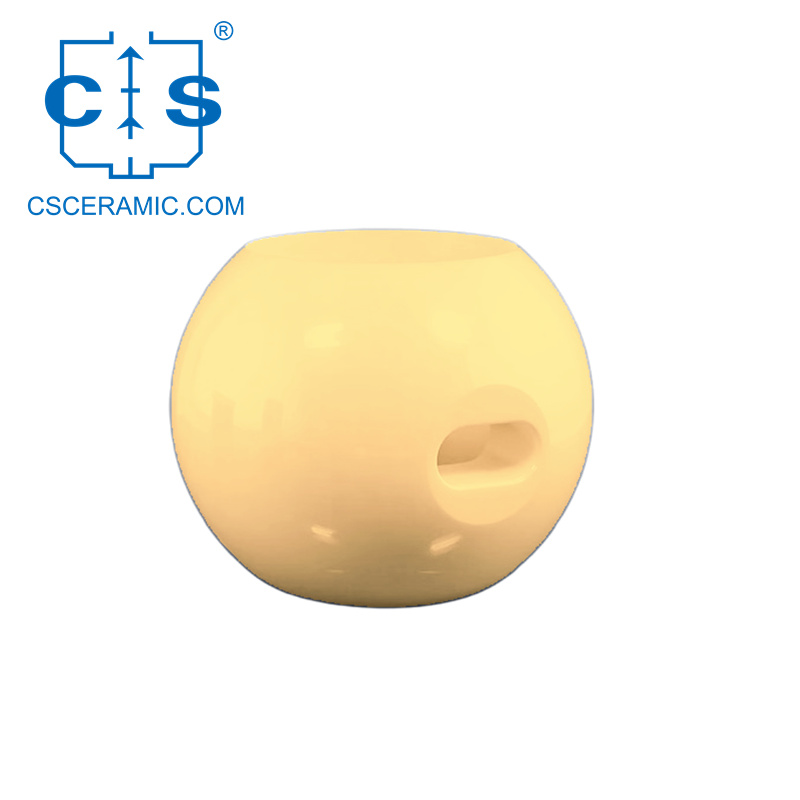

MSZ Ceramic Ball Valve Magnesia Stabilized Zirconia for Industrial Flow Control

MSZ ball valve, with high strength, corrosion resistance, and thermal shock tolerance, is widely used in industries like petrochemical, food processing, and water supply for flow regulation and pipeline control.

item no. :
CS-MGO-QF1001
Material : MSZ

contact now catalogue

description

Properties of Magnesia Stablized Zirconia Ceramic Ball Valve

Durable & Resilient: Magnesia Stabilized Zirconia Ceramic Ball Valves offer high mechanical strength, good impact resistance, and wear resistance, ensuring a long service life and reducing maintenance costs.
Smooth Operation: These valves feature a clean surface and self-lubricating properties, providing lubrication-free maintenance and low fluid resistance for efficient and smooth operation.
High-Temp & Corrosion-Resistant: Magnesia Stabilized Zirconia Ceramic Ball Valves are resistant to high temperatures up to 1000℃ and various acidic and alkaline substances. With super thermal shock resistance and chemical stability, they can withstand rapid temperature changes without risk of corrosion failure.
Biocompatible & Safe: These valves are biocompatible, non-toxic, and harmless to the human body, ensuring that they do not pollute the fluid medium and are safe for use in industries like bio-pharmaceutical and food processing.

Applications of MSZ Ceramic Ball Valve

Magnesia Stabilized Zirconia Ceramic Ball Valves are widely used in industries such as mechanical equipment, petrochemical, bio-pharmaceutical, food processing, power stations, and water supply systems. They can regulate flow rates and serve as control switches to open or close pipeline systems, making them a versatile and reliable choice for various applications.

Size Chart of MSZ Ceramic Ball Valve

Please provide drawing and parameter requirements for customization.

Magnesia Stablized Zirconia Ceramic O Type Ball Valve
Item NO.	DN	PH (Mpa)	D (mm)	D1 (mm)	D2 (mm)	C (mm)	H (mm)	n-d
CS-MGO-QF1001	32	1.6	165	135	75	18	235	4-∅18

Magnesia Stablized Zirconia Ceramic V Type Ball Valve
Item NO.	DN	NPS	H (mm)	L (mm)	D (mm)	D1 (mm)	D2 (mm)	n-d	b (mm)	f (mm)
CS-MGO-QF2001	32	1-1/4"	220	140	115	88.9	63.5	4-M12	16.3	2

Tags : Magnesia Stabilized Zirconia Valve High-Temp Ceramic Ball Valve Industrial Flow Control Valve Zirconia Ceramic Pipeline Valve MSZ Ceramic Ball Valve
