item no. :
CS-YHG-ZG001Material : ZrO2
Corrosion and High-Temp Resistance:
Constructed from zirconia ceramic, our gauge is highly resistant to corrosion and can withstand extreme temperatures. It can be used in direct contact with acids and alkalis, making it ideal for a variety of harsh working environments.
Rust-Free and Easy Maintenance:
Unlike metal gauges, our zirconia ceramic gauge won't rust, eliminating the need for anti-corrosion treatment. This makes maintenance and storage a breeze, saving you time and effort.
Stable Performance and Long Calibration Cycle:
Our gauge is designed to remain stable and accurate, with no aging, magnetization, or conduction issues. This results in a longer calibration cycle, reducing the frequency of recalibration and ensuring consistent precision.
Beyond its primary use as a measurement tool, the Zirconia Ceramic Gauge can also serve as a reference for calibration of other high-precision measuring instruments. This versatility ensures that it's a valuable addition to any toolkit, offering multiple functions in one compact and durable device.
Machining Capability:
1. Roughness ≤ Ra0.2.
2. Dimensional accuracy: Metric K class or imperial 0 class accuracy requirements can be met.
3. Size range: gauge bloack 0.5~150mm, gauge rod 0.3mm~30mm, gauge ring 3mm~40mm.
Zirconia Ceramic Gauge Pin
Item NO.
Size (mm)
Accuracy (H)
Measurement Range
CS-YHG-ZG001
0.300-0.499
0.0005-0.001
1-30mm
CS-YHG-ZG002
0.400-0.699
0.0005-0.001
1-30mm
CS-YHG-ZG003
0.700-0.999
0.0005-0.001
1-30mm
CS-YHG-ZG004
1.000-2.999
0.0005-0.001
1-30mm
CS-YHG-ZG005
3.000-3.999
0.0005-0.001
1-30mm
CS-YHG-ZG006
4.000-4.999
0.0005-0.001
1-30mm
CS-YHG-ZG007
5.000-5.999
0.0005-0.001
1-30mm
CS-YHG-ZG008
6.000-6.999
0.0005-0.001
1-30mm
CS-YHG-ZG009
7.000-7.999
0.0005-0.001
1-30mm
CS-YHG-ZG010
8.000-8.999
0.0005-0.001
1-30mm
CS-YHG-ZG011
9.000-9.999
0.0005-0.001
1-30mm
CS-YHG-ZG012
10.000-10.999
0.0005-0.001
1-30mm
CS-YHG-ZG013
11.000-11.999
0.0005-0.001
1-30mm
CS-YHG-ZG014
12.000-12.999
0.0005-0.001
1-30mm
CS-YHG-ZG015
13.000-13.999
0.0005-0.001
1-30mm
CS-YHG-ZG016
14.000-14.999
0.0005-0.001
1-30mm
CS-YHG-ZG017
15.000-15.999
0.0005-0.001
1-30mm
CS-YHG-ZG018
16.000-16.999
0.0005-0.001
1-30mm
CS-YHG-ZG019
17.000-17.999
0.0005-0.001
1-30mm
CS-YHG-ZG020
18.000-18.999
0.0005-0.001
1-30mm
CS-YHG-ZG021
20.000-20.999
0.0005-0.001
1-30mm
CS-YHG-ZG022
21.000-21.999
0.0005-0.001
1-30mm
CS-YHG-ZG023
22.000-21.999
0.0005-0.001
1-30mm
CS-YHG-ZG024
22.000-22.999
0.0005-0.001
1-30mm
CS-YHG-ZG025
23.000-23.999
0.0005-0.001
1-30mm
CS-YHG-ZG026
24.000-24.999
0.0005-0.001
1-30mm
CS-YHG-ZG027
25.000-25.999
0.0005-0.001
1-30mm
CS-YHG-ZG028
26.000-26.999
0.0005-0.001
1-30mm
CS-YHG-ZG029
27.000-27.999
0.0005-0.001
1-30mm
CS-YHG-ZG030
28.000-28.999
0.0005-0.001
1-30mm
CS-YHG-ZG031
29.000-30.000
0.0005-0.001
1-30mm

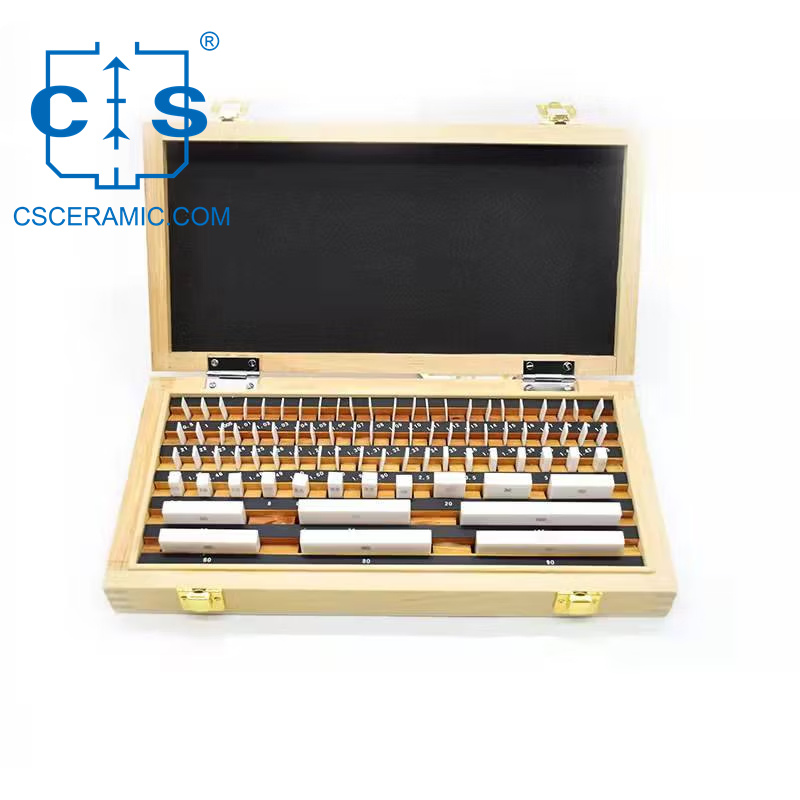

Zirconia Ceramic Gauge Block
Item NO.
Block Set
Size (mm)
Grade
CS-YHG-KG001
10 pieces, JIS
1/1.25/1.5/2/3/5/10/15/20/25
K
0
1
CS-YHG-KG002
32 blocks, ISO
1.005
1.01-1.09, 0.01 increments, 9 blocks in total
1.1-1.9, 0.1 increments, 9 blocks in total
1-9, 1 increments, 9 blocks in total
10-30, 10 increments, 3 blocks in total
50
K
0
1
CS-YHG-KG003
32 blocks, JIS
1.005
1.01-1.09, 0.01 increments, 9 blocks in total
1.1-1.9, 0.1 increments, 9 blocks in total
1-9, 1 increments, 9 blocks in total
10-30, 10 increments, 3 blocks in total
60
K
0
1
CS-YHG-KG004
38 blocks, GB/T 6093
1
1.005
1.01-1.09, 0.01 increments, 9 blocks in total
1.1-1.9, 0.1 increments, 9 blocks in total
2-9, 1 increments, 8 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG005
46 blocks, ISO
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.09, 0.01 increments, 9 blocks in total
1.1-1.9, 0.1 increments, 9 blocks in total
1-9, 1 increments, 9 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG006
47 blocks, ISO
1.005
1.01-1.19, 0.01 increments, 19 blocks in total
1.2-1.9, 0.1 increments, 8 blocks in total
1-9, 1 increments, 9 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG007
47 blocks, JIS
1.005
1.01-1.09, 0.01 increments, 9 blocks in total
1.1-1.9, 0.1 increments, 9 blocks in total
1-24, 1 increments, 24 blocks in total
25-100, 25 increments, 4 blocks in total
K
0
1
CS-YHG-KG008
56 blocks, JIS
0.5
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.09, 0.01 increments, 9 blocks in total
1.1-1.9, 0.1 increments, 9 blocks in total
1-24, 1 increments, 24 blocks in total
25-100, 25 increments, 4 blocks in total
K
0
1
CS-YHG-KG009
76 blocks, JIS
1.005
1.01-1.49, 0.01 increments, 49 blocks in total
0.5-10, 0.5 increments, 20 blocks in total
20-50, 10 increments, 4 blocks in total
75
100
K
0
1
CS-YHG-KG010
83 blocks, GB/T 6093
0.5
1
1.005
1.01-1.49, 0.01 increments, 49 blocks in total
1.5-1.9, 0.1 increments, 5 blocks in total
2.0-9.5, 0.5 increments, 16 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG011
87 blocks, ISO
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.49, 0.01 increments, 49 blocks in total
0.5-9.5, 0.5 increments, 19 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG012
88 blocks, JIS
1.0005
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.49, 0.01 increments, 49 blocks in total
0.5-9.5, 0.5 increments, 19 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG013
91 blocks, GB/T 6093
0.5
1
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.49, 0.01 increments, 49 blocks in total
1.5-1.9, 0.1 increments, 5 blocks in total
2.0-9.5, 0.5 increments, 16 blocks in total
10-100, 10 increments, 10 blocks in total
K
0
1
CS-YHG-KG014
103 blocks, ISO
1.005
1.01-1.49, 0.01 increments, 49 blocks in total
0.5-24.5, 0.5 increments, 49 blocks in total
25-100, 25 increments, 4 blocks in total
K
0
1
CS-YHG-KG015
112 blocks, ISO
1.0005
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.49, 0.01 increments, 49 blocks in total
0.5-24.5, 0.5 increments, 49 blocks in total
25-100, 25 increments, 4 blocks in total
K
0
1
CS-YHG-KG016
121 blocks, ISO
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.49, 0.01 increments, 49 blocks in total
1.6--1.9, 0.1 increments, 4 blocks in total
0.5-24.5, 0.5 increments, 49 blocks in total
30-100, 10 increments, 8 blocks in total
25
75
K
0
1
CS-YHG-KG017
122 blocks, ISO
1.0005
1.001-1.009, 0.001 increments, 9 blocks in total
1.01-1.49, 0.01 increments, 49 blocks in total
1.6--1.9, 0.1 increments, 4 blocks in total
0.5-24.5, 0.5 increments, 49 blocks in total
30-100, 10 increments, 8 blocks in total
25
75
K
0
1

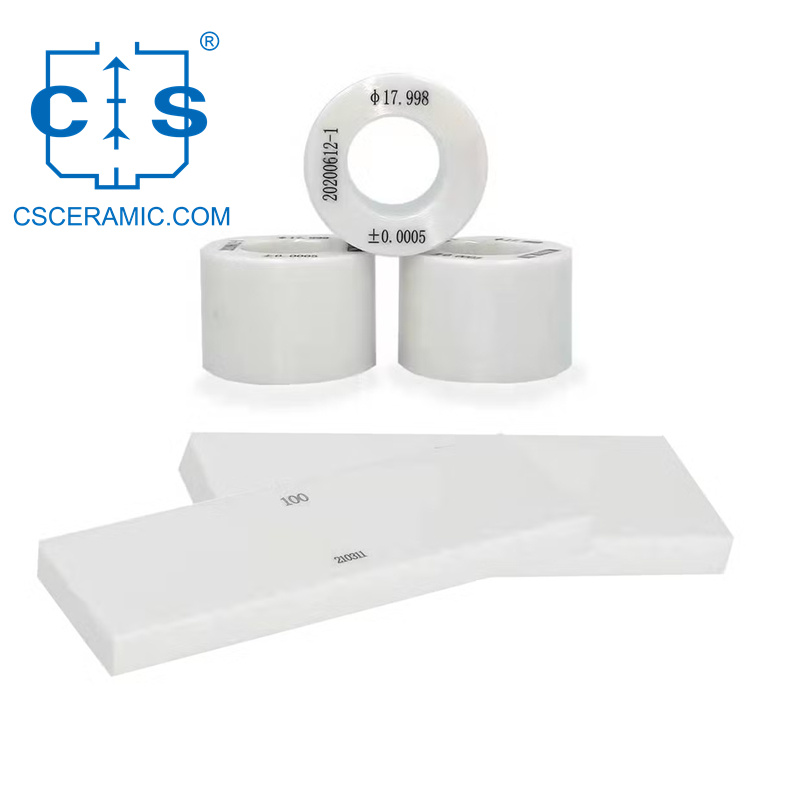

Zirconia Ceramic Gauge Ring
Item NO.
Outer Diameter (mm)
Thickness (mm)
Measurement Range
CS-YHG-HG001
32
8
3-10mm
CS-YHG-HG002
38
10
10-15mm
CS-YHG-HG003
45
14
20-25mm
CS-YHG-HG004
53
16
25-32mm
CS-YHG-HG005
71
18
32-40mm
