item no. :
CS-SY-G2001Material : SiO₂ Quartz Ceramic

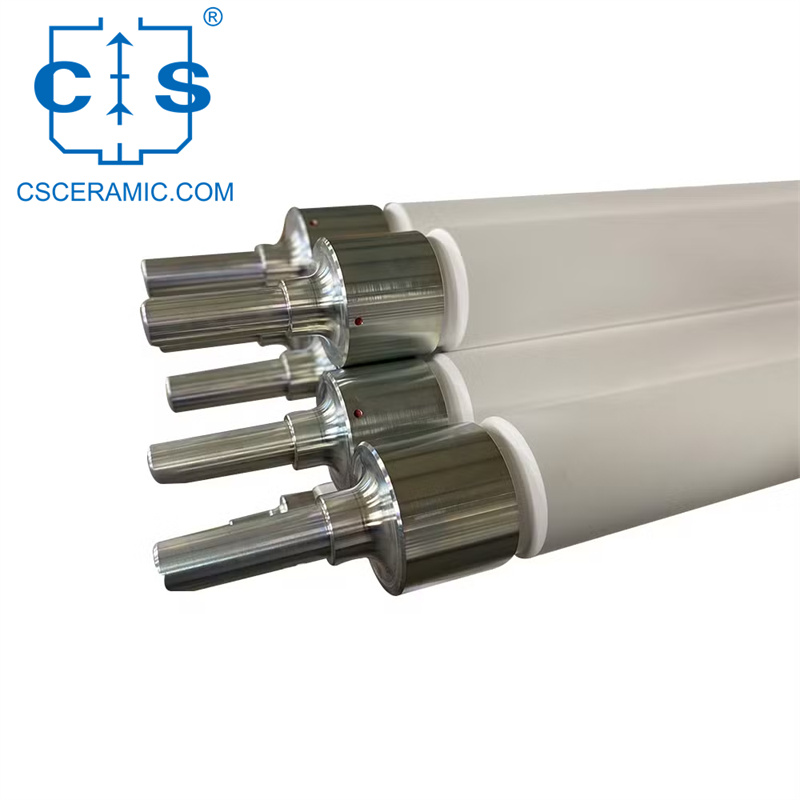

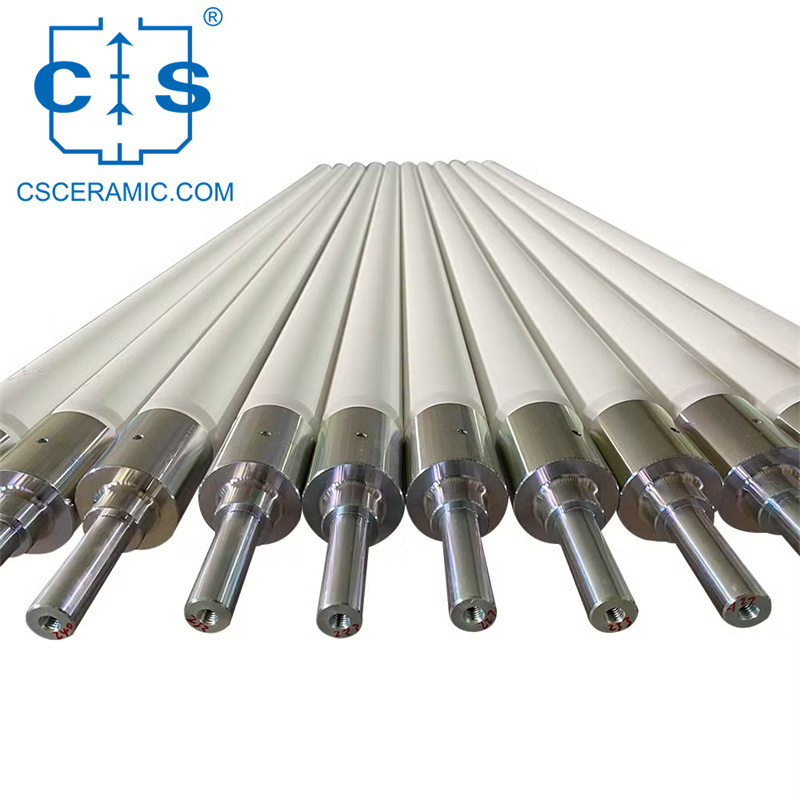

High-Temp & Thermal Shock Resistance: Quartz ceramic rollers are renowned for their high-temperature resistance, with a maximum working temperature of up to 1450℃. They also exhibit excellent thermal shock resistance and a small thermal expansion coefficient, ensuring their mechanical strength remains consistent even at elevated temperatures.
Corrosion Resistance: These rollers are highly resistant to corrosion, capable of withstanding the erosion of both acid and alkaline gases. This makes them ideal for use in harsh environments.
Quartz ceramic rollers are widely utilized in tempering furnaces, annealing furnaces, oxidation furnaces, and other heat treatment equipment. They are perfect for carrying and transporting materials such as glass, silicon, and steel plate during the heat treatment process, thanks to their durability and resistance to high temperatures and corrosion.
Please provide drawing and parameter requirements for customization.
| Quartz Ceramic Roller | |||
| Item no. |
Diameter (mm) |
Length (mm) |
Purity (%) |
| CS-SY-G2001 | 15 | 600 | 99.8 |
| CS-SY-G2002 | 20 | 800 | 99.8 |
| CS-SY-G2003 | 25 | 1000 | 99.8 |
| CS-SY-G2004 | 30 | 1200 | 99.8 |
| CS-SY-G2005 | 35 | 1250 | 99.8 |
| CS-SY-G2006 | 35 | 1230 | 99.8 |
| CS-SY-G2007 | 40 | 1415 | 99.8 |
| CS-SY-G2008 | 45 | 1800 | 99.8 |
| CS-SY-G2009 | 50 | 2000 | 99.8 |
| CS-SY-G2010 | 55 | 2280 | 99.8 |
| CS-SY-G2011 | 50 | 2166 | 99.8 |
| CS-SY-G2012 | 55 | 2471 | 99.8 |
| CS-SY-G2013 | 60 | 2515 | 99.8 |
| CS-SY-G2014 | 60 | 2571 | 99.8 |
| CS-SY-G2015 | 60 | 2400 | 99.8 |
| CS-SY-G2016 | 65 | 2600 | 99.8 |
| CS-SY-G2017 | 70 | 2788 | 99.8 |
| CS-SY-G2018 | 75 | 3000 | 99.8 |
| CS-SY-G2019 | 80 | 3200 | 99.8 |
| CS-SY-G2020 | 85 | 3360 | 99.8 |
| CS-SY-G2021 | 95 | 3615 | 99.8 |
| CS-SY-G2022 | 95 | 3805 | 99.8 |
| CS-SY-G2023 | 100 | 4000 | 99.8 |
| CS-SY-G2024 | 105 | 4200 | 99.8 |
| CS-SY-G2025 | 300 | 6000 | 99.8 |
