item no. :
CS-YHL-FD001Material : Alumina ceramic
3. The alumina plate exhibits excellent corrosion resistance, resisting chemical erosion and enduring prolonged use in harsh environments.

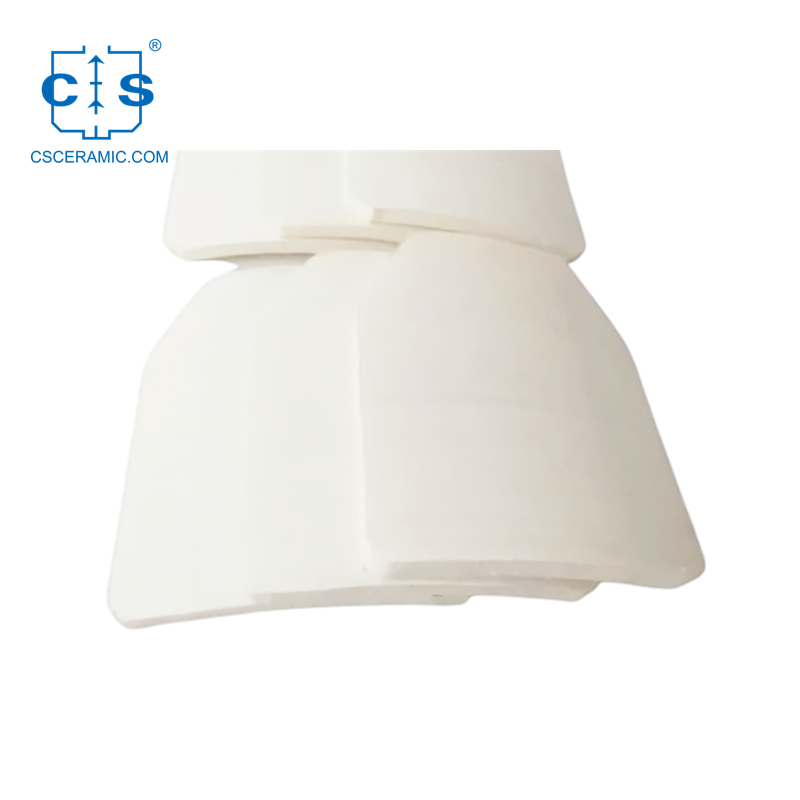

Applications of Alumina Bulletproof Plate
Bulletproof alumina plates are primarily used in the manufacturing of bulletproof vests and protective armor.
1. Military Applications
The alumina plates are utilized as lining for individual bulletproof vests and protective armor for military vehicles, aircraft, and ships.
2. Civilian Industrial Applications
The alumina plates are commonly employed as bulletproof materials for armored cash transport vehicles and bulletproof cars.
Size Chart for Alumina Plate
| Alumina Plate for Bulletproof | ||||
| Item NO. | Dimension (mm) | Opposite Sides (mm) | Thickness (mm) | Al2O3's Purity (%) |
| CS-YHL-FD001 | 20*20*3 | 20*20 | 3 | 99% |
| CS-YHL-FD002 | 20*20*10 | 20*20 | 10 | 99% |
| CS-YHL-FD003 | 20*20*20 | 20*20 | 20 | 99% |
| CS-YHL-FD004 | 30*30*3 | 30*30 | 3 | 99% |
| CS-YHL-FD005 | 30*30*4 | 30*30 | 4 | 99% |
| CS-YHL-FD006 | 30*30*5 | 30*30 | 5 | 99% |
| CS-YHL-FD007 | 30*30*6 | 30*30 | 6 | 99% |
| CS-YHL-FD008 | 30*30*7 | 30*30 | 7 | 99% |
| CS-YHL-FD009 | 30*30*8 | 30*30 | 8 | 99% |
| CS-YHL-FD010 | 30*30*10 | 30*30 | 10 | 99% |
| CS-YHL-FD011 | 30*30*20 | 30*30 | 20 | 99% |
| CS-YHL-FD012 | 40*40*10 | 40*40 | 10 | 99% |
| CS-YHL-FD013 | 47.6*47.6*3 | 47.6*47.6 | 3 | 99% |
| CS-YHL-FD014 | 50*50*3 | 50*50 | 3 | 99% |
| CS-YHL-FD015 | 50*50*10 | 50*50 | 10 | 99% |
| CS-YHL-FD016 | 50*50*20 | 50*50 | 20 | 99% |
| CS-YHL-FD017 | 50*50*22 | 50*50 | 22 | 99% |
| CS-YHL-FD018 | 50*50*23 | 50*50 | 23 | 99% |
| CS-YHL-FD019 | 50*50*25 | 50*50 | 25 | 99% |
| CS-YHL-FD020 | 50*50*26 | 50*50 | 26 | 99% |
| CS-YHL-FD021 | 50*50*30 | 50*50 | 30 | 99% |
| CS-YHL-FD022 | 100*100*10 | 100*100 | 10 | 99% |
| CS-YHL-FD023 | 100*100*20 | 100*100 | 20 | 99% |
| CS-YHL-FD024 | 100*100*25 | 100*100 | 25 | 99% |
| CS-YHL-FD025 | 100*100*30 | 100*100 | 30 | 99% |
| Alumina Plate for Bulletproof | |||||||
| Item NO. | Material | Size (mm) | Protective Area (m²) | Thickness (mm) | Weight (kg) | Bulletproof Rating | Remarks |
| CS-YHL-FD1001 | 10mmPE+10mmAl2O3 | 250X300mm | 0.072m² | 22mm | 2.9kg | NIJ IV/GA-6 |
7.62*63mm M2 Armor-Piercing Bullet (AP) 7.62*51mm M80 Full Metal Jacket Bullet (FMJ) 7.62*39mm AK47 Lead Core Bullet (LC) 5.56*45mm M193 Lead Core Bullet (LC) |
| CS-YHL-FD1002 | 8mmPE+8mmAl2O3 | 250X300mm | 0.072m² | 20mm | 2.3kg | NIJ III/GA-5 |
7.62*51mm M80 Full Metal Jacket Bullet (FMJ) 7.62*39mm AK47 Lead Core Bullet (LC) 5.56*45mm M193 Lead Core Bullet (LC) |
| CS-YHL-FD1003 | PE+Al2O3 | 250X300mm | 0.072m² | 22mm | 2.50kg | NIJ III/GA-5 | Customizable |
| CS-YHL-FD1004 | PE+Al2O3 | 250X300mm | 0.072m² | 25mm | 2.95kg | NIJ IV/GA-6 | Customizable |
| CS-YHL-FD1005 | PE+Al2O3 | 250X300mm | 0.072m² | 24mm | 2.75kg | NIJ III+ | Customizable |
| CS-YHL-FD1006 | PE+Al2O3 | 250X300mm | 0.072m² | 24mm | 2.75kg | NIJ III++ | Customizable |
| CS-YHL-FD1007 | PE+Al2O3 | 250X300mm | 0.072m² | 25mm | 3.35kg | NIJ IV+ | Customizable |
| CS-YHL-FD1008 | PE+Al2O3 | 250X300mm | 0.072m² | 26mm | 3.35kg | NIJ IV++ | Customizable |
Usage Instructions
1. The alumina plates should be stored in a dry, dust-free, and shaded area, and care should be taken to avoid mixing them with other materials.
2. During handling, avoid friction or severe impacts to prevent cracks and damage.
3. Prior to use, it is necessary to carefully inspect the plates to ensure the surface is smooth and free from cracks, peeling, or other defects.
Dedicated to delivering well-performed alumina bulletproof plates customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.
Please provide drawings and specific parameter requirements.
Aluminum Oxide Metalized Substrate Ceramic Substrate DBC DPC Processed
Alumina ceramic metalized substrates are ceramic copper-clad plates with electrical conductivity, thermal conductivity, and high insulation properties, formed by metalizing alumina ceramic substrates with copper.
Alumina Ceramic Substrate Sheet/Plate
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
High Temperature Alumina Ceramic Disc/Substrate/Plate
Alumina ceramic disc used in all electric products, electric heating products and wear resistant machinery parts.Small volume, light weight, high strength and space saving.
Customized 96% 99% 99.5% 99.7% Alumina Ceramic Substrate/Plate/Sheet
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry. Alumina Ceramic Substrate are small volume, light weight, high strength and space saving.
Furnace Lid（ Inner lid insulation )equivalent to PE N5202029 For PerkinElmer STA 8000
Laboratory furnace lid/cover is specifically designed for the PE STA 8000.The furnace cover is made of polycrystalline high-density alumina fibers and is resistant to high temperatures.
30/40μl Concavus Pan and Lid Netzsch NGB814672/NGB814673 for Netzsch STA 449 F1 & F3, DSC 204 F1 Phoenix®, DSC 200 F3 Maia®, DSC 3500 Sirius and DSC 214 Polyma
ø5 mm NGB814672/NGB81467 for Netzsch STA 449 F1 & F3 Accessories and Spare Parts DSC 204 F1 Phoenix®, DSC 200 F3 Maia®, DSC 3500 Sirius and DSC 214 Polyma Sirius TDA DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
High Insulation Aluminum Silicate Ceramic Fiber Custom Shapes
Crafted from premium alumina silicate fiber, vacuum-formed, custom-shaped components for industrial use, with excellent wear & spall resistance, resistant to most molten metals.
30μl Disposable high pressure crucible with lid/seal Stainless Steel for Setaram
30μl Setaram disposable high pressure crucible with lid/seal stainless steel. Manufacturer of Setaram crucible consumables and instruments.
