laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
ME-00024123 DSC Alumina crucibles sample pans for Mettler TGA/sample robot measurements. Manufacturer for Mettler Toledo crucibles,sample pans and dsc consumables.
Read More
20 ml Large Ceramic Crucible 529-047 / 621-331 for LECO, Alpha AR9047. Manufacturer of TGA ceramic crucible for LECO TGA 500/501/601/701, MAC 400 / 500. TGA alumina crucible/pans for TGA-Thermogravimetric Analyzer analysis TGA measurement.
Read More

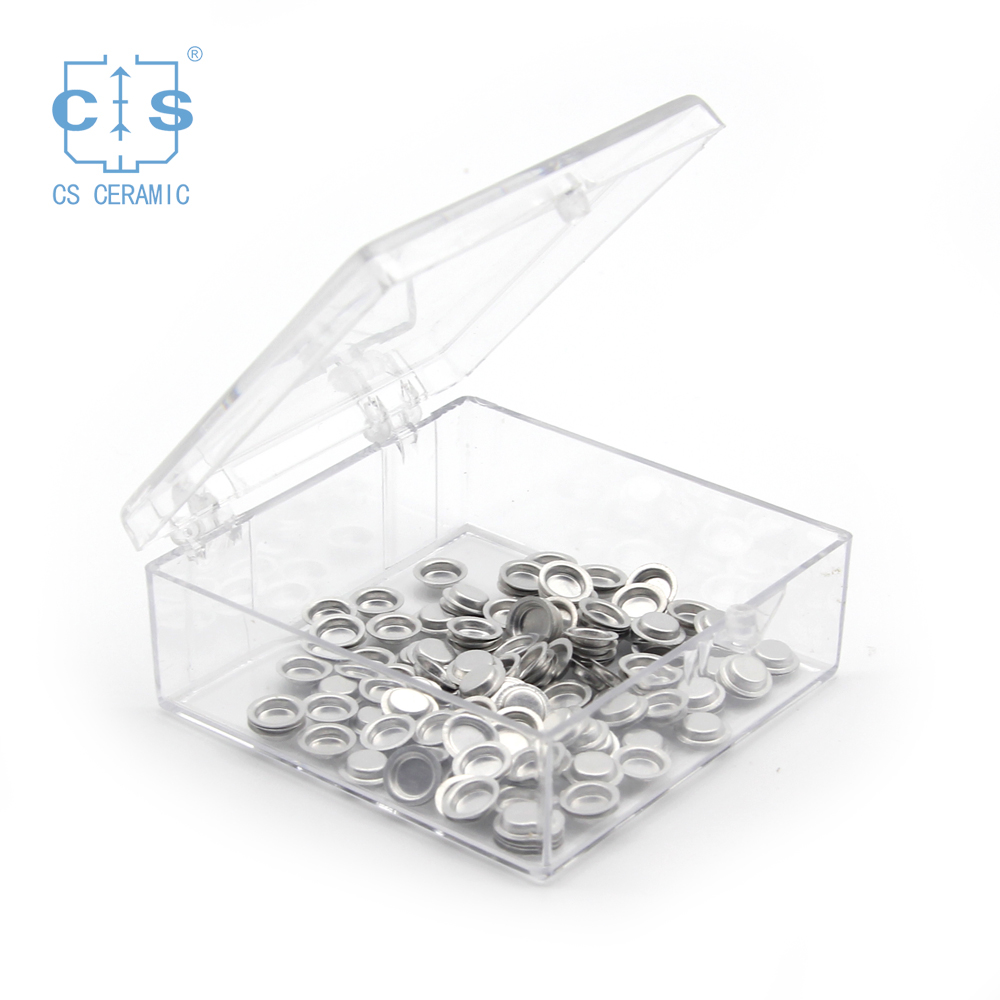

901683.901/901671.901 Solid sample test for T Zero Q20/Q2000/Q25/Q2500 Aluminum Sample Pans for TA Instruments T Zero Q20/Q2000/Q25/Q2500. TA Instruments good alternative sample cups.
item no. :
CS-TM-044Suitable for : TA Instruments T Zero Q20/Q2000/Q25/Q2500
Material : Aluminum
Part NO : 901683.901/901671.901
Item info :
| Type | Sample pan /Crucible |
| Suitable for | TA Instruments T Zero Q20/Q2000/Q25/Q2500 |
| Part NO | TA 901683.901/901671.901 |
| Material | Aluminum |
| Test Material | Soild sample test |
| Temperature Range: | -180°C to 600°C |
| QTY/PKG | 100PCS/BOX ;200PCS/BOX (Both available) |
| Brand | CS CERAMIC |
| Sealing Press Kit | TA 901600.901 |
Usage:

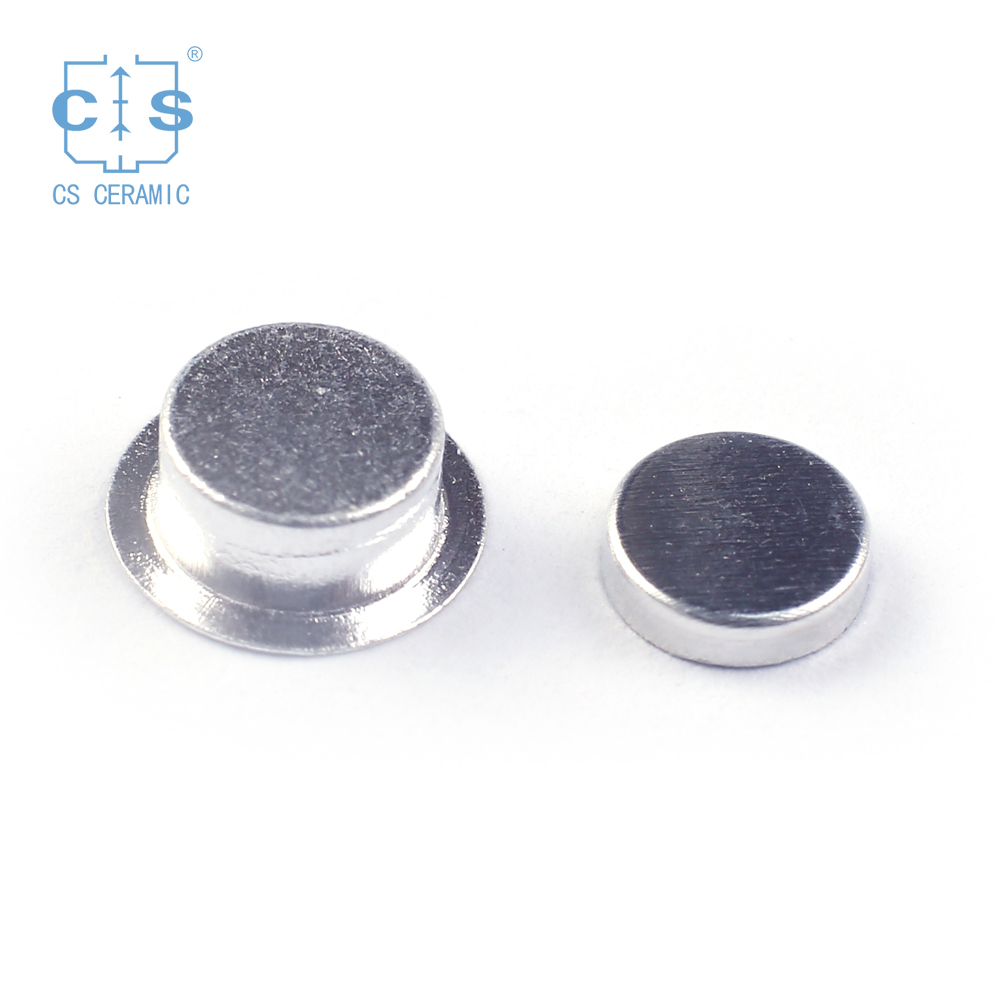

Aluminum pans designed for maximum performance in crimp or hermetic sealing of various sample sizes. The pans have extremely flat bottoms designed for maximum contact with the Tzero cell sensors. They can be used in the crimp seal mode with the Tzero Lids (P/N: 901671.901), where the internal volume is 20 µL, or in the hermetic seal mode with the Tzero Hermetic Lids (P/N: 901684.901),where the internal volume is 40 µL. This sample encapsulation process requires the Tzero Sample Press Kit (P/N: 901600.901).
Aluminum sample pan and cover: applicable for non-volatile solid sample, like polymer and medicine. It’s widely used for melting, crystallization and vitrifaction test of polymer and thermoplasticity material; Sample vessel is bayonet type, not sealed.
Notice :
To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.
Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.
Tzero Aluminum Lids 901671.901 For TA Instrument (click to review the video)
Tzero Pans 901683.901 For TA Instrument (click to review the video)
Recommended matching sealing press TA Instruments 901600.901(click to review the video)
Guide to TGA Pan Selection - TA sample pan, Platinum pan, Aluminum pan, Ceramic Alumina Pan
Size details:
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, and any special requirements. To speed up the quotation, please provide drawings.
90μl Premium alumina sample cups 960070.901/ 961060.901 for TA Instruments SDT Q600/SDT 2960 (Sample pans)
TA 960070.901/ 961060.901 Alumina crucibles sample pans for TA Instruments SDT Q600/SDT 2960. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
Alumina Crucible TA 820055.001 for TGA HP150
TA 820055.001 for TGA HP150Alumina crucibles sample cups for TA Instruments. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
90ul Alumina lid TA 960239.901 for TA Instruments (Ceramic Lids )
TA 960239.901 Alumina lids for TA SDT Q600 90ul sample cups crucibles. Manufacturer for TA Instruments crucibles and sample pans. Thermal Analyzer Sample Pan for dsc machine.
90μl Premium Alumina Cups/Lids 960070.901/960239.901 for TA Instruments SDT Q600/SDT 2960 Thermal Analyzers
TA 960070.901/960239.901 90μl Alumina crucibles sample cups for TA Instruments SDT Q600/SDT 2960. Thermal analysis Sample pans for Thermal Analyzers. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
40μl Alumina Sample Cups/Lids 960072.901/960239.901 for TA Instruments SDT Q600/SDT 2960(Sample pans)
TA 960072.901/960239.901 40μl Alumina crucibles sample cups for TA Instruments SDT Q600/SDT 2960. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
100μl Alumina Ceramic Sample Pans P/N 957329.903 for TA Instruments Q5000 (Alumina Crucible)
The 100μl Alumina Ceramic Sample Pans P/N 957329.903 For TA Instruments Q5000 are designed to provide reliable and accurate sample analysis. The pans are designed to fit perfectly into the TA Instruments
100μl Alumina Ceramic Sample Pans P/N 952018.907 for TA Instruments TA Q500/Q50 TGA 2950/2050 (Alumina Crucible)
TA 100μl 952018.907 Alumina crucibles Ceramic Sample Pans for TA Instruments TA Q500/Q50 TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
100μl Ceramic Sample Pans (Special H:18.6MM)) for TA Instruments (Alumina Crucible)
TA 100μl 952018.907 Alumina crucibles(OEM handle) Ceramic Sample Pans for TA Instruments TA Q500/Q50 TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
