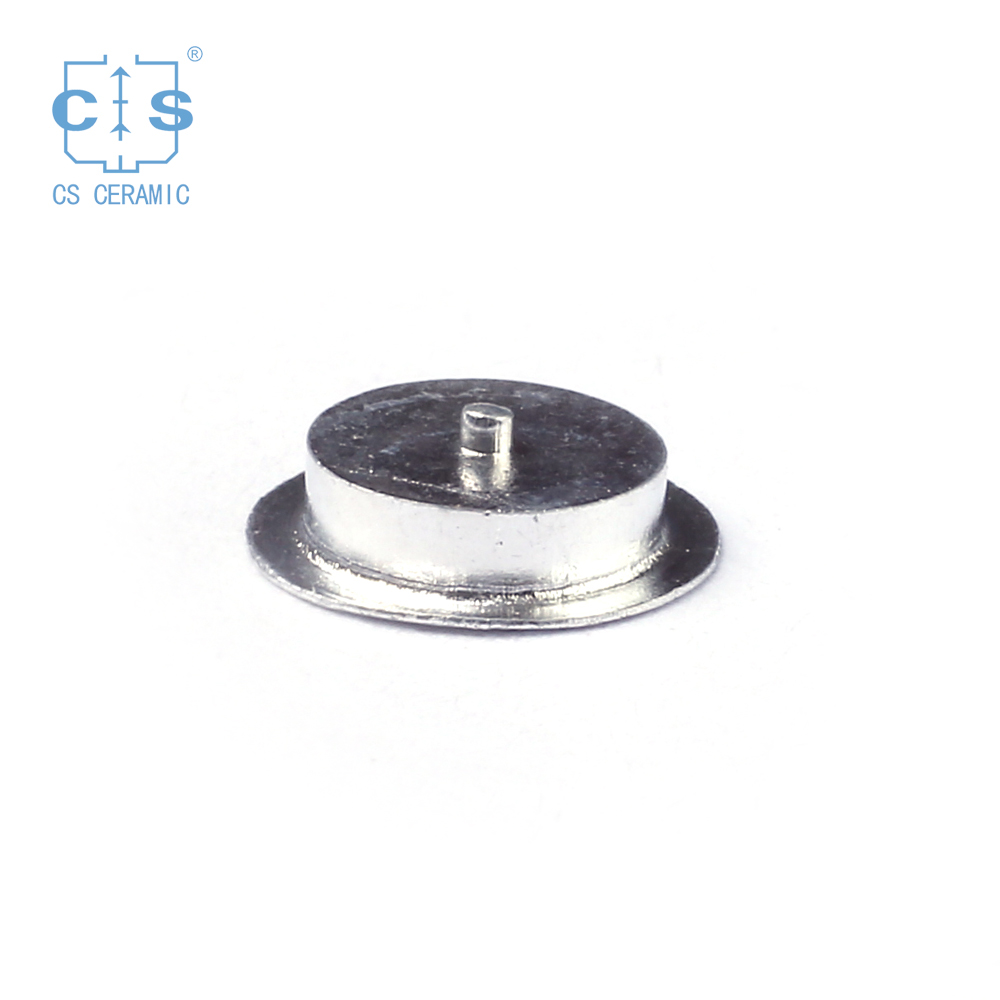

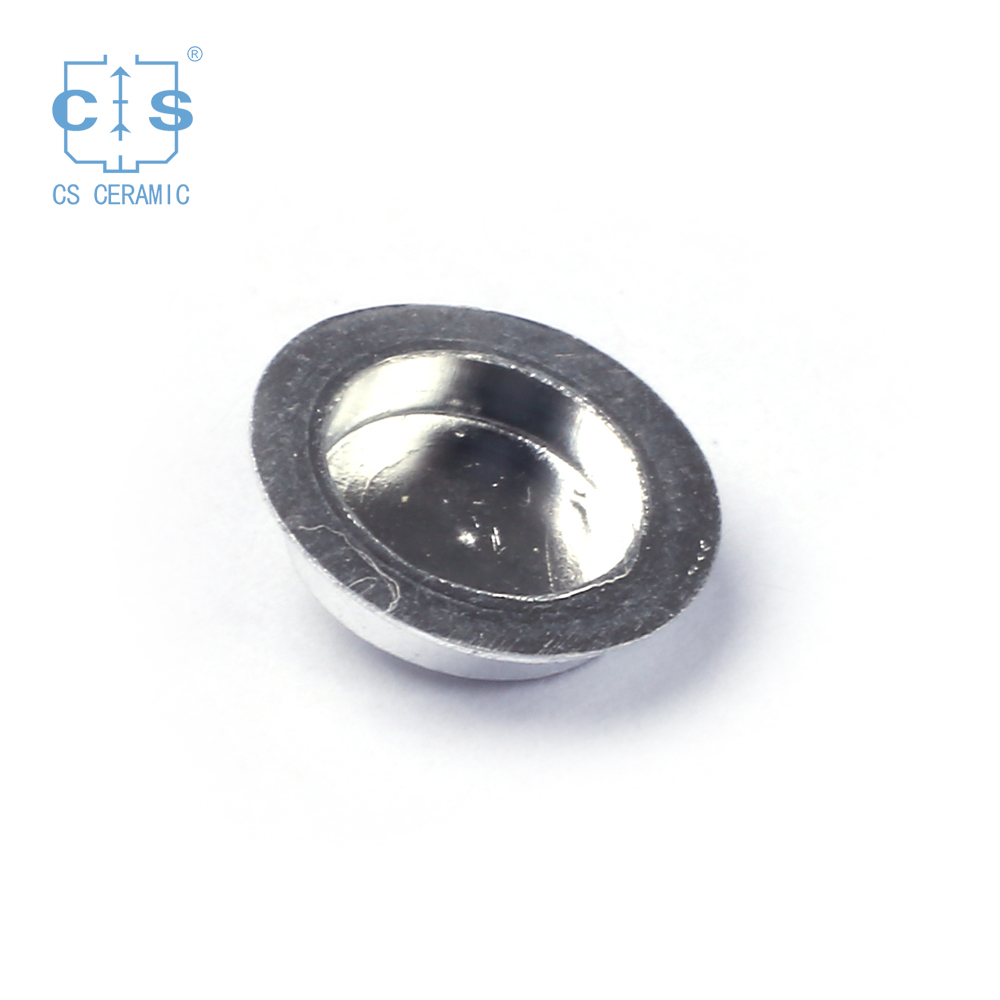

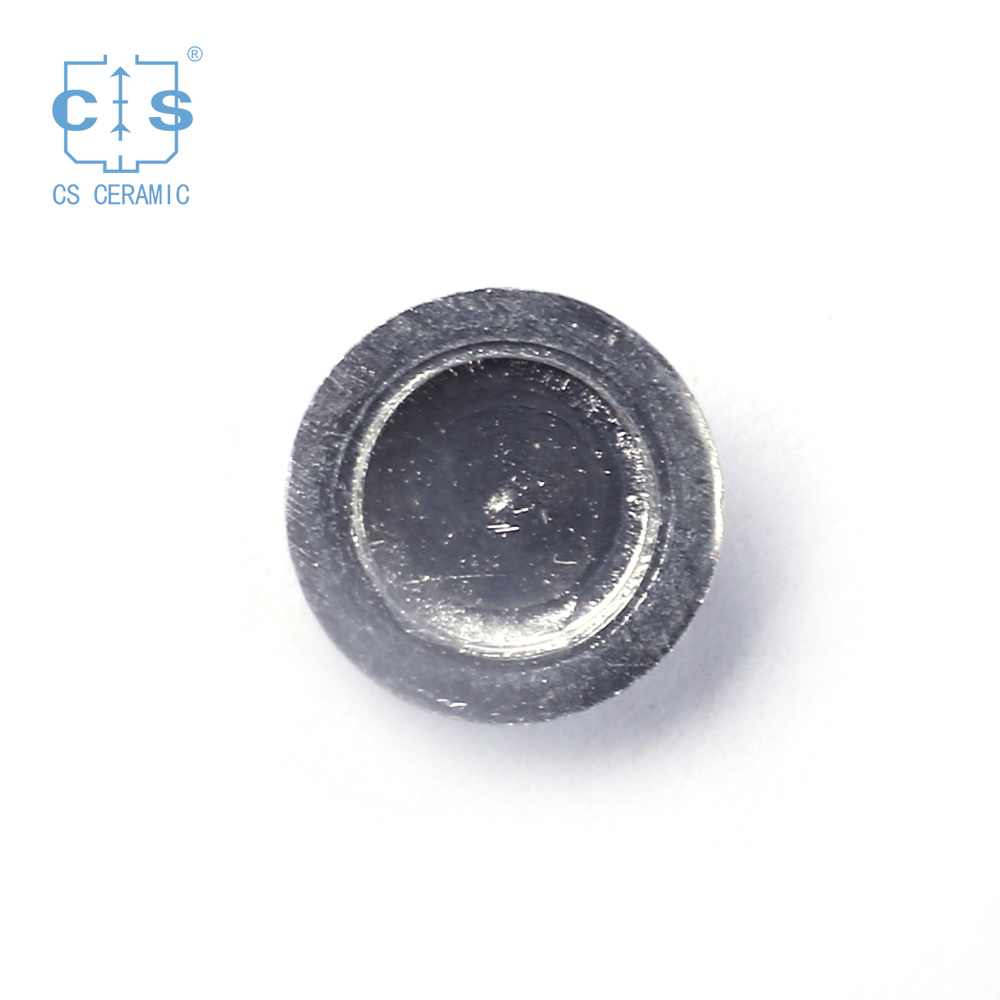

40μl Aluminum crucibles standard w/pin ME-00027331 crucible only for Mettler toledo (Sample pans)

40μl Aluminum crucibles standard w/pin ME-00027331 crucible only for Mettler toledo (Sample pans)

ME-00027331 Thermal analysis crucibles Aluminum crucibles sample pans for Mettler DSC and TGA measurements.

Thermal analysis consumables for dsc equipment. Manufacturer for Mettler Toledo crucibles and sample pans.

item no. :
CS-MM-012
Suitable for : Mettler
Material : Aluminum
Part NO : ME-00027331 crucible only

contact now catalogue

description

Product Item: 40μl Aluminum crucibles standard w/pin ME-00027331 crucible only for Mettler toledo (Sample pans)

Item info :

Type	Sample pan /crucible
Suitable for	Mettler
Part NO	ME-00027331 crucible only
Volume μL	40 μL
Pin	With
Llid	Without
Material	Aluminum
Temperature range	Room temperature to 600℃

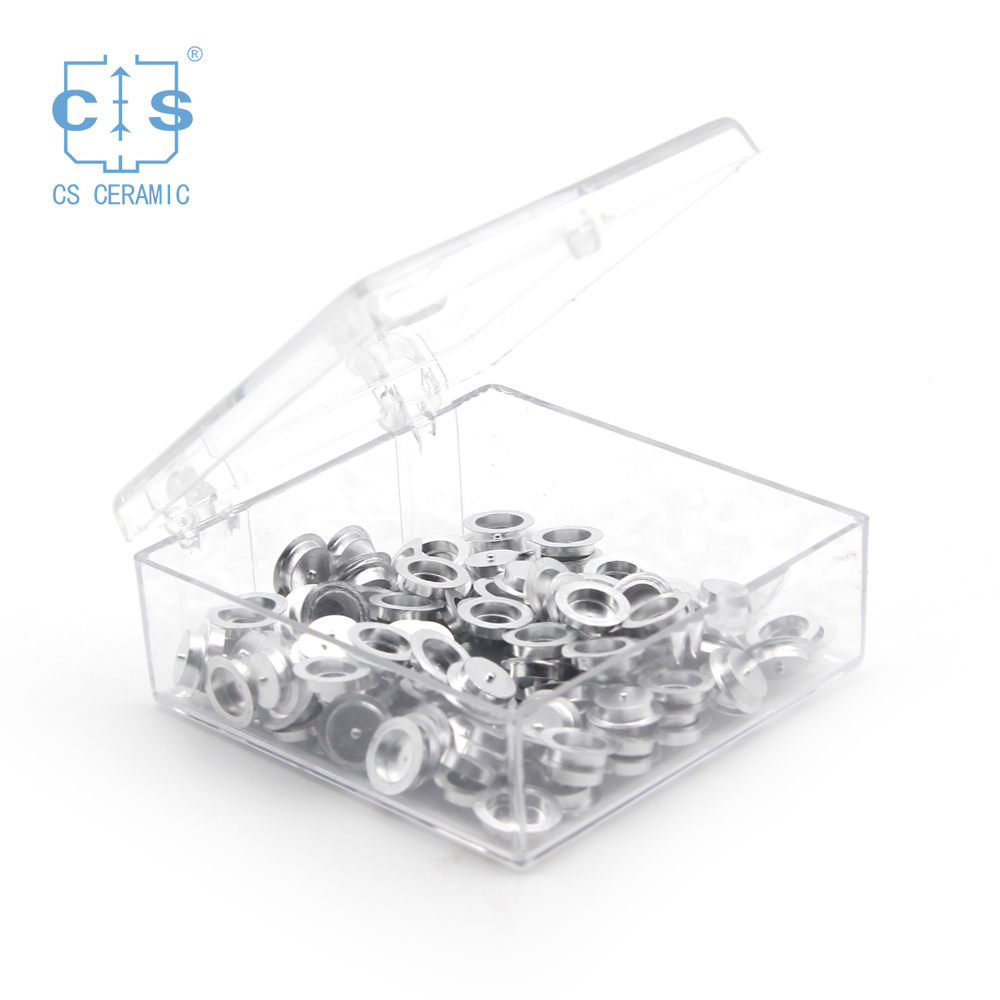

QTY/PKG	100PCS/BOX ; 400 PCS/BOX (Both available)
Brand	CS CERAMIC
Original	MADE IN CHINA

Usage :

Aluminum crucible for DSC measurements-it is very shallow (low in height)and has a strong flat base(this ensures that temerature gradients are as low as possible)

Aluminum sample pan and cover: applicable for non-volatile solid sample, like polymer and medicine. It’s widely used for melting, crystallization and vitrifaction test of polymer and thermoplasticity material; Sample vessel is bayonet type, not sealed.

Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.

Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.

Shipping: We do international shipping for clients.

Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
