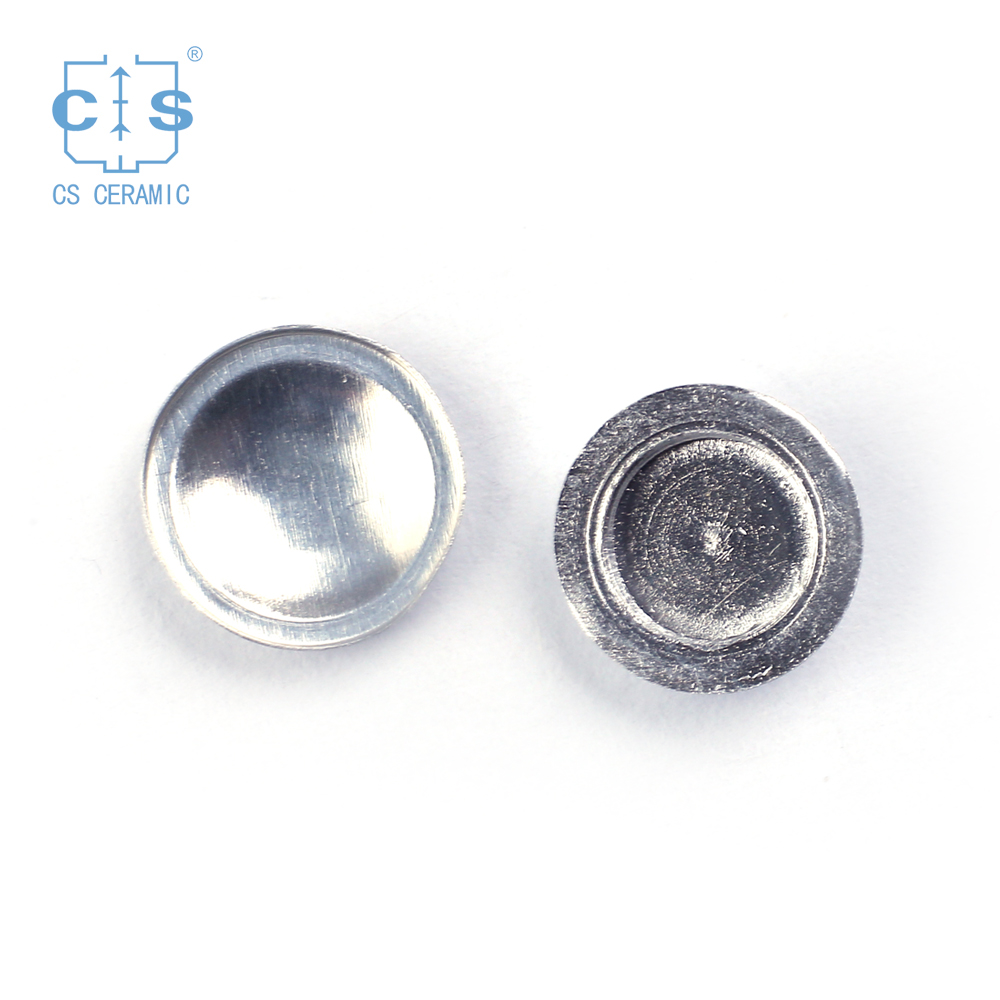

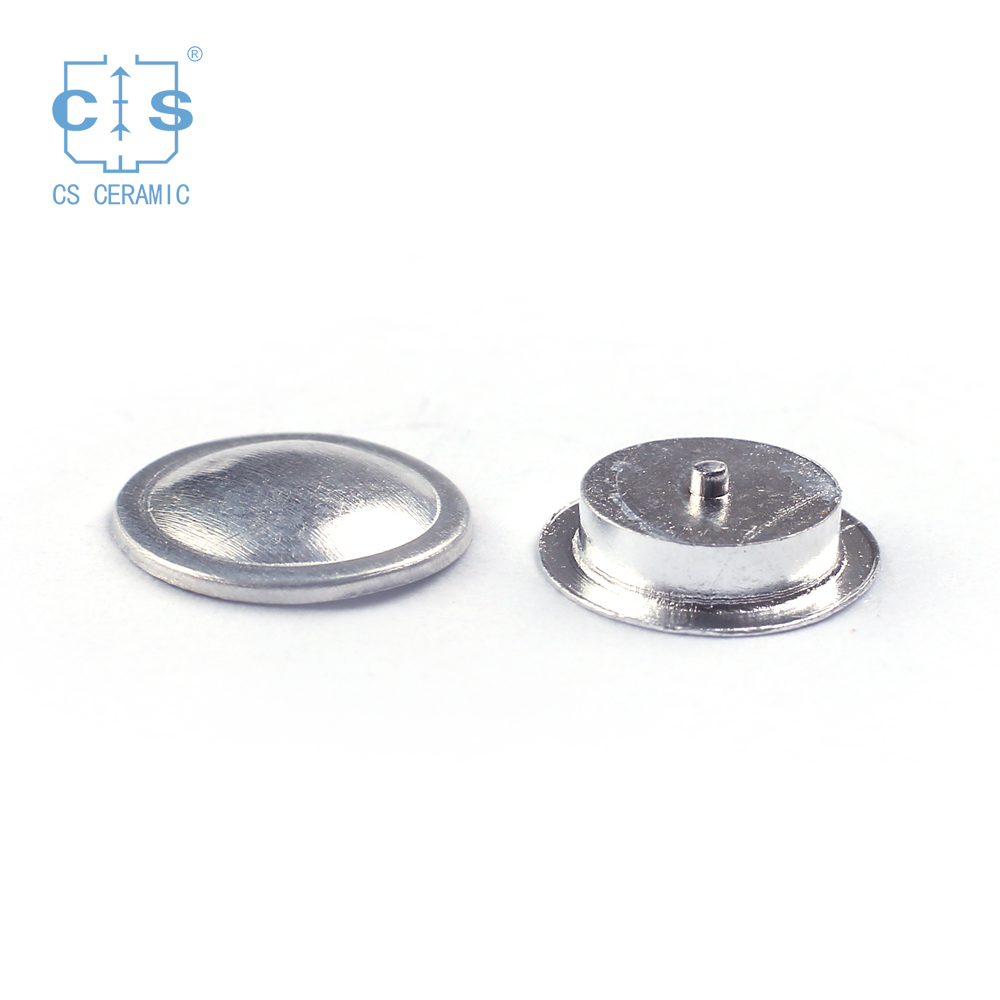

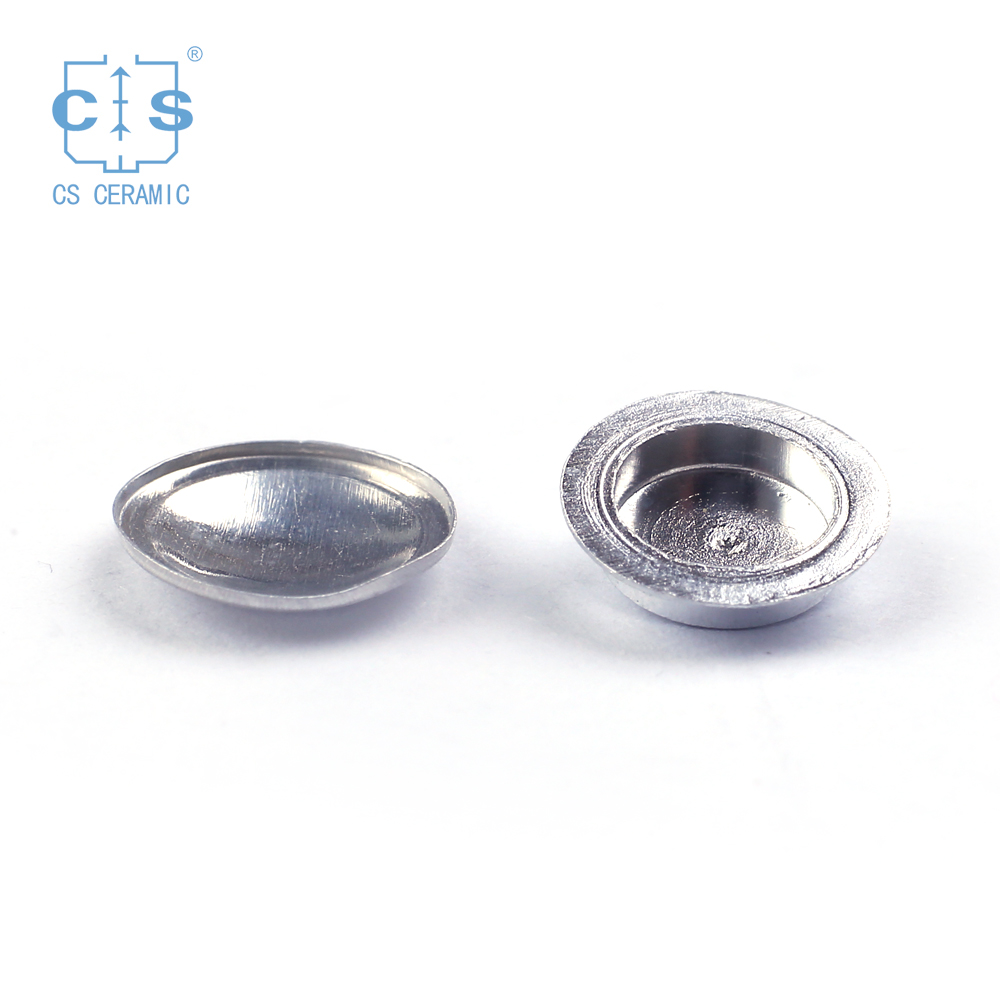

40μl Aluminum crucibles standard w/lid w/pin ME-00027331 for Mettler toledo (Sample pans)

40μl Aluminum crucibles standard w/lid w/pin ME-00027331 for Mettler toledo (Sample pans)

ME-00027331 Aluminum crucibles sample pans for Mettler DSC and TGA measurements. THERMAL ANALYSIS CONSUMABLES for dsc test. Manufacturer for Mettler Toledo crucibles and sample pans.

item no. :
CS-MM-013
Suitable for : Mettler
Material : Aluminum
Part NO : ME-00027331

contact now catalogue

description

40μl Aluminum crucibles standard w/lid w/pin ME-00027331 for Mettler toledo (Sample pans)

Item info :

Type	Sample pan /crucible
Suitable for	Mettler
Part NO	ME-00027331
Volume μL	40 μL
Pin	With
Lid	With standard lids (There are 2 lid types that can be combined with the 40 μL pans: standard lids and lids with a prepierced 50 μm hole ME-51140832.)
Material	Aluminum other Material is available 40μl Gold Crucible equivalent To ME-00027220
Temperature range	Room temperature to 640℃,Maximum Pressure 0.2 MPa
QTY/PKG	100PCS/BOX ; 400 PCS/BOX (Both available)
Brand	CS CERAMIC
Original	MADE IN CHINA

Usage:

Aluminum crucible for DSC measurements-it is very shallow (low in height)and has a strong flat base(this ensures that temerature gradients are as low as possible)

Aluminum sample pan and cover: applicable for non-volatile solid sample, like polymer and medicine. It’s widely used for melting, crystallization and vitrifaction test of polymer and thermoplasticity material; Sample vessel is bayonet type, not sealed.

Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.

Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.

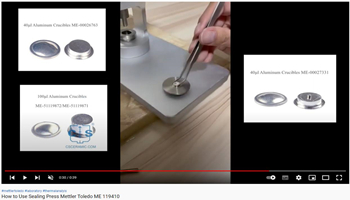

Aluminum crucibles with lid with pin ME-00027331 for Mettler Toledo (click to review the video)

Size details:

OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, and any special requirements. To speed up the quotation, please provide drawings.
