Volatile Matter Crucible

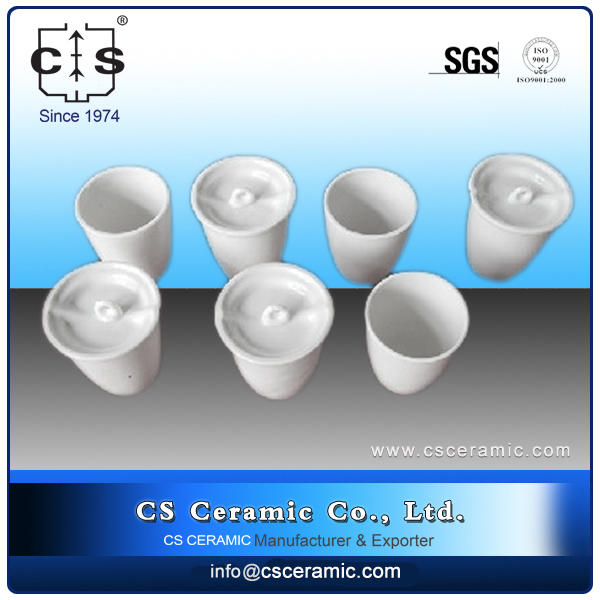

20ml Volatile Crucible Porcelain with Cover for Graphite Industry

20ml Volatile Crucible Porcelain with Cover for Graphite Industry

1.The materials used with high purity enable products to resist corrosion

2. Withstand sharp change in temperature.



  • item no. :

    CS-202
  • Descriptiion : Volatile Porcelain Ceramic Crucible

  • Size : 20ml

  • Material : ceramic

  • Ship way : by express/air/sea

  • description

20ml Volatile Crucible Porcelain with Cover for Graphite Industry


Product size:

Item NO. Capacity(ml) Rim diam.(mm) Bottom  diam.(mm) Height(mm)
CS-202 20 30 20 43

Operation
1) The firing temperature of  Volatile porcelain crucible with two lids specially for graphite industry  in our factory is 1280℃, and the firing time is 30 hours.

2) Its long-term working temperature shall not exceed 1000℃. The heating rate is recommended not to surpass 50℃ every 10 minutes. If the required working temperature is too high, pls choose corundum crucibles.

3) Because Al2O3(38-45%) and SiO2(45-62%) are main constituents of volatile porcelain crucible, pls avoid burning material that can react with Al2O3 and SiO2 as far as possible

4) The volatile porcelain crucible is fast consumable, so pls prevent the crucible from quick heating and cooling as far as possible to prolong the its service life.


More dimension of Volatile Crucible Porcelain with Cover for Graphite Industry

Item NO. Capacity(ml) Rim diam.(mm) Bottom  diam.(mm) Height(mm)
CS-201 15 28 18 40
CS-202 20 30 20 43
CS-203 30 40 24 50



Special offer:      Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used
