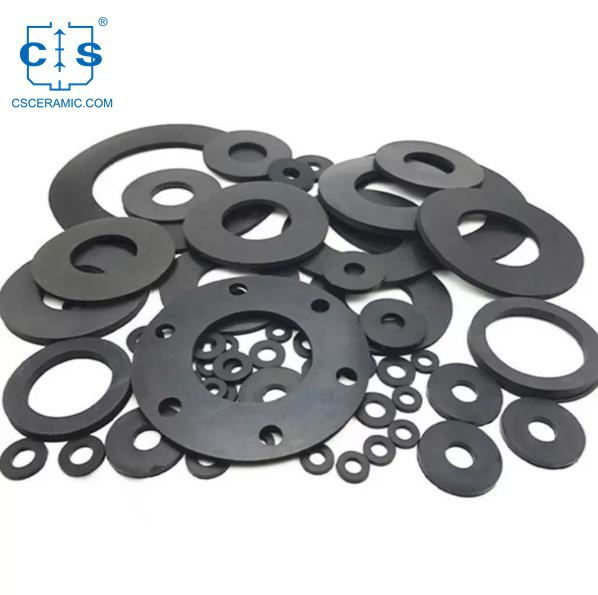

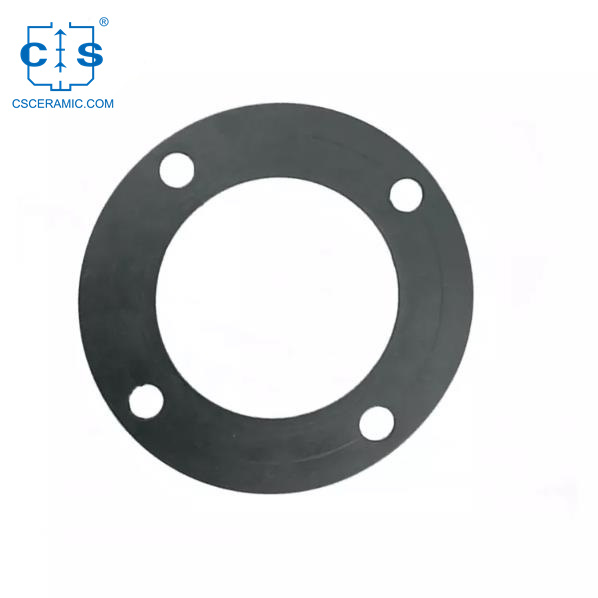

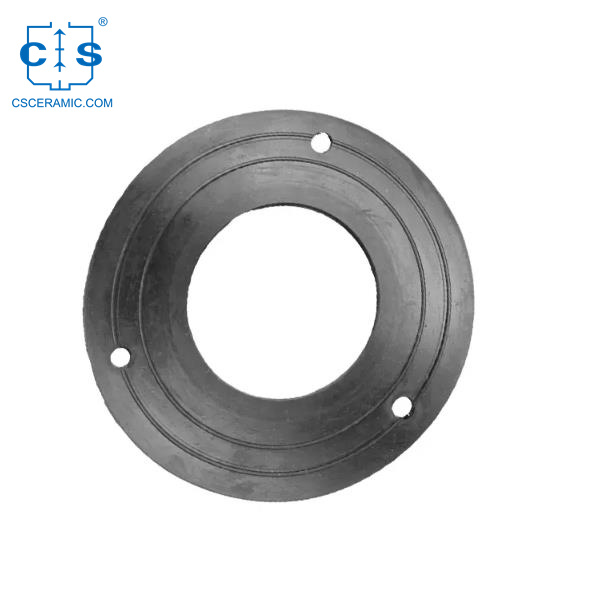

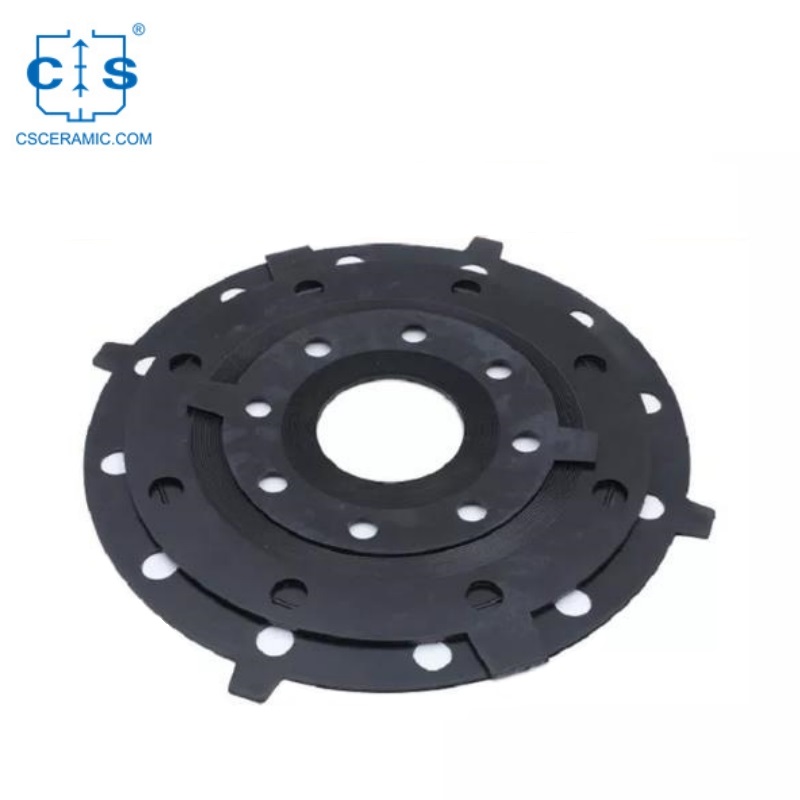

Read MoreSilicon carbide ceramic gaskets are lightweight and can be manufactured in a range of shapes to meet specific sealing requirements.
item no. :
CS-THG-DQ001Color :
BlackPort :
Any ports of Chinalead date :
5-7 daysMaterial : Silicon Carbide
Purity : 99%
Shape : Round
Original Country : China
1.High temperature resistance—Silicon carbide ceramic gaskets can withstand temperatures up to 2400°F (1315°C).
2. Extremely durable—Silicon carbide ceramic gaskets are very hard and abrasion-resistant, making them suitable for applications with high pressure and vibration.
3.Chemical resistance—Silicon carbide ceramic gaskets are resistant to a wide range of acids, alkalis, and other chemicals.
4.Non-flammable—Silicon carbide ceramic gaskets will not spark or catch fire.
5. Low friction—Silicon carbide ceramic gaskets are slick and provide a low coefficient of friction, making them ideal for sealing in applications where friction must be minimized.
6.Low thermal conductivity—Silicon carbide ceramic gaskets have a low thermal conductivity, which helps keep temperatures even and prevents hot spots.
Sic Gasket Applications
1.They are ideal for use in applications that require excellent sealing performance in extreme temperature and pressure conditions.
2.The high temperature and pressure resistance of Silicon Carbide Ceramic Gaskets make them ideal for use in applications such as engines, turbines, exhaust systems, and other high-temperature, high-pressure environments.
3.The chemical resistance of Silicon Carbide Gaskets makes them ideal for use in chemical processing, power generation, and other industrial applications.
4.Silicon Carbide Ceramic Gaskets are also used in pumps, valves, and fittings to ensure a tight seal in harsh environments.
5.Silicon Carbide Ceramic Gaskets are also used in medical and dental applications, including medical and dental implants, prosthetics, and other medical devices.
6.The ceramic properties of Silicon Carbide Gaskets make them ideal for use in medical applications, as they are able to withstand high temperatures and pressures, while providing superior sealing performance.
7.Silicon Carbide Ceramic Gaskets are also used in food processing, industrial and laboratory equipment, and other applications.
Type | Material | Description |
Sintered Silicon Carbide (S-SiC) | SMB1 Basic pure SiC | Purity of SiC > 98% |
Hv:26 Gpa | ||
SMG1 Graphite impregnated | 15%~20% content of Graphite | |
SMP1 Porous | Better friction resistance | |
Reaction Bonded SiliconCarbide (RB-SiC) | SMB2 Basic SiC | Purity of SiC > 88% |
SMG2 Graphite impregnated | 20%~30% content of Graphite |
Item
OD (mm)
ID (mm)
Thickness (mm)
Purity
CS-THG-DQ001
25
15
15
99
CS-THG-DQ002
28
20
9
99
CS-THG-DQ003
31
17
10
99
CS-THG-DQ004
36.5
30
4.5
99
CS-THG-DQ006
50
46
8
99
CS-THG-DQ007
50
11.5
3
99
CS-THG-DQ008
50
30
8
99
CS-THG-DQ009
51
9
2.5
99
CS-THG-DQ010
20.5
14
5
99
CS-THG-DQ011
62
50
15
99
CS-THG-DQ012
65
40
10
99
CS-THG-DQ013
68
48
20
99
CS-THG-DQ014
90
72
8.5
99
CS-THG-DQ015
200
140
30
99
CS-THG-DQ016
260
200
45
99
CS-THG-DQ017
370
320
25
99
CS-THG-DQ018
430
400
8.5
99
CS-THG-DQ019
500
470
20
99
CS-THG-DQ020
500
160
16
99
1.Silicon Carbide ceramic gasket tests usually involve physical property testing, such as dimensional accuracy, hardness, surface finish, and resistance to thermal shock, wear and abrasion.
2.These tests are typically conducted according to standards such as ASTM (American Society for Testing and Materials) E155, ASTM E534, and ASTM E2071.
3.Manufacturers may also use their own proprietary tests to ensure that their gaskets perform to their specifications.
CS’s Silicon Carbide Gasket is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Requirements for Customization
1. If there are drawings, please send drawings (CAD,PDF, hand sketch), etc.
2. Specify the size, quantity, thickness and other specifications.
3. Determine the processing technology (simple cutting, drilling, to map custom parts, grinding, milling saw cutting.
4. Pay according to the actual quotation.
Note: If the size requirements are particularly accurate, please explain to customer service. Because there are certain tolerances in normal process standards such as cutting, grinding and drilling, please explain in advance if there are precision requirements for irregular parts.
Why Choose US
As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market.
1.Reliable quality control, complete specifications, support customization of non-standard products.
2.Professional and committed service team.
3.Multiple protection of packaging, secure and reliable.
4.Highly efficient delivery channel, safe and rest-assured.
FAQ
1.Q: What is silicon carbide ceramic gasket?
A: Silicon carbide ceramic gasket is a kind of gasket material made of silicon carbide ceramic material. It has excellent properties such as wear-resistance, corrosion-resistance, high temperature resistance and good mechanical properties, which is widely used in sealing environment with high temperature, high pressure and harsh chemical media.
2.Q: What are the advantages of silicon carbide ceramic gaskets?
A: Silicon carbide ceramic gaskets offer good mechanical properties, high temperature resistance and good chemical resistance. They are often used in sealing applications where high temperature, high pressure and harsh chemical media are present. They are also lightweight and easy to install.
Silicon carbide mechanical seals are widely used in machinery, petroleum, chemical industry, water treatment, aerospace, ship, metallurgy and nuclear power.
