Zirconia Ceramic Tube
High-Strength Magnesia Stabilized Zirconia Ceramic Tube MSZ Pipe High-Strength Magnesia Stabilized Zirconia Ceramic Tube MSZ Pipe

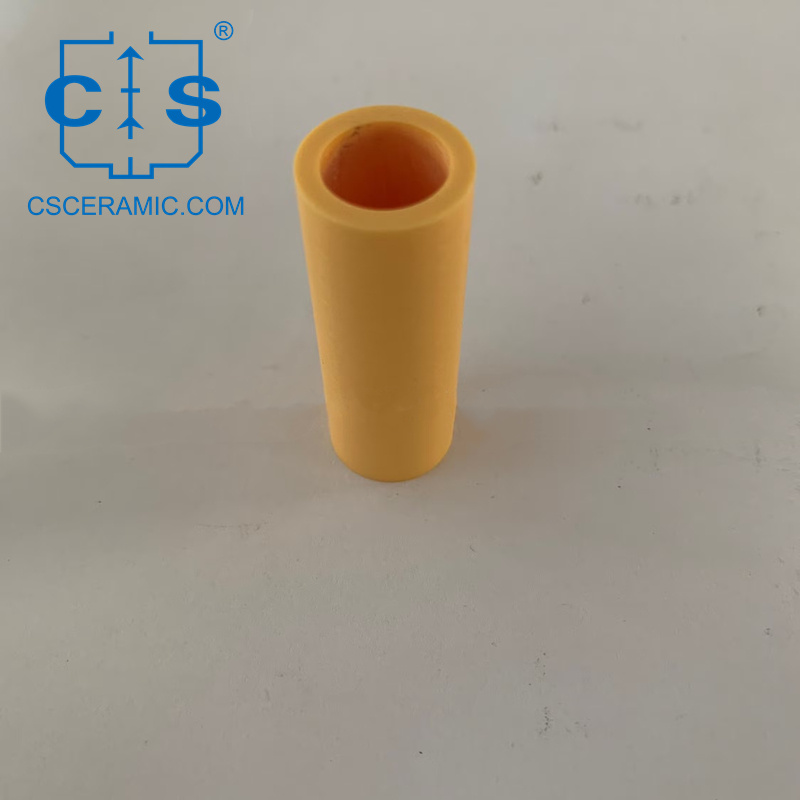

High-Strength Magnesia Stabilized Zirconia Ceramic Tube MSZ Pipe

MSZ Tube offers high strength, impact resistance and thermal shock resistance. ideal for insulating bushings in metallurgy and electronics.
  • item no. :

    CS-MGO-G1001
  • Material : MSZ

  • description

Properties of Magnesia Stablized Zirconia Ceramic Tube



  1. High Durability: MSZ Ceramic Tube boasts high mechanical strength, excellent impact resistance, wear resistance, and a long service life, making it a reliable choice for demanding applications.
  2. Smooth & Self-Lubricating: Featuring a smooth surface and self-lubricating properties, the tube requires no lubrication maintenance and offers low operating resistance, enhancing efficiency.
  3. High Temp & Corrosion Resistance: Resistant to high temperatures up to 1000℃ and corrosive environments, MSZ Ceramic Tube offers thermal shock resistance and chemical stability, enduring rapid temperature changes and contact with various acids and alkalis without corrosion failure.



Applications of MSZ Ceramic Tube


MSZ Ceramic Tube is versatile, suitable for thermal protection tubes, hydraulic cylinders, insulating sleeves, and more. It is widely used in hydraulic systems, the metallurgical industry, chemical industry, electronics, and electrical appliances, delivering exceptional performance in harsh conditions.




Size Chart of MSZ Ceramic Tube

Please provide drawing and parameter requirements for customization.



Magnesia Stablized Zirconia Ceramic Tube
Item NO. Outer Diameter
(mm)
Inner Diameter
(mm)
Length
(mm)

CS-MGO-G1001 3 1 20 Single bore tube
CS-MGO-G1002 10 5 20
CS-MGO-G1003 15 7 25
CS-MGO-G1004 30 20 45
CS-MGO-G1005 40 32 50
CS-MGO-G1006 62.5 52.5 87
