item no. :
CS-OEM-123Material : Alumina ceramic
Shape : OEM
1. High temperature resistance,long-term use at 1600 ℃, short-term use at 1800 ℃.
2. It is resistant to thermal shocks, corrosion, and chemical attacks.
3. It is non-porous and has excellent heat conductivity.
4. The crucible’s nose has a smooth surface and is easy to clean.

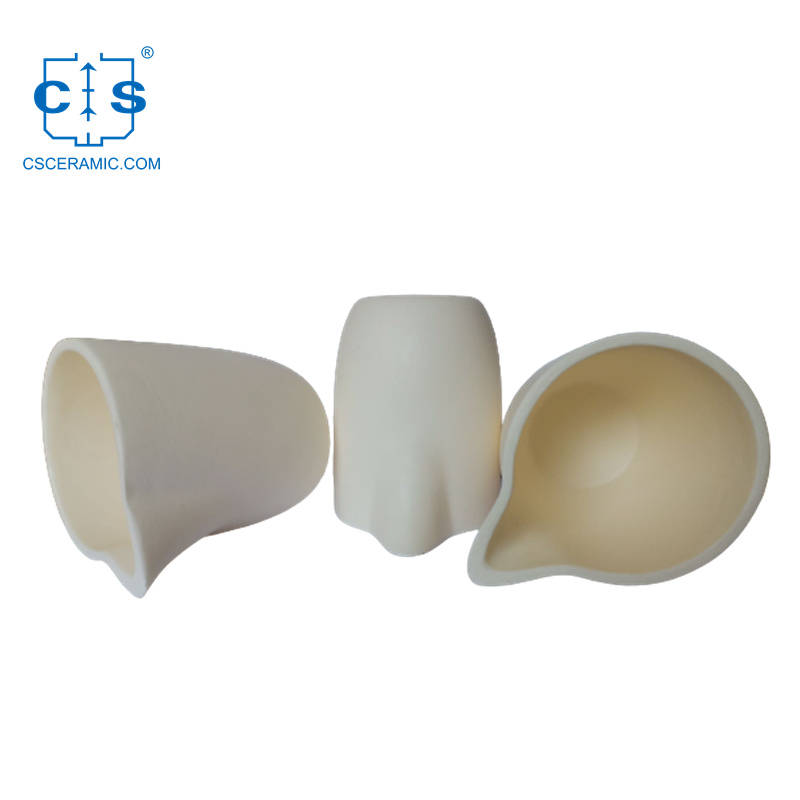

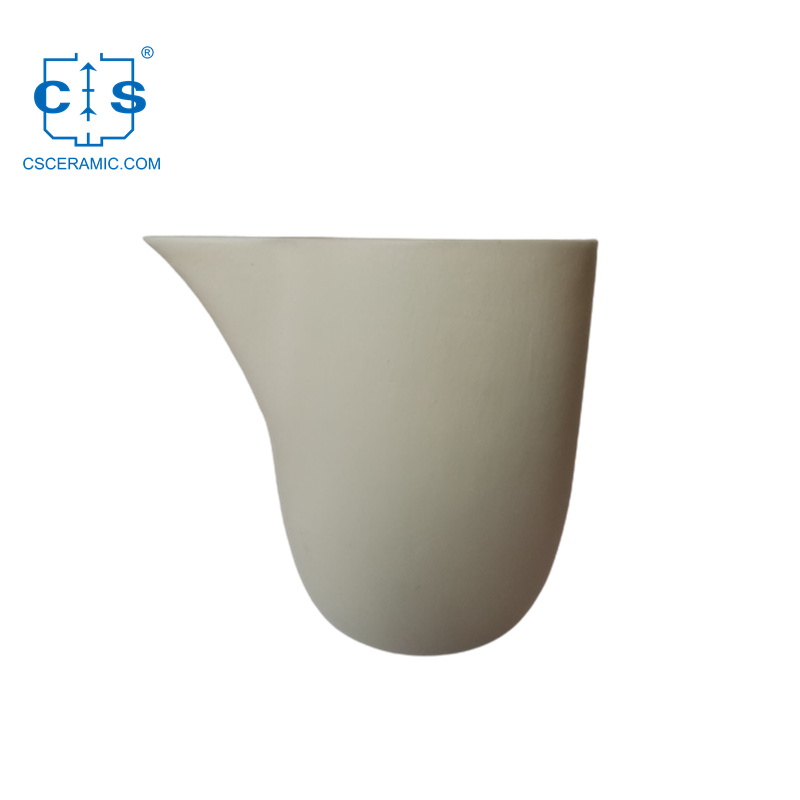

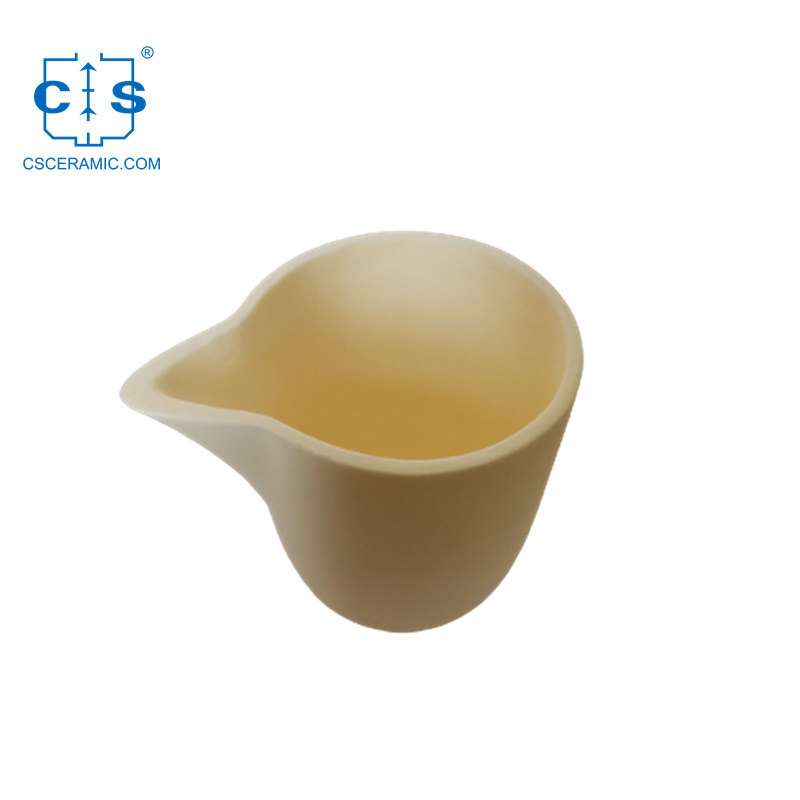

1. Alumina Ceramic Crucible with nose is made of 99.7% high purity aluminum oxide ceramic material.
2. It is secondhand for melting, refining and etching of various precious metals and alloys.
3. It is easy to use and clean and is lightweight for soft handling.
4. The crucible is resistant to corrosion and thermal shock, making it an ideal option for precious metal refining.
Item NO. |
Outer diameter
(mm)
|
Thickness
(mm)
|
Inner diameter
(4mm Thickness)
|
Inner diameter
(8mm Thickness)
|
TOP diameter
(mm)
|
Height
(mm)
|
Purity(%) |
CS-OEM-124 | 30 | 4-8 | 22 | 14 | 40 | 15 | 99.6 |
CS-OEM-125 | 30 | 4-8 | 22 | 14 | 40 | 28 | 99.6 |
CS-OEM-126 | 30 | 4-8 | 22 | 14 | 40 | 35 | 99.6 |
CS-OEM-127 | 40 | 4-8 | 32 | 24 | 50 | 30 | 99.6 |
CS-OEM-128 | 44 | 4-8 | 36 | 28 | 54 | 27 | 99.6 |
CS-OEM-129 | 50 | 4-8 | 42 | 34 | 60 | 35 | 99.6 |
CS-OEM-130 | 50 | 4-8 | 42 | 34 | 60 | 47 | 99.6 |
CS-OEM-131 | 50 | 4-8 | 42 | 34 | 60 | 60 | 99.6 |
CS-OEM-132 | 50 | 4-8 | 42 | 34 | 60 | 75 | 99.6 |
CS-OEM-133 | 60 | 4-8 | 52 | 44 | 70 | 80 | 99.6 |
CS-OEM-134 | 68 | 4-8 | 60 | 52 | 78 | 92 | 99.6 |
CS-OEM-135 | 75 | 4-8 | 67 | 59 | 85 | 46 | 99.6 |
CS-OEM-136 | 80 | 4-8 | 72 | 64 | 90 | 75 | 99.6 |
CS-OEM-137 | 85 | 4-8 | 77 | 69 | 95 | 90 | 99.6 |
CS-OEM-138 | 90 | 4-8 | 82 | 74 | 100 | 80 | 99.6 |
CS-OEM-139 | 94 | 4-8 | 86 | 78 | 104 | 76 | 99.6 |
CS-OEM-140 | 100 | 4-8 | 92 | 84 | 110 | 65 | 99.6 |
CS-OEM-141 | 190 | 4-8 | 182 | 174 | 200 | 70 | 99.6 |
CS-OEM-142 | 190 | 4-8 | 182 | 174 | 200 | 65 | 99.6 |
CS-OEM-143 | 100 | 4-8 | 92 | 84 | 110 | 70 | 99.6 |
CS-OEM-144 | 150 | 4-8 | 142 | 134 | 160 | 80 | 99.6 |
CS-OEM-145 | 270 | 8 | / | 254 | 280 | 55 | 99.6 |
CS-OEM-146 | 340 | 8 | / | 324 | 350 | 120 | 99.6 |
CS-OEM-147 | 400 | 8 | / | 384 | 410 | 90 | 99.6 |
CS-OEM-148 | 450 | 8 | / | 434 | 460 | 85 | 99.6 |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
1. Alumina undefined melting pot with Nozzle can be used as a high temperature container for melting.
2. It is old for holding and transferring liquefied materials in metallurgy, chemical substance industry, machinery, get down industry, aerospace and other fields.
3. It is suitable for high temperature fast heating and cooling processes with excellent thermal shock resistance.
4. It is corrosion tolerant and can be old for hanker term storage of corrosive materials.
5. It is an excellent electrical insulator and is ideal for electroplating and insulator applications.
Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
Moisture absorption | % | 0 | 0 | 0 | ||
Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
Dielectric constant (100MHz) | (E) | 9.5 |
Q1: What is an aluminium oxide ceramic crucible with nozzle?
A1: An aluminum oxide ceramic melting pot with nose is a senior high temperature thawing pot successful from alumina ceramic material, which is secondhand for warming and molding metals and strange materials. It is premeditated with a nozzle to allow for easy running of the liquified material.
Q2: What are the advantages of victimization an alumina ceramic crucible with nozzle?
A2: An Al oxide ceramic melting pot with nozzle offers several advantages, including excellent caloric shock resistance, fantabulous chemical resistance, and senior high temperature stability. It also has a low indefinite of thermal expansion, which makes it ideal for apply in senior high school temperature applications.
Q3: What types of materials can be melted in an aluminum oxide ceramic crucible with nozzle?
A3: An aluminium oxide ceramic melting pot with nozzle tin be used to melt a variety of metals and other materials, including aluminum, copper, brass, zinc, and lead.
Q4: What is the vague of an alumina undefined crucible with nozzle?
A4: The capacity of an aluminium oxide ceramic melting toilet with nozzle varies depending on the size of the crucible, but typically ranges from 1 to 10 liters.
Q5: What is the lifespan of an alumina undefined crucible with nozzle?
A5: The lifespan of an alumina ceramic melting can with nose depends on the relation relative frequency of use and the type of stuff organism melted, but typically ranges from 1 to 3 years.
1. Use a soft textile or brush to transfer any dust or dirt from the alumina ceramic crucible with nozzle.
2. Mix a mild detergent with warm water and use a easy cloth to gently scrub the surface of the crucible.
3. Wash the crucible with clean water and dry it with a easy cloth.
4. Utilize a soft sweep to clean the nozzle of the crucible.
1. Visual inspection: The alumina undefined melting pot with nozzle should be checked for any circumpolar defects such as cracks, chips, or other imperfections.
2. Dimension verification: The dimensions of the aluminium oxide undefined crucible with nozzle should be verified to ensure that it meets the nominal requirements.
3. Leak test: A leakage test should be conducted to ensure that the alumina undefined melting pot with nozzle is airtight and does not allow some liquids or gases to escape.
4. Thermal traumatize test: The aluminium oxide ceramic crucible with nozzle should be subjected to thermic shock testing to ensure that it tin withstand extreme temperatures without cracking or breaking.
