Mettler aluminum pans

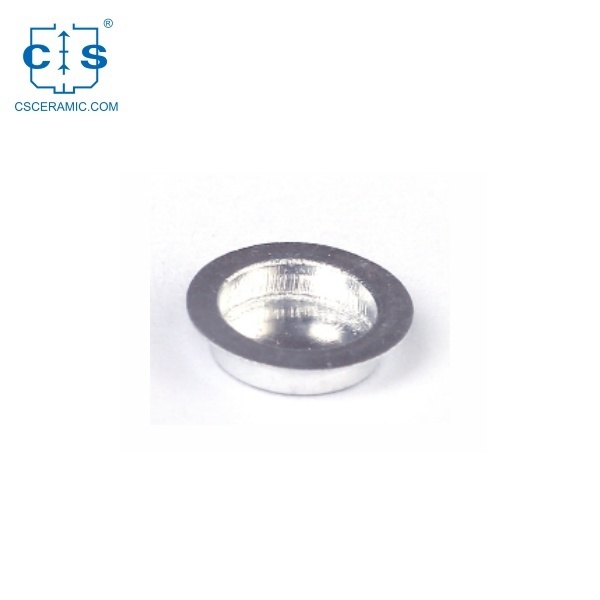

40μl Standard Aluminum Crucibles ME-51119870 Mettler toledo (Thermal analysis crucibles) 40μl Standard Aluminum Crucibles ME-51119870 Mettler toledo (Thermal analysis crucibles) 40μl Standard Aluminum Crucibles ME-51119870 Mettler toledo (Thermal analysis crucibles) 40μl Standard Aluminum Crucibles ME-51119870 Mettler toledo (Thermal analysis crucibles)

40μl Standard Aluminum Crucibles ME-51119870 Mettler toledo (Thermal analysis crucibles)

40μl ME-51119870 Thermal analysis Aluminum crucible for Mettler DSC and TGA measurements. Thermal Analyzer Sample Pans for  thermomechanical analysis.

  • item no. :

    CS-MM-014
  • Suitable for : Mettler

  • Material : Aluminum

  • Part NO : ME-51119870

  • description

Product Item: 40μl Standard Aluminum Crucibles ME-51119870 Mettler toledo (Thermal analysis crucibles)



Item info.

Type Sample pan/crucible
Suitable for Mettler DSC/TGA/sample robot
Part NO ME-51119870
Volume μL 40 μL
Pin Without
Lid  Without
Matching Lid Aluminum Lids ME-51119871
Matching Sealing Tool Crucible Sealing Press ME-119410
Material Aluminum
Temperature range Room temperature to 600℃
QTY/PKG 100PCS/BOX  ; 400 PCS/BOX  (Both available)
Brand CSCERAMIC
Original MADE IN CHINA

This crucible has the smallest signal time constant, especially when combined with helium. It is very suitable for pressing a film, sheet or powder sample against the bottom of the crucible. The gap between the crucible and the lid forms a naturally occurring atmosphere, however, a freely exchanged atmosphere can also be obtained if the lid is drilled.



Notice :

To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.


Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.




Shipping:    We do international shipping for clients.


Special offer:  Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
