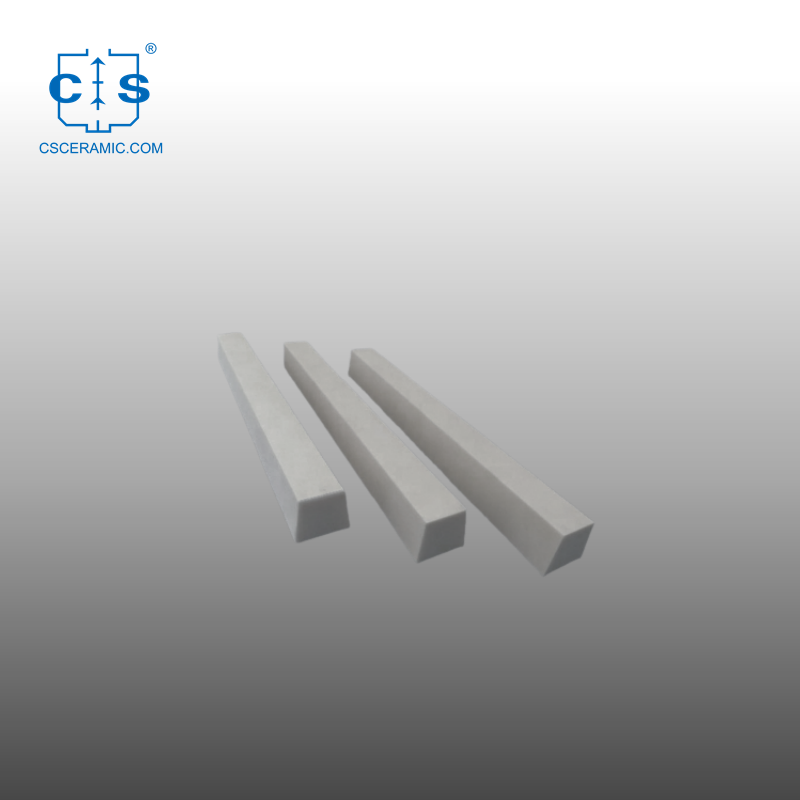

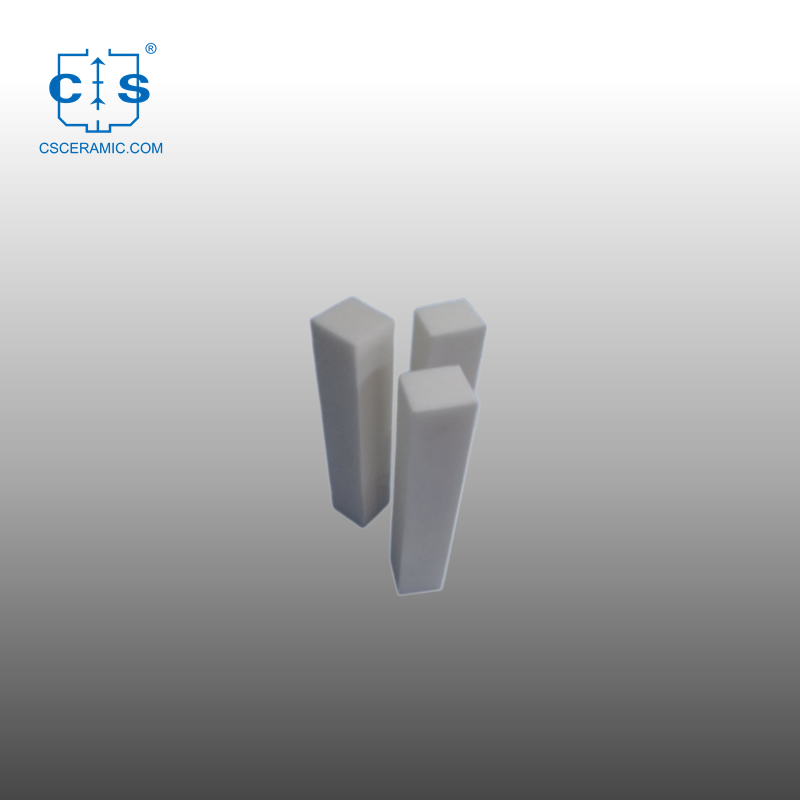

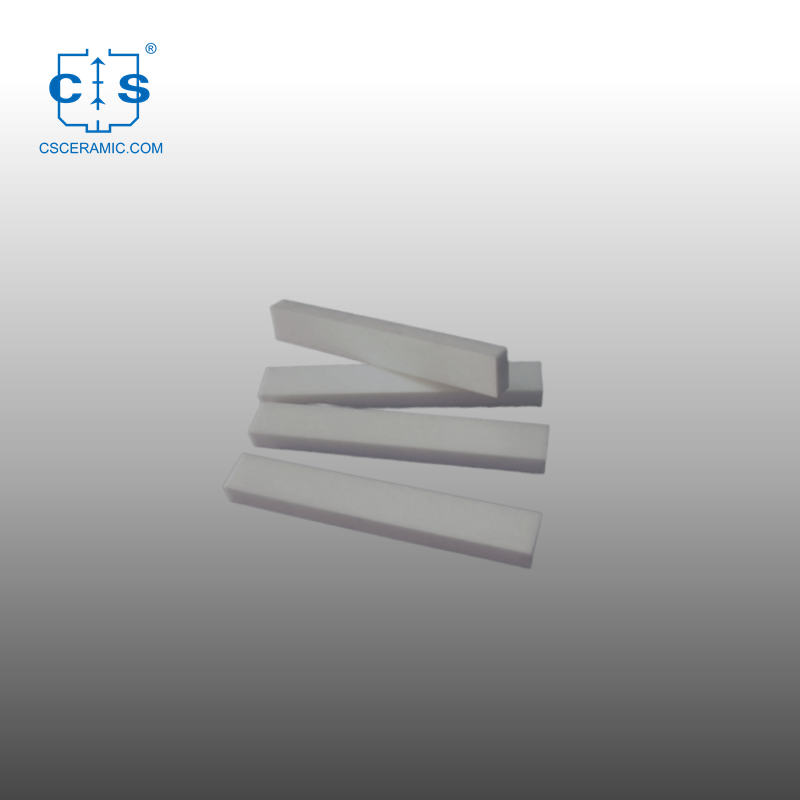

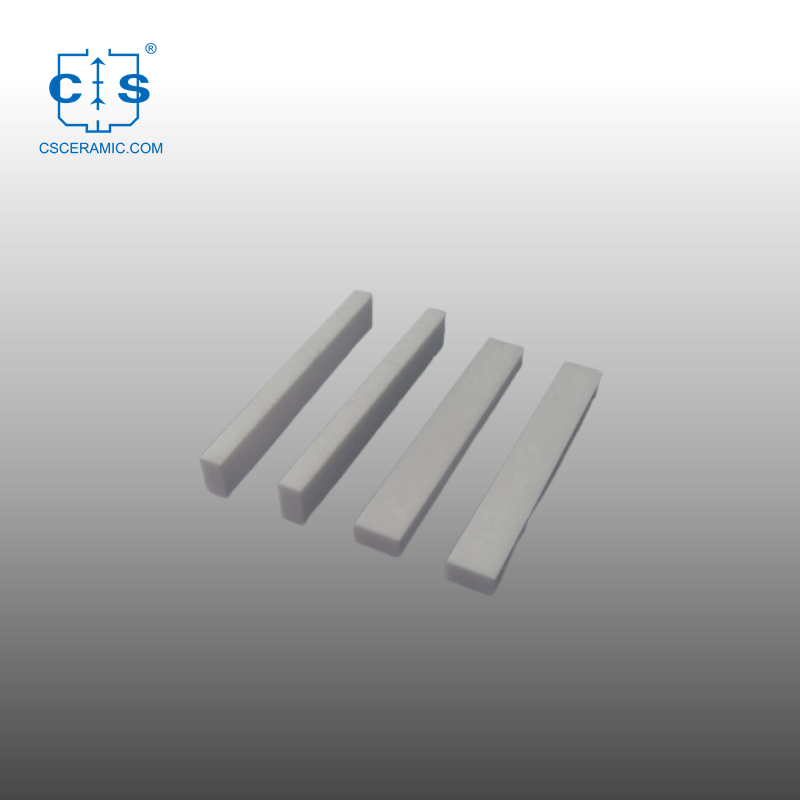

Read MoreSquare Aluminum Nitride Ceramic Rod is cost-effective ceramic solution for demanding industrial applications, and its high-strength and low-weight make it perfect for aerospace components.Available in a variety of sizes.
item no. :
CS-AIN-AG019Material : Aluminum Nitride
Shape : Square
Square aluminum nitride rod advantages:
1. High thermal conductivity
2. Wear resistance
3. High temperature resistant
4. Corrosion resistance
5. High resistivity
6. Low dielectric loss
7. High electrical insulation capacity
8. Low thermal expansion
Square aluminum nitride rod description:
1. High performance ceramic material with lightweight, thermal conductivity, and corrosion resistance.
2. Great choice for applications that require high heat and electrical insulation, as well as superior strength and rigidity.
3. It is ideal for semiconductor and other high-temperature processing applications, where its superior thermal conductivity keeps components cool and safe.
4. Cost-effective ceramic solution for demanding industrial applications, and its high-strength and low-weight make it perfect for aerospace components.
Square aluminum nitride rod size details:
Square aluminum nitride rods | |||||
Item NO. | Length(mm) | Width(mm) |
Rod Length
(mm)
|
Purity | Coefficient of thermal conductivity |
CS-AIN-AG019 | 8 | 3 | 60 | 99% | ≥170W/m·k |
CS-AIN-AG021 | 10 | 5 | 80 | 99% | ≥170W/m·k |
CS-AIN-AG022 | 13 | 6 | 30 | 99% | ≥170W/m·k |
CS-AIN-AG023 | 16 | 12 | 140 | 99% | ≥170W/m·k |
CS-AIN-AG024 | 19 | 15 | 160 | 99% | ≥170W/m·k |
CS-AIN-AG025 | 20 | 15 | 100 | 99% | ≥170W/m·k |
CS-AIN-AG026 | 7-50 | 4-35 | 20-400 | 99% | ≥170W/m·k |
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
Square aluminum nitride rod applications:
1. Microwave attenuation materials
2. Heat resistant punching and heat exchange materials
3. Heat resistant materials
4. AlN ceramic materials have broad application prospect and broad potential market in electronic field, electric power, locomotive, aviation and aerospace, national defense and military industry, communication and many industrial fields.
Properties:
Material Properties of AIN Ceramic | ||||||
Property Sort | Characteristic | Unit | Property Index | |||
AN170 | AN200 | AN220 | ||||
Basic Property | Color | - | Grey | Grey | Beige | |
Water absorption | % | 0 | 0 | 0 | ||
Volume density | g/cm3 | ≥3.30 | ≥3.30 | ≥3.26 | ||
Surface roughness | um | 0.1~0.6 | 0.1~0.6 | 0.1~0.6 | ||
Camber | (length ‰) | ≤2‰ | ≤2‰ | ≤2‰ | ||
Thermal Property | Thermal conductivity (20℃) | W/m.k | ≥170 | ≥200 | ≥220 | |
Coefficient of thermal expansion | (20℃~300℃) | (*10-6/℃) | 4.6 | 4.6 | 4.5 | |
(40℃~800℃) | 5.2 | 5.2 | 5.2 | |||
Mechanical Property | Bending strength | MPa | ≥450 | ≥300 | ≥200 | |
Modulus strength | GPa | 320 | 310 | 310 | ||
Moh's hardness | - | 8 | 8 | 8 | ||
Electrical Property | Dielectric strengh | KV/mm | ≥17 | ≥16 | ≥15 | |
Volume resistivity | Ω.cm | ≥1014 | ≥1014 | ≥1013 | ||
Dielectric constant | - | 9 | 8.6 | 8.5 | ||
Dielectric loss | *10-4 | 2.98 | 2 | 2 |
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of aluminum nitride rod, such as shape, dimension, quantity, application etc.
Q2. What types of aluminum nitride rods are available?
Aluminum nitride rods are available in a variety of sizes, shapes, and grades, depending on the application. Common types include rods with a standard round shape, rods with a rectangular shape, rods with a triangle shape, and rods with a hexagonal shape.
Q3. How do aluminum nitride rods compare to other materials?
Aluminum nitride rods offer a good balance of cost, weight, and performance when compared to other ceramic materials. They are also easier to machine than other materials, making them a popular choice in many applications.
Q4. What is the lead time for the aluminum nitride rod?
The lead time is dependent on the size and quantity required. Please contact us for more infor.
How to clean aluminum nitride rod:
1. First, place the aluminum nitride rod in a solution of warm water and mild detergent.
2. Use a soft cloth or brush to scrub the rod gently, taking care not to damage the ceramic.
3. Rinse the rod off with clean, warm water and make sure all detergent residue is removed.
4. Dry the aluminum nitride rod with a clean, soft cloth, and inspect it for any remaining dirt or debris.
5. If necessary, repeat the cleaning process until the rod is free of any residue.
Quality testing standards:
1. Visual inspection of the rod for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the rod to check for accuracy.
3. Checking for any leaks or pinhole defects in the rod.
4. Verification of the material and chemical composition of the rod.
Packing way:
Production Process:
Why Choose us?
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
