Read Moreitem no. :
CS-NN1-001Material : Silicon Nitride
Purity Available : 98%
Shape : Ball
1.High Hardness and Wear Resistance: Silicon nitride grinding balls exhibit exceptional hardness, making them highly resistant to wear and abrasion.
2.Chemical Inertness: Silicon nitride is chemically inert, meaning it is resistant to most corrosive chemicals and environments.
3.High Temperature Stability: Silicon nitride has excellent thermal stability, allowing it to withstand high operating temperatures without significant degradation.
4.Low Friction and Heat Generation: They have low friction coefficients, which reduces the amount of heat generated during grinding.
5.Electrical Insulation: Silicon nitride is an excellent electrical insulator. This property is advantageous in applications where electrical conductivity must be avoided, preventing unwanted interactions between the grinding balls and the processed materials.
6.Compatibility with Various Materials: They are suitable for grinding a wide range of materials, including ceramics, minerals, metals, and even some polymers.
1.Silicon nitride grinding balls are ceramic spheres made from silicon nitride material.
2.They are used as grinding media in various industrial processes to finely grind and process materials to achieve desired particle sizes and properties.
3.Their excellent durability reduces the need for frequent replacement and extends their service life.

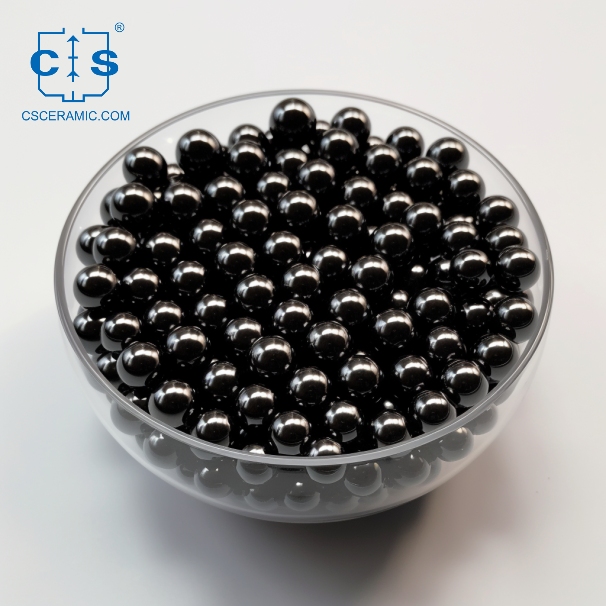

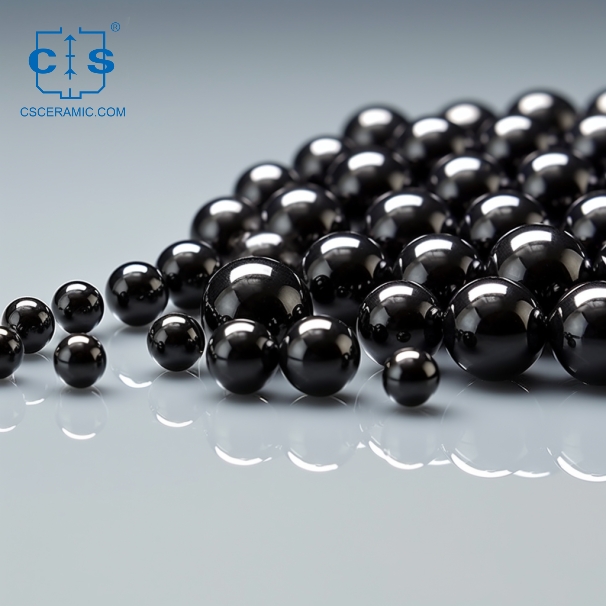

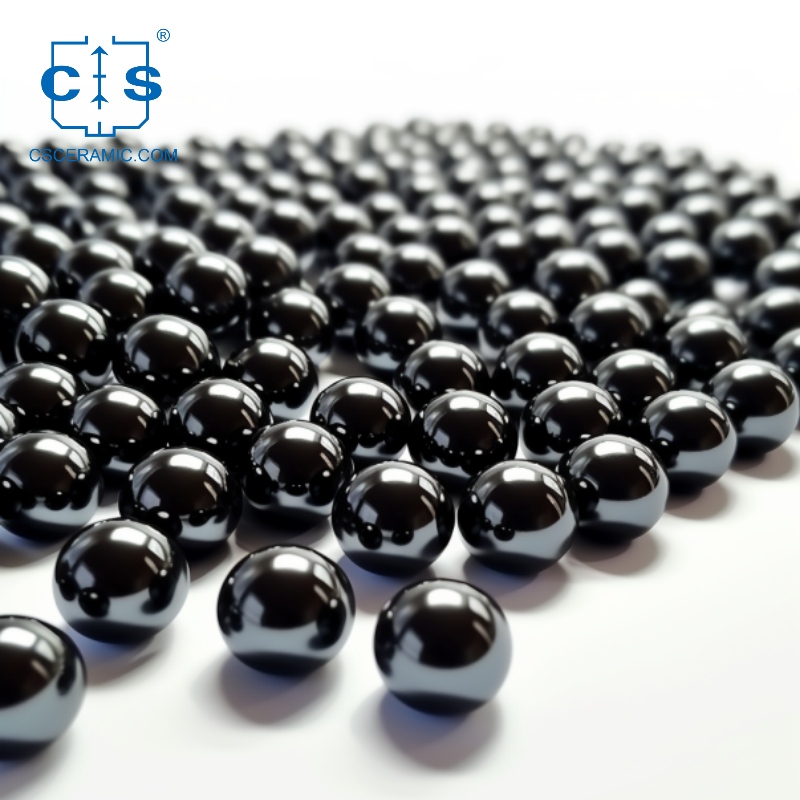

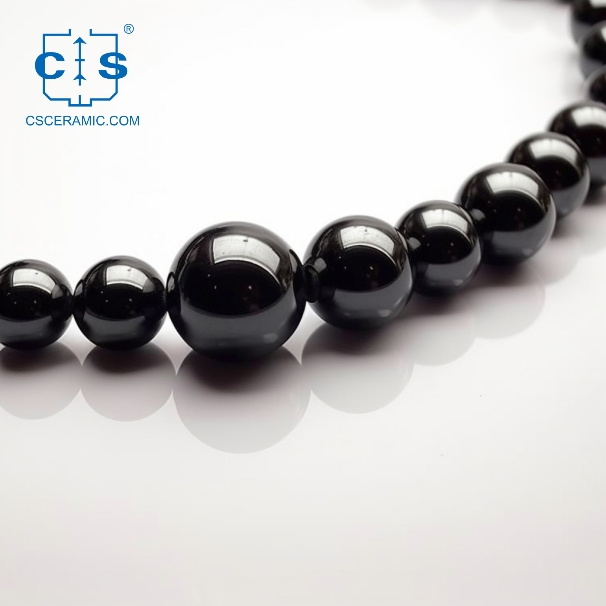

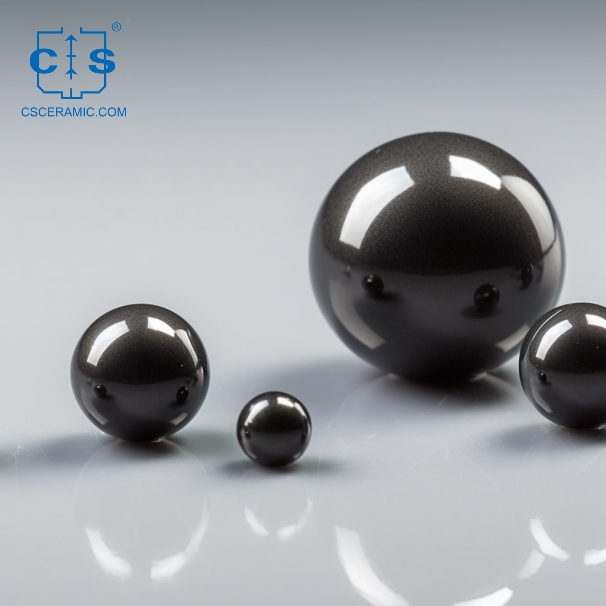

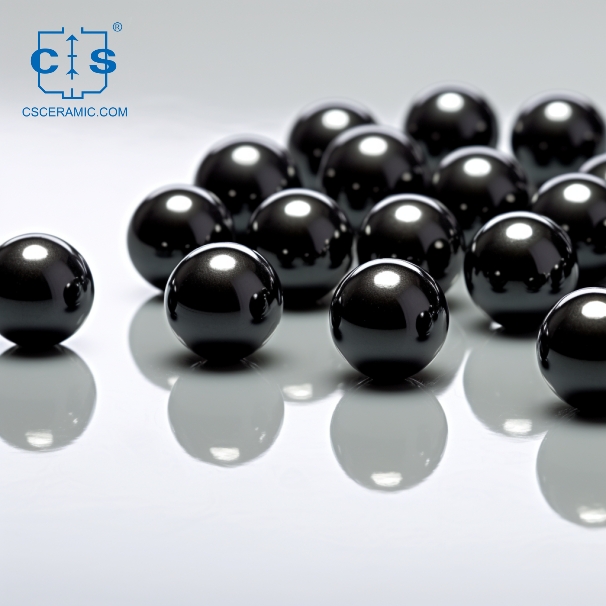

Silicon Nitride Grinding Ball
Item No.
Diameter(mm)
CS-NN1-001
0.1
CS-NN2-002
0.2
CS-NN3-003
0.3-0.4
CS-NN4-004
0.4-0.6
CS-NN6-005
0.6-0.8
CS-NN8-006
0.8-1.0
CS-NN10-007
1.0-1.2
CS-NN12-008
1.2-1.4
CS-NN14-009
1.4-1.6
CS-NN16-010
1.6-1.8
CS-NN18-011
1.8-2.0
CS-NN20-012
2.0-2.2
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry.
1.Ceramics Manufacturing: In the production of ceramic materials, silicon nitride grinding balls are utilized to finely grind raw materials, ensuring uniform particle size distribution and enhancing the sintering process for improved ceramic properties.
2.Mineral Processing: Silicon nitride grinding balls are employed in mineral processing operations to grind ores and minerals to finer particle sizes. This aids in liberating valuable minerals from the ore matrix and facilitating downstream separation processes.
3.Advanced Electronics: In electronics manufacturing, silicon nitride grinding balls are used for precision grinding of semiconductor materials and components. Their electrical insulating properties prevent unwanted conductivity, ensuring the integrity of electronic devices.
4.Metallurgical Applications: Silicon nitride grinding balls are employed in metallurgical processes to grind metal powders and achieve desired particle sizes for powder metallurgy, additive manufacturing, and other metalworking applications.
5.Advanced Ceramics and Composites: Industries working with advanced ceramics and composites utilize silicon nitride grinding balls to achieve precise shaping and sizing of these high-performance materials, crucial for aerospace, defense, and other advanced applications.
Specific Gravity | Moh's Hardness | Vickers Hardness | Crushing Strength | Fracture Toughness | Elastic Modulus |
>3.1kg/dm3 | 9.5 | >1600kg/mm2 | >140gf(2mm) | >7MPa.m½ | >300Gpa½ |
Q1: What are silicon nitride grinding balls?
Silicon nitride grinding balls are ceramic spheres made from silicon nitride material.They are used as grinding media in various industrial processes to finely grind and process materials.
Q2: How do silicon nitride grinding balls contribute to energy efficiency?
Despite their high hardness, silicon nitride grinding balls have a relatively low density. This feature reduces the impact of weight on the grinding equipment, improves energy efficiency, and reduces mechanical wear.
Q3: Are silicon nitride grinding balls environmentally friendly?
Yes, silicon nitride grinding balls are environmentally friendly. They are made of non-toxic materials.
Q4: Can silicon nitride grinding balls be customized for specific applications?
Yes, silicon nitride grinding balls can be customized to meet specific size, shape, and composition requirements for different industrial applications.
Q5: How long do silicon nitride grinding balls typically last?
Silicon nitride grinding balls have an extended service life due to their wear resistance. The exact service life depends on factors such as grinding conditions, material hardness, and frequency of use.
1. Wear Protective Gear: Before handling the grinding balls, wear appropriate personal protective equipment such as gloves and safety goggles to prevent skin contact and eye irritation.
2. Remove Residue: If there are visible residues on the grinding balls, gently remove them using a soft brush or cloth. Avoid using abrasive materials that could scratch the surface.
3. Rinse with Solvent: For thorough cleaning, immerse the grinding balls in a suitable solvent or cleaning solution.Allow the grinding balls to soak for a few minutes to loosen any adhered particles.
4. Agitate Gently: Gently agitate the solution to help dislodge any particles or contaminants from the surface of the grinding balls.
5. Rinse with Distilled Water: After cleaning in the solvent, rinse the grinding balls with distilled water to remove any residual solvent or cleaning solution.
6. Dry Thoroughly: Place the cleaned grinding balls on a clean surface or in a container lined with a lint-free cloth to air dry.
1. Visual Inspection:Examine the surface of the grinding balls for cracks, chips, or any visible defects.Check for irregularities in shape or surface texture that might affect their performance.
2. Dimensional Inspection:Measurement the dimensions of the grinding balls to check for accuracy.Ensure that the dimensions are within the specified tolerances.
3. Hardness Testing:Perform hardness tests using a suitable hardness tester to verify the hardness of the grinding balls.Compare the measured hardness values with the expected range for silicon nitride material.
4. Wear Resistance Assessment:Subject the grinding balls to wear tests by simulating grinding conditions or using accelerated wear tests.Monitor the wear rate and observe any signs of excessive wear or degradation.
5. Electrical Insulation Test:If electrical insulation is important for your application, conduct a simple electrical insulation test by checking for conductivity.Verify that the grinding balls exhibit the expected insulating properties.
