Read Moreitem no. :
CS-CC-XP00199.5% 99.7% 99%
Material : Alumina ceramic
Shape : OEM

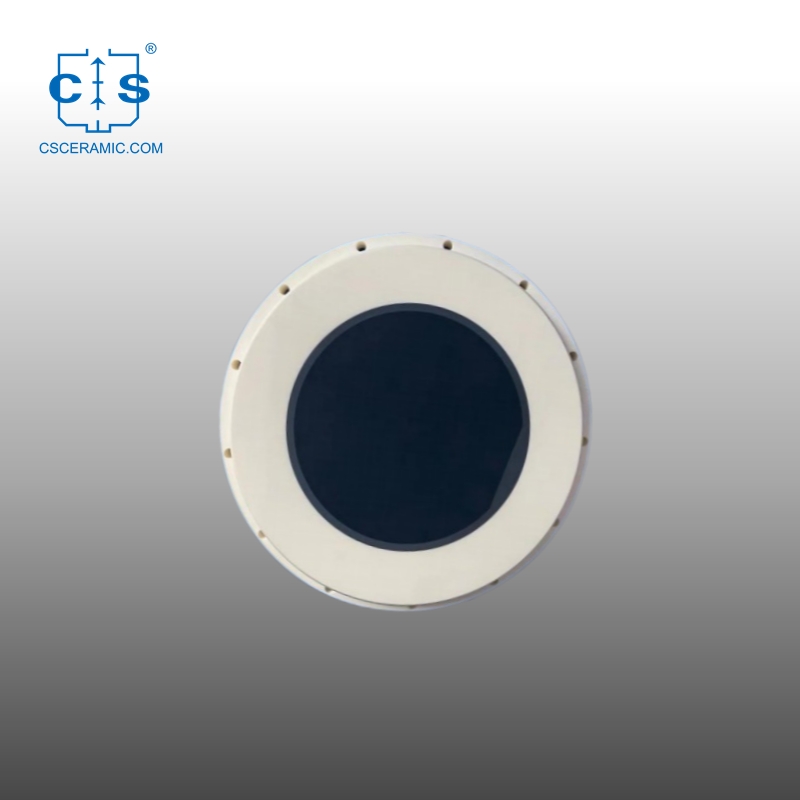

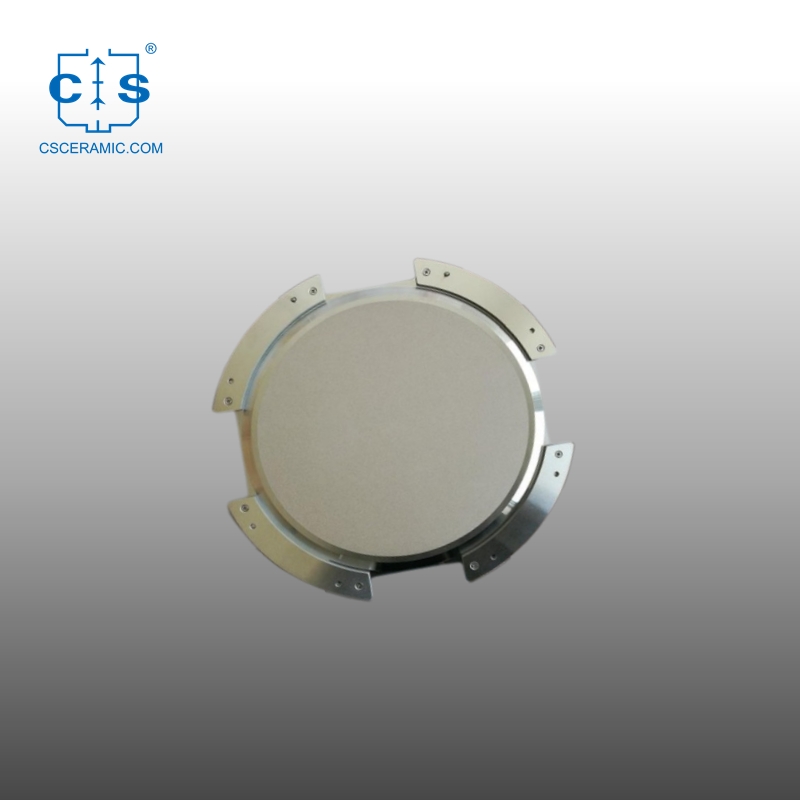

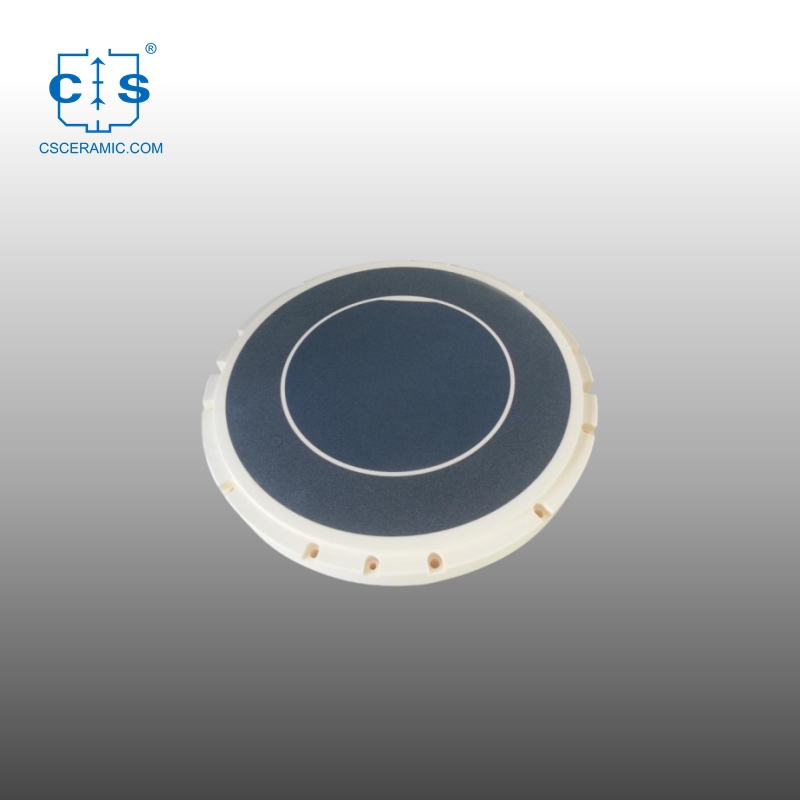

1. Porous ceramic materials have a consistent and evenly distributed porosity, ensuring that the vacuum force is uniformly applied across the entire surface of the chuck.
2. Porous ceramic vacuum chucks can be manufactured with different levels of porosity, allowing users to tailor the vacuum force according to the specific requirements of the workpiece.
3. The porous nature of the ceramic vacuum chuck allows for a larger contact area between the chuck and the workpiece. This leads to a lower pressure per unit area, reducing the risk of surface damage, imprints, or marks on delicate materials.
4. Porous ceramic materials are inherently less prone to contamination buildup due to their open structure. This property is especially advantageous in cleanroom environments or applications where contamination could compromise the quality of the finished product.
5. During machining processes that generate heat, such as grinding or laser cutting, the porous ceramic vacuum chuck can aid in dissipating the heat. This helps to reduce the likelihood of workpiece warping due to temperature-induced stress.
6. The uniform vacuum distribution provided by the porous ceramic chuck reduces the need for excessive clamping force. As a result, there is a reduced risk of leaving visible clamping marks or indentations on the workpiece's surface.
7. Porous ceramic vacuum chucks require relatively low energy consumption compared to some other clamping or holding methods, making them a more energy-efficient option for various manufacturing and processing operations.
1. Porous ceramic vacuum chucks have porous ceramic surfaces.
2. Their uniform porosity ensures a consistent vacuum distribution throughout the entire workpiece, reducing the risk of deformation, while firmly fixing fragile materials.
3. Their non magnetic and chemical resistance ensure compatibility with various materials.
4. Available in various sizes and shapes.The adjustable porosity levels allow for precise control over the grip strength, making it adaptable to various workpieces.
Size: 4 Inches, 6 Inches, 8 Inches, 12 Inches.
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
1. Precision Machining and Grinding: Porous ceramic vacuum chucks are used in precision machining and grinding processes to securely hold delicate and small workpieces such as optical lenses, microcomponents, and intricate mechanical parts. The uniform vacuum distribution prevents distortion or damage during high-precision operations.
2. Electronics Manufacturing: In electronics manufacturing, porous ceramic vacuum chucks are employed for tasks like semiconductor wafer dicing, printed circuit board (PCB) engraving, and surface-mount technology (SMT) assembly.
3. Optics Fabrication: In the production of optical components like lenses, prisms, and mirrors, porous ceramic vacuum chucks offer a gentle and reliable holding method. The even vacuum distribution ensures accurate grinding, polishing, and coating processes without compromising the optical quality.
4. Aerospace and Aircraft Components: They are employed in the aerospace industry to hold precision-engineered components during machining, milling, and drilling operations.
5. Ceramic and Composite Material Processing: When working with ceramics, composites, or advanced materials, porous ceramic vacuum chucks provide a stable and controlled hold during cutting, grinding, and shaping processes.
6. Lab-on-a-Chip and Biotechnology: They are used in lab-on-a-chip devices and biotechnology applications to securely hold microfluidic devices, biosensors, and diagnostic chips. Their stable grip and low-contamination properties are vital for maintaining sample integrity.
Material Properties of AIN Ceramic | ||||||
Property Sort | Characteristic | Unit | Property Index | |||
AN170 | AN200 | AN220 | ||||
Basic Property | Color | - | Grey | Grey | Beige | |
Water absorption | % | 0 | 0 | 0 | ||
Volume density | g/cm3 | ≥3.30 | ≥3.30 | ≥3.26 | ||
Surface roughness | um | 0.1~0.6 | 0.1~0.6 | 0.1~0.6 | ||
Camber | (length ‰) | ≤2‰ | ≤2‰ | ≤2‰ | ||
Thermal Property | Thermal conductivity (20℃) | W/m.k | ≥170 | ≥200 | ≥220 | |
Coefficient of thermal expansion | (20℃~300℃) | (*10-6/℃) | 4.6 | 4.6 | 4.5 | |
(40℃~800℃) | 5.2 | 5.2 | 5.2 | |||
Mechanical Property | Bending strength | MPa | ≥450 | ≥300 | ≥200 | |
Modulus strength | GPa | 320 | 310 | 310 | ||
Moh's hardness | - | 8 | 8 | 8 | ||
Electrical Property | Dielectric strengh | KV/mm | ≥17 | ≥16 | ≥15 | |
Volume resistivity | Ω.cm | ≥1014 | ≥1014 | ≥1013 | ||
Dielectric constant | - | 9 | 8.6 | 8.5 | ||
Dielectric loss | *10-4 | 2.98 | 2 | 2 |
Q1. What is a porous ceramic vacuum chuck?
A porous ceramic vacuum chuck is a specialized workpiece clamping device used in various industries to firmly hold workpieces during mechanical processing, grinding, and other processes.
Q2. How does a porous ceramic vacuum chuck work?
A porous ceramic vacuum chuck utilizes the principle of vacuum suction to hold a workpiece in place. The uniform porosity ensures even vacuum distribution and prevents distortion or damage to the workpiece.
Q3. Can the porosity of a porous ceramic vacuum chuck be adjusted?
Yes, the porosity of a porous ceramic vacuum chuck can often be adjusted or customized based on the specific requirements of the application.
Q4. Can porous ceramic vacuum chucks prevent surface damage on delicate materials?
Yes, the uniform vacuum distribution and reduced clamping force of porous ceramic vacuum chucks help minimize the risk of surface damage on delicate or sensitive materials.
1. Visual Inspection: Begin by visually inspecting the vacuum chuck for any visible signs of porosity. Porous ceramic chucks typically have a distinctive porous or perforated surface. Look for a regular pattern of small holes or pores across the surface.
2. Measurement size: Measure the diameter, height, and other detailed dimensions of the chuck to check accuracy.
3. Resistance and Stability: Verify the chuck's resistance to chemicals, high temperatures, and other relevant environmental factors. A porous ceramic vacuum chuck should be able to withstand the conditions associated with the application without compromising its performance.
4. Testing and Experimentation: If possible, conduct testing with sample workpieces. Attach a workpiece to the vacuum chuck and assess its stability during simulated machining or processing operations. Evaluate the evenness of the vacuum distribution and the chuck's ability to securely hold the workpiece.
